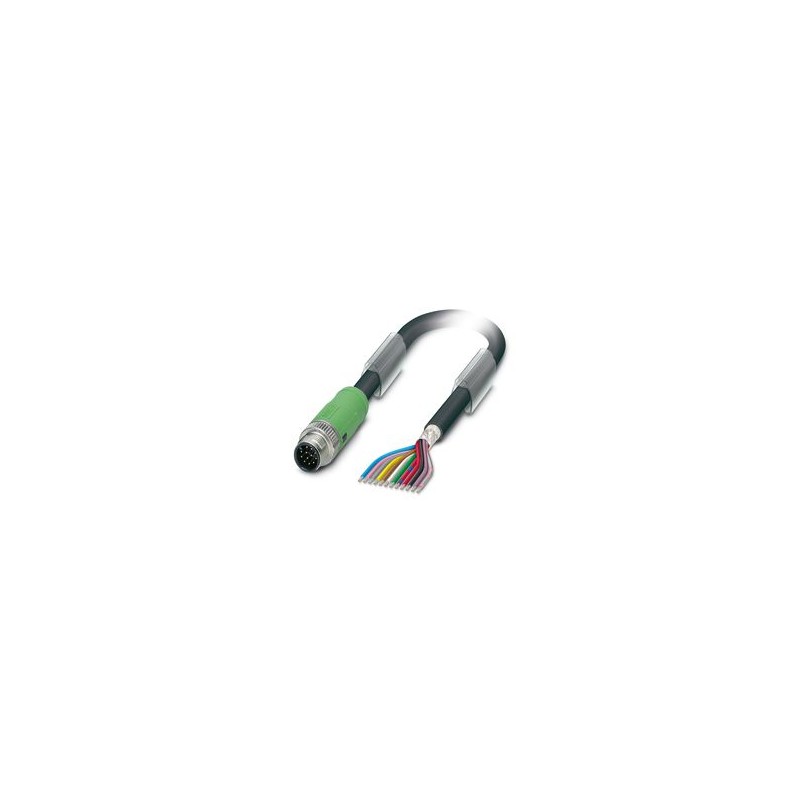

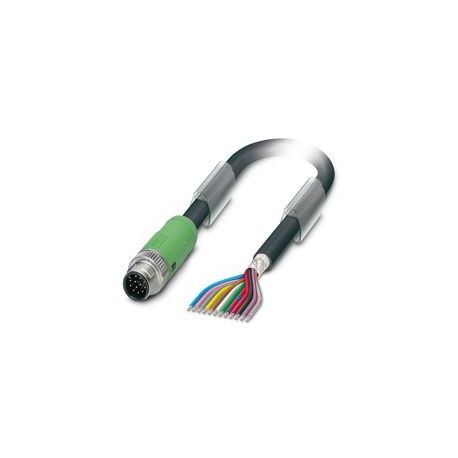

SAC-12P-MS/ 9,0-35T SH SCO 1565344 PHOENIX CONTACT Sensor/Actuator Cable, 12-Pole, M12 SPEEDCON Straight Con..
SAC-12P-MS/ 9,0-35T SH SCO
1565344
PHOENIX_CONTACT
25
Sensor/Actuator Cable, 12-Pole, M12 SPEEDCON Straight Connector, Coding: A, To Free Cable End
Cable for sensors/actuators
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Sensor/Actuator Cables |
| Number of poles | 12 |
| application | Standard |
| Number of Cable Outlets | 1 |
| Codification | to |
| Insulation Properties | |
| Surge Category | Ii |
| Degree of pollution | 3 |
| Flammability class according to UL 94 | V0 |
| Grip body material | Fire-resistant, self-extinguishing TPU |
| Contact material | CuZn |
| Material: Contact Surface | Ni/AU |
| Contact Support Material | AP 6.6 |
| Screw connection material | Zinc die-cast iron, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| 30 V DC | |
| Nominal Current IN | 1.5 A |
| Protection Circuit | Unplugged |
| Status Indication | No |
| Available Status Indication | No |
| Connection 1 | |
| Construction | M12 SPEEDCON Straight Connector |
| Locking system | SPEEDCON |
| Encoding Type | to |
| Connection 2 | |
| Construction | Free Cable End |
| PUR/Green PVC Twisted Pair [35T] | |
| Dimension Scheme |  |
| Shielded | Yes |
| UL AWM Style | 20233 / 1061 (80°C/300V) |
| Cable Weight | 87 kg/km |
| Cable type | PUR/Green PVC Braided Pair |
| Abbreviation | LSPYwC11Y |
| Cable Type (abbreviation) | 35T |
| Cable Outer Diameter | 8.5 mm ±0.2 mm |
| Outer Wrap, Material | PUR |
| Outer Wrap, Color | black RAL 9005 |
| Material: Inner Wrap | PVC |
| Conductive Material | Tinned Cu Conductor |
| Conductor Construction Signal Cable | 18x 0.10 mm |
| AWG Signal Line | 26 |
| Line Section | 12x 0.14 mm² (signal conductor) |
| Material: Conductor Insulation | PVC |
| Conductor diameter incl. insulation | 1 mm ±0.05 mm (signal conductor) |
| Single Driver, Color | white-brown, green-yellow, grey-pink, blue-red, black-violet, grey/pink-red/blue |
| Pair wiring | 2 conductors as pair |
| Total cabling | 6 pairs round filling as core |
| Screening | Tinned Copper Wire Mesh |
| Visual Screen Cover | 85 % |
| Nominal Voltage Cable | 42 V AC |
| Test Voltage Cable | 1500 V AC |
| Line Resistance | ≤ 142 Ω/km (at 20°C) |
| Line Insulation Resistance | ≥ 10 MΩ*km (at 20 °C) |
| Minimum bending radius, fixed | 5 x D |
| Minimum bending radius, flexibly positioned | 10 x D |
| Number of bending cycles | 2000000 |
| Bending radius | 85 mm |
| Advance path | 10 m |
| Feed rate | 3 m/s |
| Acceleration | 10 m/s² |
| Oil Resistance | according to DIN EN 60811-2-1 |
| Flame Resistance | according to DIN EN 60332-1-2 |
| according to VW-1 | |
| Other resistances | resistant to hydrolysis and microbes according to EN 50396 |
| Special Features | suitable for energy chains |
| Ambient Temperature (Service) | -5 °C ... 80 °C (Cable, movable arrangement) |
| -40 °C ... 80°C (cable, fixed arrangement) | |
| Environmental conditions | |
| Protection Index | IP65 |
| IP68 | |
| Ambient Temperature (Service) | -25 °C ... 85°C (male/female) |
| -40 °C ... 80°C (cable, fixed arrangement) | |
| -5 °C ... 80 °C (Cable, movable arrangement) | |
| Denomination of standard | M12 plug-in connector |
| Rules/Provisions | IEC 61076-2-101 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 12 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuZn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated current In (EF008250) | 1.5 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP65 |
