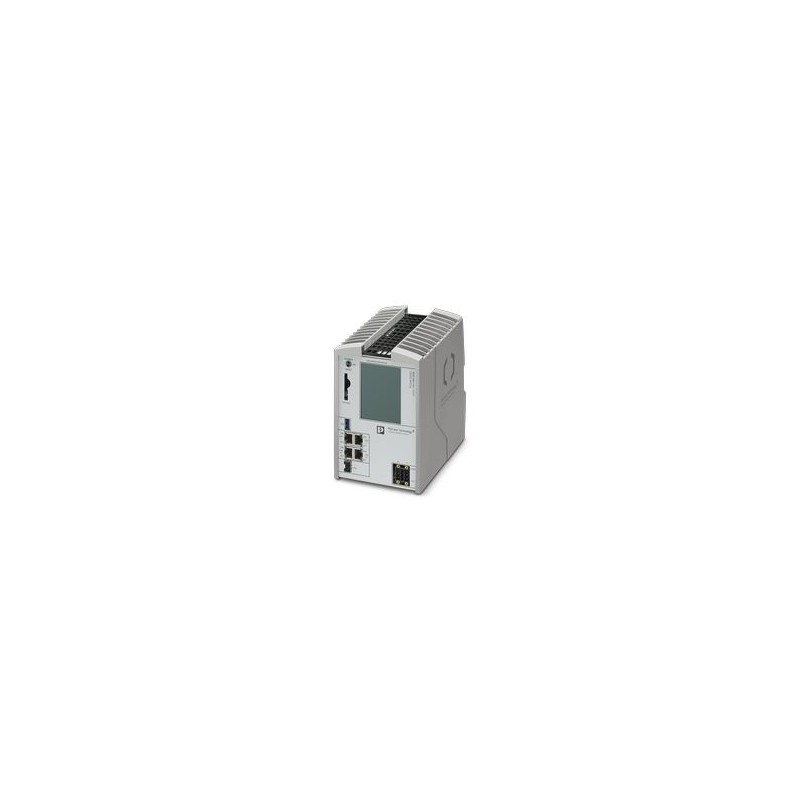

RFC 4072R 1136419 PHOENIX CONTACT High availability PLCnext Controller with redundancy functionality
RFC 4072R
1136419
PHOENIX_CONTACT
High availability PLCnext Controller with redundancy functionality
PLC's > PLC CPU-module
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Product properties
| Type | Stand-Alone |
| Product type | Controller |
| Product family | PLCnext Control |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Pollution degree | 2 (when installed in a control cabinet or housing with IP54 degree of protection or higher) |
| Display | |
| Diagnostics display | yes |
System properties
| Processor | Intel®Core™ i5-6300U 2x 2.4 GHz (Standard) |
| Flash memory | 100 Mbyte (internal flash memory) |
| SD card from Phoenix Contact (for external flash memory, see accessories) | |
| Retentive data storage | 2 Mbyte |
| IEC 61131 runtime system | |
| Program memory | 16 Mbyte |
| Data storage system | 32 Mbyte |
| PROFINET | |
| Device function | PROFINET-Controller |
| Number of supported devices | max. 256 |
| Vendor ID | 00B0hex/ 176dez |
| Function | |
| Diagnostics display | yes |
| Controller redundancy | yes |
| Safety function | No |
| Functionality | |
| Programming languages supported | Instruction list (IL) |
| Symbolic flowchart (SFC) | |
| Ladder diagram (LD) | |
| Function block diagram (FBD) | |
| Structured text (ST) | |
| C++ | |
| C# | |
| Java | |
| Python | |
| Simulink | |
| System requirements | |
| Engineering tool | PLCnext Engineer |
| Eclipse | |
| Visual Studio | |
| MATLAB®Simulink® | |
| Application interface | OPC UA |
| OPC UA Pub/Sub | |
Electrical properties
| Power consumption | typ. 25 W (Without fan module) |
| max. 35 W (With fan module) | |
| Transmission medium | Copper |
| FO | |
| Supply | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including ripple (3.6 VPP)) |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Real-time clock | |
| Realtime clock | integrated (capacitive buffering) |
| Description realtime clock | 1.73 s/day = 20 ppm at 25 °C |
| Potentials | |
| Protective circuit | Surge protection of the supply voltage; electronic |
| Polarity reversal protection of the supply voltage; electronic | |
Connection data
| Cross section AWG | (converted acc. to IEC) |
| COMBICON connector | |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Interfaces
| Web server | yes |
| USB | |
| Number of interfaces | 1 |
| Connection method | USB type A, socket |
| Ethernet | |
| Bus system | RJ45 |
| Number of interfaces | 4 |
| Connection method | RJ45 jack |
| Note on the connection method | Auto negotiation and auto crossing, auto polarity exchange |
| Transmission speed | 10/100/1000 Mbps (LAN 1/LAN 2, half duplex or full duplex) |
| 10/100 Mbps (LAN3.1/LAN3.2 (internally switched), half duplex or full duplex) | |
Dimensions
| External dimensions | |
| Width / Height / Depth | 122 mm / 182 mm / 173 mm (without fan module) |
| 122 mm / 220 mm / 173 mm (With fan module) | |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 60 °C up to 2000 m above mean sea level (recommended: above 50°C with fan module) |
| 0 °C ... 55 °C 2000 m ... 3000 m above mean sea level (With fan module only) | |
| 0 °C ... 50 °C 3000 m ... 4000 m above mean sea level (With fan module only) | |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Shock (operation) | 20g (in accordance with EN 60068-2-27/IEC 60068-2-27) |
| Vibration (operation) | 1g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Air pressure (operation) | 60 kPa ... 108 kPa (up to 4000 m above mean sea level) |
| Air pressure (storage/transport) | 58 kPa ... 108 kPa (up to 4500 m above mean sea level) |
| Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Use of the device in these ambient conditions is prohibited. |
EMC data
| Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fieldsEN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst)EN 61000-4-4/IEC 61000-4-4 Criterion B; Supply lines: 2 kV; Signal/data lines: 2 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge)EN 61000-4-5/IEC 61000-4-5 Criterion B, supply lines: 0.5 kV, signal/data cables: 1 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interferenceEN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V | |
| Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 | |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 18 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Model (EF000010) | Compact |
| Number of HW-interfaces industrial Ethernet (EF003020) | 4 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of digital inputs (EF001992) | 0 |
| Number of digital outputs (EF001993) | 0 |
| With optical interface (EF003028) | Yes |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Redundancy (EF003156) | Yes |
| Memory size (EF002997) | 16384 kByte |
| Additional program memory possible (EF003029) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 122 mm |
| Height (EF000040) | 182 mm |
| Depth (EF000049) | 173 mm |
