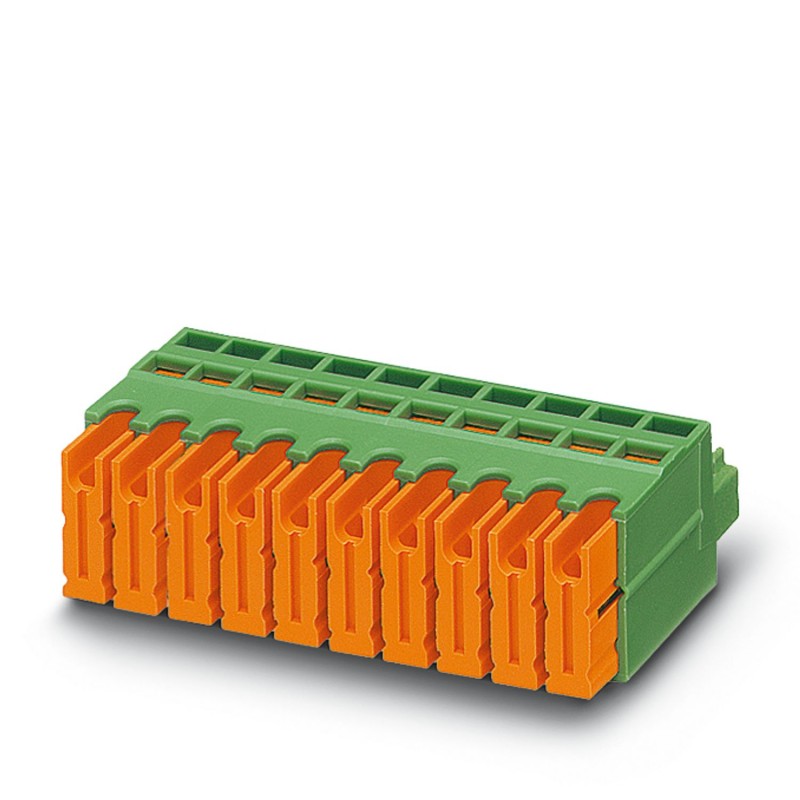

QC 0,5/ 5-ST-3,81 BD2:1-5 1028940 PHOENIX CONTACT Connector for printed circuit board, nominal current: 6 A,..
QC 0,5/ 5-ST-3,81 BD2:1-5
1028940
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Connector for printed circuit board, nominal current: 6 A, number of poles: 5, pitch: 3,81 mm, connection type: displacement Connection, color: green, surface contacts: Tin
Connector for printed circuit board, nominal section: 0.5 mm², color: green, nominal current: 6 A, nominal voltage (III/2): 200 V, contact surface: Tin, contact type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: QC 0.5/.. -ST, pitch: 3.81 mm, connection type: Offset connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON MC 1.5, lock: without, fixing type: without, packaging type: boxed
PCB connector, Nominal cross-section: 0.5 mm2, Color: green, Rated current: 6 A, Rated voltage (III/2): 200 V, Contact surface: Sn, Contact type: Socket, Number of potentials: 5, Number of rows: 1, Number of poles: 5, Number of connectors: 5, Product family: QC 0.5/.. -ST, Pitch: 3.81 mm, Connection type: cutting connection, Connection direction conductor/board: 0 °, Plug-in system: COMBICON MC 1.5, Locking: without, Mounting type: without, Packaging type: packed in a carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | PCB Connectors |
| Product family | QC 0.5/.. -ST |
| Product Line | COMBICON Connectors XS |
| Number of poles | 5 |
| Grid dimension | 3.81 mm |
| Number of ports | 5 |
| Number of rows | 1 |
| Number of potentials | 5 |
| Data maintenance status | |
| Article revision | 00 |
| Nominal current IN | 6 A |
| Rated voltage UN | 200 V |
| Rated voltage (III/3) | 200 V |
| Rated Surge Voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 200 V |
| Rated Surge Voltage (III/2) | 4 kV |
| Rated voltage (II/2) | 400 V |
| Rated Surge Voltage (II/2) | 4 kV |
| Connection technology | |
| Design | Standard |
| Connector system | COMBICON MC 1.5 |
| Nominal cross-section | 0.5 mm² |
| Contact type | Socket |
| Locking | |
| Lock type | without |
| Mounting Flange | without |
| Conductor connection | |
| Connection type | Cutting connection |
| Connection direction conductor/circuit board | 0 ° |
| Flexible conductor cross-section | 0.34 mm² ... 0.5 mm² |
| Conductor cross-section AWG | 22 ... 20 |
| Material information - Contact | |
| Note | WEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Material Contact | Cu alloy |
| Surface finish | hot-dip tin-plated |
| Metal surface clamping point (top layer) | Tin (5 - 7 μm Sn) |
| Metal Surface Contact Area (Top Layer) | Tin (5 - 7 μm Sn) |
| Material specifications - Housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature of the ball pressure test according to EN 60695-10-2 | 125 °C |
| Material specifications - Actuator | |
| Color (Actuator) | orange (2003) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature of the ball pressure test according to EN 60695-10-2 | 125 °C |
| Dimensional drawing |  |
| Grid dimension | 3.81 mm |
| Width [w] | 19.84 mm |
| Height [h] | 12.9 mm |
| Length [l] | 26.8 mm |
| Mating and pulling forces | |
| Test Specification | DIN EN 60512-13-2:2006-11 |
| Result | Exam passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 8 N |
| Pulling force per pole approx. | 6 N |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Clearance and creepage distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 200 V |
| Rated Surge Voltage (III/3) | 4 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 3 mm |
| Minimum value of the creepage distance (III/3) | 3 mm |
| Rated insulation voltage (III/2) | 200 V |
| Rated Surge Voltage (III/2) | 4 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 3 mm |
| Minimum value of the creepage distance (III/2) | 3 mm |
| Rated insulation voltage (II/2) | 400 V |
| Rated Surge Voltage (II/2) | 4 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 3 mm |
| Minimum value of the creepage distance (II/2) | 3 mm |
| Packaging type | packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 5 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 200 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.34 mm² |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
