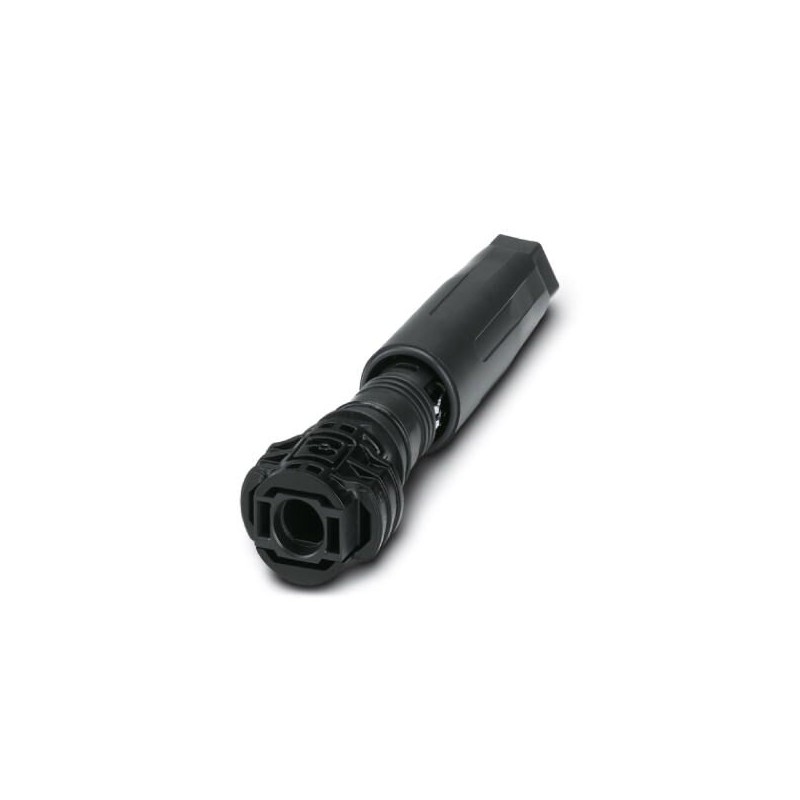

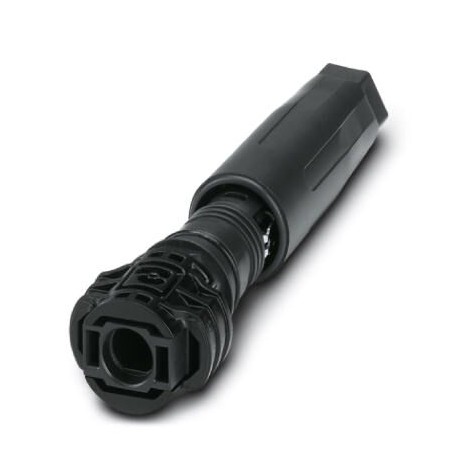

PV-C4M-S 2,5-6 (-) 1020775 PHOENIX CONTACT Connector PV-C4M-S 2,5-6 (-) 1020775
PV-C4M-S 2,5-6 (-)
1020775
PHOENIX_CONTACT
50
Connector - PV-C4M-S 2,5-6 (-) - 1020775
Connector, Product family: Sunclix, housing material: PPE, color: black, number of poles: 1, min. conductor cross-section: 2.5 mm², max. conductor cross-section: 6 mm², nominal voltage: 1500 V DC, assigned current: 35 A, Connection type: Spring-loaded, Contact connection type: Male, min. cable diameter: 5 mm, max. cable diameter: 8 mm
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Photovoltaic connector, nominal current: 35 A, nom. voltage: 1500 V, connection method: Spring-cage, color: black. can only be released using a tool
Key Commercial Data
| Orderkey | 1020775 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626511283 |
| Custom tariff number | 85359000 |
Dimensions
| External cable diameter | 5 mm ... 8 mm |
|---|
Ambient conditions
| Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
General
| Design | Pin |
|---|---|
| Tightening torque nut | 2 Nm ±0.1 Nm |
| Insertion force | 45 N ±10 N |
| Disconnect force | 250 N ±50 N (when locked) |
| Insertion/withdrawal cycles | 100 |
| Rated voltage | 1500 V |
| Nominal cross section | 6 mm² |
| Protection class | II |
Material
| Color | black |
|---|---|
| Insulating material | mPPE |
| Contact material | Cu |
| Contact surface material | Ag |
| Flammability rating according to UL 94 | V0 |
Connection data
| Connection method | Spring-cage |
|---|---|
| Connection capacity | 2.5 mm² ... 6 mm² |
| Contact resistance with connected conductor | 0.45 mΩ |
| Stripping length | 15 mm |
| Cable type | H1Z2Z2-K cable |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 8.0 | 27440102 |
|---|---|
| eCl@ss 9.0 | 27440102 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 1 |
| Number of control contacts (EF012217) | 0 |
| For cable outer diameter (EF009475) | 5 mm |
| Rated current In (EF008250) | 35 A |
| Ambient temperature (EF002386) | 85 °C |
| Rated voltage (EF000228) | 1500 V |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Spring clamp connection |
| Material of contact surface (EF004020) | Tin |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Min. number of insertion cycles (EF012212) | 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
