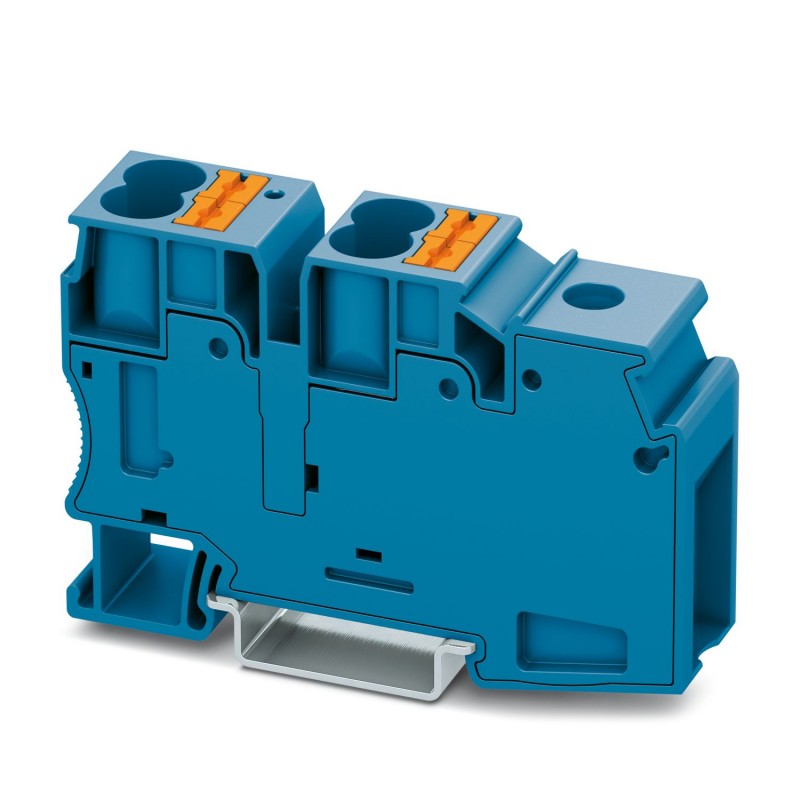

PTU 35/4X10 BU 3002370 PHOENIX CONTACT Potential collective terminal
PTU 35/4X10 BU
3002370
PHOENIX_CONTACT
25
Potential collective terminal
Collective potential terminal, nominal voltage: 1000 V, nominal current: 101 A, number of connections: 5, connection type: Screw connection, Sizing cross-section: 35 mm², cross-section: 1.5 mm² - 50 mm², Push-in connection, Sizing cross-section: 10 mm², cross-section: 0.5 mm² - 16 mm², mounting class: NS 35/7.5, NS 35/15, color: blue
Potential collective terminal, In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered., nom. voltage: 1000 V, nominal current: 57 A, Load contact, connection method: Push-in connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, Line contact, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 1.5 mm2 - 50 mm2, mounting: NS 35/7,5, NS 35/15, color: blue
Terminal blocks > Feed-through terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Notes on operation | In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered. |
| Product type | Potential distributor |
| Number of connections | 5 |
| Number of rows | 1 |
| Potentials | 1 |
| Data management status | |
| Article revision | 01 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 2.43 W |
| Number of connections per level | 5 |
| Load contact | |
| Stripping length | 18 mm ... 20 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² |
| Cross section AWG | 20 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 8 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 4 mm² |
| Nominal current | 57 A |
| Maximum load current | 57 A |
| Nominal voltage | 1000 V |
| Nominal cross section | 10 mm² |
| Line contact | |
| Screw thread | M6 |
| Tightening torque | 3.2 ... 3.7 Nm |
| Stripping length | 18 mm ... 20 mm |
| Internal cylindrical gage | B9 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 1.5 mm² ... 50 mm² |
| Cross section AWG | 14 ... 2 (converted acc. to IEC) |
| Conductor cross section flexible | 1.5 mm² ... 35 mm² |
| Conductor cross section, flexible [AWG] | 14 ... 2 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 35 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 35 mm² |
| 2 conductors with same cross section, solid | 1.5 mm² ... 16 mm² |
| 2 conductors with the same cross-section AWG rigid | 16 ... 6 (converted acc. to IEC) |
| 2 conductors with same cross section, flexible | 1.5 mm² ... 10 mm² |
| 2 conductors with the same cross-section AWG flexible | 16 ... 8 (converted acc. to IEC) |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 10 mm² |
| Nominal current | 101 A |
| Maximum load current | 101 A (The maximum load current must not be exceeded by the total current of all connected conductors.) |
| Nominal voltage | 1000 V |
| Nominal cross section | 35 mm² |
| Load contact Connection cross sections directly pluggable | |
| Conductor cross section rigid | 1 mm² ... 16 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 4 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 2.5 mm² ... 10 mm² |
| Width | 19.4 mm |
| Height | 79.9 mm |
| Depth on NS 35/7,5 | 50.3 mm |
| Depth on NS 35/15 | 57.8 mm |
| Color | blue (RAL 5015) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Mechanical data | |
| Open side panel | No |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection in acc. with standard | IEC 60947-7-1 |
| IEC 60947-7-1 |
| Mounting type | NS 35/7,5 |
| NS 35/15 |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 57 A |
| Rated voltage (EF000228) | 1000 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of levels (EF002659) | 1 |
| Number of clamp positions per level (EF002660) | 5 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 19.4 mm |
| Height (EF000040) | 79.9 mm |
| Depth (EF000049) | 50.3 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Blue |
