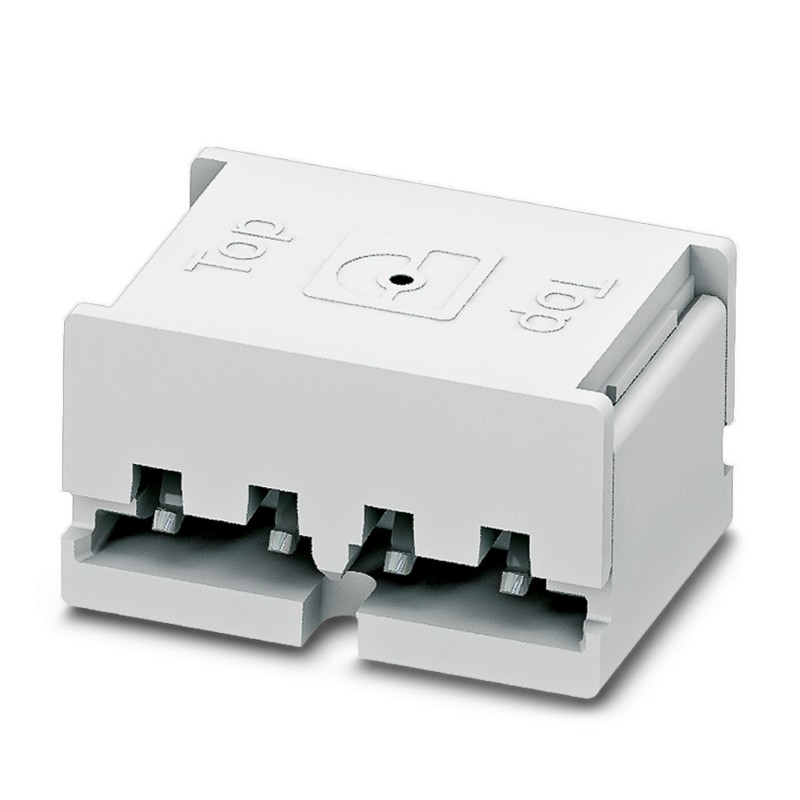

PTF 0,3/ 4-BB-10-H 1707563 PHOENIX CONTACT Printed-circuit board connector
PTF 0,3/ 4-BB-10-H
1707563
PHOENIX_CONTACT
25
Printed-circuit board connector
Direct connector for printed circuit board, nominal section: 0.34 mm², color: white, nominal voltage (III/2): 25 V, contact surface: Tin, contact connection type: Female, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: PTF 0.3/.. -BB-H, pitch: 2.4 mm, mounting: Direct plug-in connection technology, plug-in system: COMBICON PTF, packaging type: box-packed, For flexible printed circuit boards with a width of 10 mm and a permissible printed circuit board thickness in the contact range of 0.15 mm... 0.3 mm
PCB direct plug, nominal cross section: 0.34 mm2, color: white, rated voltage (III/2): 25 V, contact surface: Sn, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PTF 0,3/..-BB-H, pitch: 2.4 mm, mounting: Direct plug-in method, plug-in system: COMBICON PTF, type of packaging: packed in cardboard, For flexible PCBs with a width of 10 mm and a permissible PCB thickness in the contact zone of 0.15 mm ... 0.3 mm
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | PCB direct plug |
| Product family | PTF 0,3/..-BB-H |
| Product line | COMBICON Connectors Special |
| Number of positions | 4 |
| Pitch | 2.4 mm |
| Number of connections | 4 |
| Number of rows | 1 |
| Number of potentials | 4 |
| Data management status | |
| Article revision | 01 |
| Nominal voltage UN | < 25 V |
| Rated voltage (III/3) | 25 V |
| Rated voltage (III/2) | 25 V |
| Mounting type | Direct plug-in method |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
| Material data - housing | |
| Color (Housing) | white (9010) |
| Insulating material | PBT |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 275 |
| Flammability rating according to UL 94 | V0 |
| Dimensional drawing |  |
| Pitch | 2.4 mm |
| Width [w] | 11.2 mm |
| Height [h] | 4.8 mm |
| Length [l] | 8 mm |
| Temperature-rise test | |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Insulation resistance | |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Insulation resistance, neighboring positions | > 1 MΩ |
| Air clearances and creepage distances | |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Insulating material group | IIIa |
| Rated insulation voltage (III/3) | 25 V |
| Rated insulation voltage (III/2) | 25 V |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 500 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2000-10 |
| Temperature | 650 °C |
| Time of exposure | 30 s |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Type of packaging | packed in cardboard |
