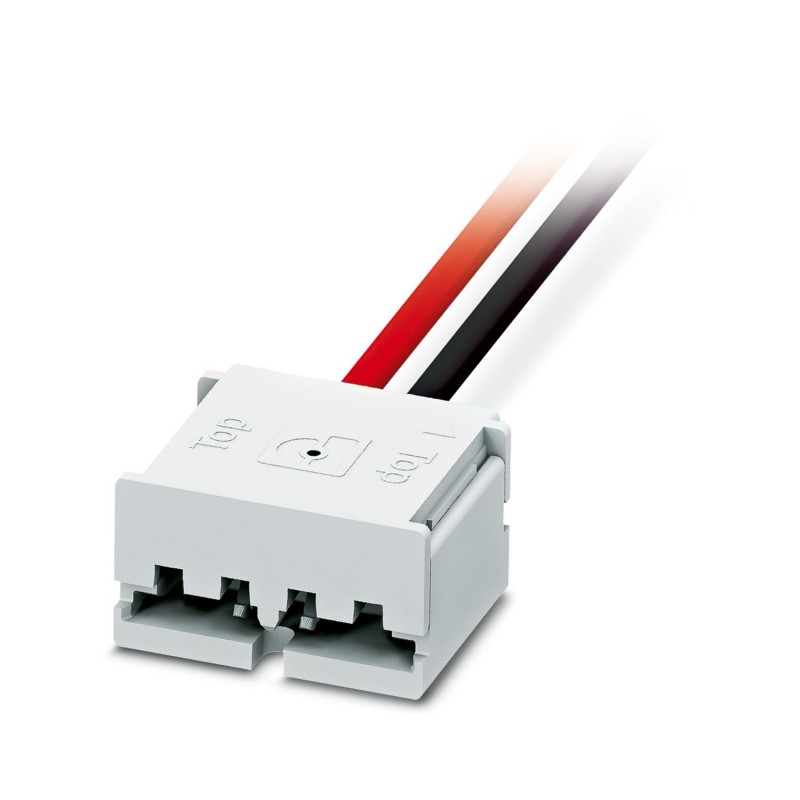

PTF 0,3/ 2-WB-8-H PC0140PL60 1715753 PHOENIX CONTACT Assembled PCB connectors
PTF 0,3/ 2-WB-8-H PC0140PL60
1715753
PHOENIX_CONTACT
20
Assembled PCB connectors
Ready-made printed circuit board connectors
Connectors > Accessories/spare parts for industrial connectors
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Assembled PCB connector |
| Product family | PTF 0,3/..-WB-H |
| Product line | COMBICON Connectors Special |
| Number of positions | 2 |
| Pitch | 1.90 mm |
| Number of connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Data management status | |
| Article revision | 00 |
| Nominal voltage UN | < 25 V |
| Rated voltage (III/3) | 25 V |
| Rated voltage (III/2) | 25 V |
| Mounting type | Direct plug-in method |
| Dimensional drawing |  |
| Pitch | 1.90 mm |
| Length [l] | 60.00 mm |
| Tensile strength of crimp connections | |
| Result | Test passed |
| Temperature-rise test | |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Insulation resistance | |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Insulation resistance, neighboring positions | > 1 MΩ |
| Air clearances and creepage distances | |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Insulating material group | IIIa |
| Rated insulation voltage (III/3) | 25 V |
| Rated insulation voltage (III/2) | 25 V |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 500 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2000-10 |
| Temperature | 650 °C |
| Time of exposure | 30 s |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Connection 1 | |
| Insulating material | PBT |
| CTI according to IEC 60112 | 275 |
| Type of packaging | packed in cardboard |
