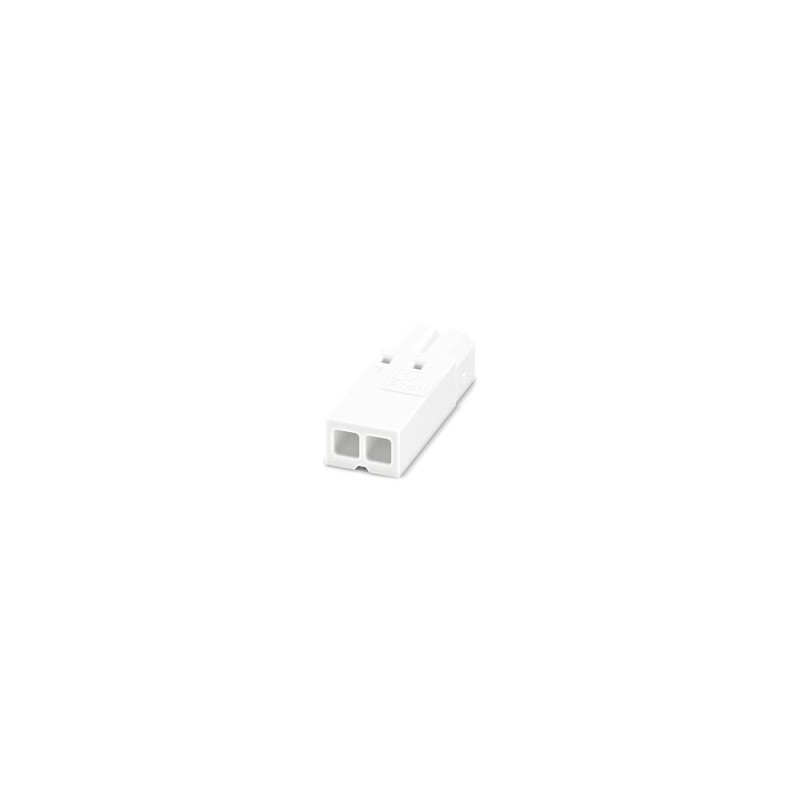

PTCM 0,5/ 2-P-2,5 WH 1269182 PHOENIX CONTACT Connector for printed circuit board, nominal section: 0.75 mm²,..
PTCM 0,5/ 2-P-2,5 WH
1269182
PHOENIX_CONTACT
250
Connector for printed circuit board, nominal section: 0.75 mm², color: white, nominal current: 6 A, nominal voltage (III/2): 160 V, contact connection type: Female, number of rows: 1, number of poles: 2, family of articles: PTCM 0.5/.. -P, pitch: 2.5 mm, connection type: Crimp connection, plug-in system: COMBICON PTSM, packaging type: boxed
PCB connector, nominal cross-section: 0.75 mm², colour: white, nominal current: 6 A, nominal voltage (III/2): 160 V, surface contacts: Tin, contact type: Female, number of rows: 1, number of poles: 2, article family: PTCM 0.5/.. -P, pitch: 2.5mm, connection type: Crimped connection, plug-in system: COMBICON PTSM, packaging type: boxed packaging
PCB connector, nominal cross-section: 0.75 mm2, colour: white, rated current: 6 A, dimensioning voltage (III/2): 160 V, contact surface: tin, contact connection type: Female, number of rows: 1, number of poles: 2, product series: PTCM 0.5/.. -P, pitch: 2.5 mm, connection type: Crimp connection, plug system: COMBICON PTSM, package type: packed in carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | COMBICON Connectors XS |
| Product Type | Printed circuit board connector |
| Product Family | PTCM 0.5/.. -P |
| No. of poles | 2 |
| Step | 2.5 mm |
| Number of rows | 1 |
| Rated Current IN | 6 A |
| Rated voltage UN | 160 V |
| Degree of pollution | 3 |
| Mass Resistivity | 3.2 mΩ |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 160 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 320 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
| Connection technology | |
| Connector system | COMBICON PTSM |
| Nominal cross-section | 0.75 mm² |
| Contact Connection Type | female |
| Conductor connection | |
| Link | Crimp Connection |
| Flexible conductor cross-section | 0.14 mm² ... 0.75 mm² (Maximum insulation outer diameter 1.9 mm) |
| Conductor cross-section AWG | 26 ... 18 (Maximum insulation outer diameter 1.9 mm) |
| Length of the section to be stripped | 4.1 mm ... 4.5 mm |
| Material information - case | |
| Color (Case) | White (9010) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Step | 2.5 mm |
| Width [w] | 5.8 mm |
| Height [h] | 3.9 mm |
| Length [l] | 16.2 mm |
| Tensile strength of crimp connections | |
| Result | Test passed |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.14 mm² / flexible / > 18 N |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 3 N |
| Tensile force per pole approx. | 2 N |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 2.95 kV |
| Mass Resistivity R1 | 3.2 mΩ |
| Mass Resistivity R2 | 3.4 mΩ |
| Manoeuvring cycles | 25 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 8 |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.5 mm |
| Rated Isolation Voltage (II/2) | 320 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 1.6 mm |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 2.5 mm |
| Modular spacing connections (EF006827) | 2.5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | White |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
