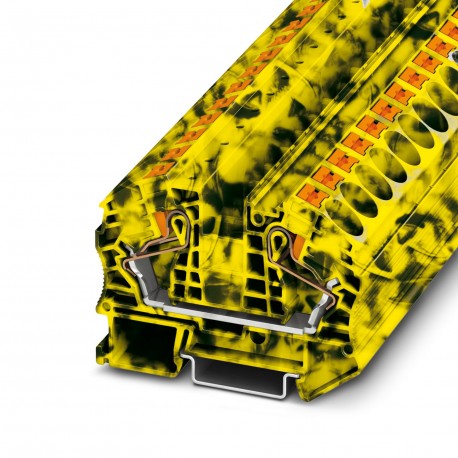

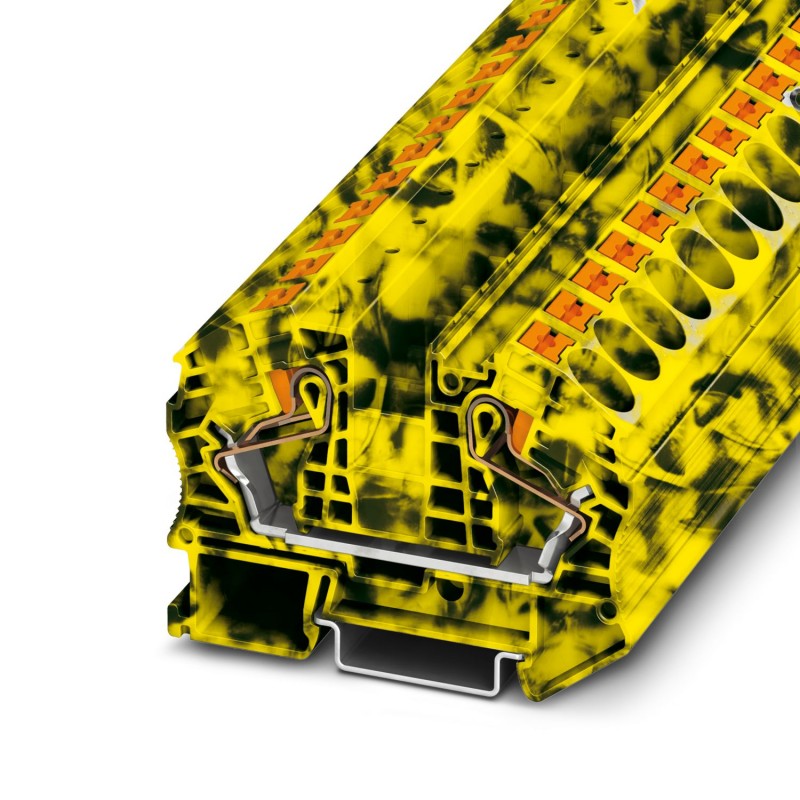

PT 16 N-FE 1077090 PHOENIX CONTACT Terminal step, rated voltage: 1000 V, nominal current: 76 A, Connection t..
PT 16 N-FE
1077090
PHOENIX_CONTACT
50
Terminal step, rated voltage: 1000 V, nominal current: 76 A, Connection type: Connection push-in connection, number of connections: 2, section: 0.5 mm2-25 mm2, AWG: 20-4, width: 12,2 mm, color: black/yellow, type of mounting: NS 35/7,5, NS 35/15
Feed-through terminal, nominal voltage: 1000 V, nominal current: 76 A, number of connections: 2, connection type: Push-in connection, Dimensioning cross-section: 16 mm², cross-section: 0.5 mm² - 25 mm², mounting class: NS 35/7.5, NS 35/15, color: black/yellow
Terminal blocks > Feed-through terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Item Properties
| Product Type | Pass-through terminal |
| Field of Employment | Railway industry |
| Machine building | |
| Plant construction | |
| Number of connections | 2 |
| Number of rows | 1 |
| Data Maintenance Status | |
| Article Review | 06 |
| Insulation Properties | |
| Surge Category | Iii |
| Degree of pollution | 3 |
Electrical Properties
| Dimensioning Transient Voltage | 8 kV |
| Maximum Dissipated Power with Nominal Condition | 2.43 W |
Connection data
| Number of connections per floor | 2 |
| Nominal Section | 16 mm² |
| Peel Length | 18 mm ... 20 mm |
| Male Gauge | A7 |
| Standard-compliant connection | IEC 60947-7-1 |
| Rigid conductor section | 0.5 mm² ... 25 mm² |
| AWG Conductor Section | 20 ... 4 (Converted according to IEC) |
| Flexible conductor section | 0.5 mm² ... 25 mm² |
| Flexible Wire Section [AWG] | 20 ... 4 (Converted according to IEC) |
| Flexible cable section (toe cap without plastic sleeve) | 0.5 mm² ... 16 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 0.5 mm² ... 16 mm² |
| 2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve | 1.5 mm² ... 4 mm² |
| Nominal current | 76 A |
| Maximum Charging Current | 85 A (with rigid 25 mm² cable cross-section) |
| Nominal voltage | 1000 V |
| Nominal Section | 16 mm² |
| Directly pluggable connection section | |
| Rigid conductor section | 2.5 mm² ... 25 mm² |
| Flexible cable section (toe cap without plastic sleeve) | 2.5 mm² ... 16 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 2.5 mm² ... 16 mm² |
Ex Data
| Dimensioning data (ATEX/IECEx) | |
| Marked | II 2 GD Ex eb IIC Gb |
| Operating Temperature Range (1) | -60 °C ... 85 °C |
| Operating Temperature Range (2) | -40 °C ... 110 °C |
| Ex-certified accessories | 3212060 D-PT 16 N |
| 1206612 SZF 3-1.0X5.5 | |
| 3022276 CLIPFIX 35-5 | |
| 3022218 CLIPFIX 35 | |
| List of bridges | Plug-in Bridge / FBS 2-12 / 3005950 |
| Bridge data | 60.5 A / 16 mm² |
| Temperature Increase Ex | 40 K (65.5 A / 16 mm²) |
| Nominal voltage | 550 V |
| for bridge bridging | 550 V |
| Sizing Insulation Voltage | 500 V |
| analogical | (permanent) |
| Ex Floor Overview | |
| Rated Current | 65.5 A |
| Maximum Charging Current | 78 A |
| Contact resistance | 0.31 mΩ |
| Connection Data Ex Overview | |
| Nominal Section | 16 mm² |
| AWG Sizing Section | 6 |
| Connectability, Rigid Cable | 0.5 mm² ... 25 mm² |
| AWG Connection Capability | 20 ... 4 |
| Connectability, flexible cable | 0.5 mm² ... 16 mm² |
| AWG Connection Capability | 20 ... 6 |
Dimensions
| Width | 12.2 mm |
| Lid Width | 2.2 mm |
| Height | 75.4 mm |
| Depth at NS 35/7.5 | 52.6 mm |
| Depth at NS 35/15 | 60.1 mm |
Material Data
| Colour | multicolored |
| Flammability class according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static use of cold insulating material | -60 °C |
| Relative Insulating Material Temperature Index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Flammability of NFPA 130 Surfaces (ASTM E 162) | approved |
| NFPA 130 Specific Optical Flue Gas Density (ASTM E 662) | approved |
| NFPA 130 Flue Gas Toxicity (SMP 800C) | approved |
Electrical Testing
| Impulse Voltage Test | |
| Test Voltage Nominal Value | 9.8 kV |
| Result | Approved Test |
| Heating Verification | |
| Heating test requirement | Temperature rise ≤ 45 K |
| Result | Approved Test |
| Permissible short-term current 16 mm² | 1.92 kA |
| Short-term permissible current 25 mm² | 3 kA |
| Result | Approved Test |
| Dielectric Strength with Operating Frequency | |
| Test Voltage Nominal Value | 2.2 kV |
| Result | Approved Test |
Mechanical Properties
| Mechanical data | |
| Open sidewall | Yes |
Mechanical testing
| Mechanical resistance | |
| Result | Approved Test |
| Fixing on the bracket | |
| Rail/Fixing Surface | NS 35 |
| Nominal Value Test Force | 5 N |
| Result | Approved Test |
| Checking for damage to conductors and loosening | |
| Conductor Section/Weight | 0.5 mm2/0.3 kg |
| 16 mm2/2.9 kg | |
| 25 mm2/4.5 kg | |
| Result | Approved Test |
Environmental and life-life conditions
| Life | |
| Plug Cycles | 100 |
| Aging | |
| Temperature Cycles | 192 |
| Result | Approved Test |
| Needle Flame Test | |
| Performance Time | 30 sec |
| Result | Approved Test |
| Broadband Oscillation/Noise | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectrum | Category 2 durability test, on the bogie |
| frequency | f1= 5 Hz to f2= 250 Hz |
| ASD Level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test Directions | X, Y, and Z axes |
| Result | Approved Test |
| Crash | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock Type | Semi-sinusoid |
| Acceleration | 30g |
| Duration of the crash | 18 ms |
| Number of collisions per steering | 3 |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Result | Approved Test |
| Environmental conditions | |
| Ambient Temperature (Service) | -60 °C ... 110 °C (Operating temperature range incl. self-heating, max. short-term operating temperature; see RTI Elec.) |
| Ambient Temperature (Storage/Transport) | -25°C ... 60 °C (For a short time, no more than 24 hours, from -60 °C to +70 °C) |
| Ambient Temperature (Mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Drive) | -5 °C ... 70 °C |
| Permissible air humidity (service) | 20 % ... 90 % |
| Permissible air humidity (storage/transport) | 30 % ... 70 % |
Standards & Specifications
| Standard-compliant connection | IEC 60947-7-1 |
assembly
| Type of mounting | NS 35/7.5 |
| NS 35/15 |
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.5 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.5 mm² |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Suitable for conductor material (EF012572) | Aluminium/copper |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 12.2 mm |
| Height (EF000040) | 75.4 mm |
| Depth (EF000049) | 52.6 mm |
| Explosion-tested version 'Ex e' (EF008498) | Yes |
| Closing plate required (EF002525) | Yes |
| Colour (EF000007) | Multi colour |
| Internally connected stages (EF002661) | Yes |
