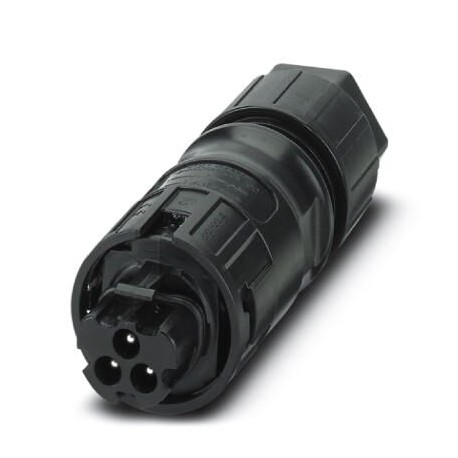

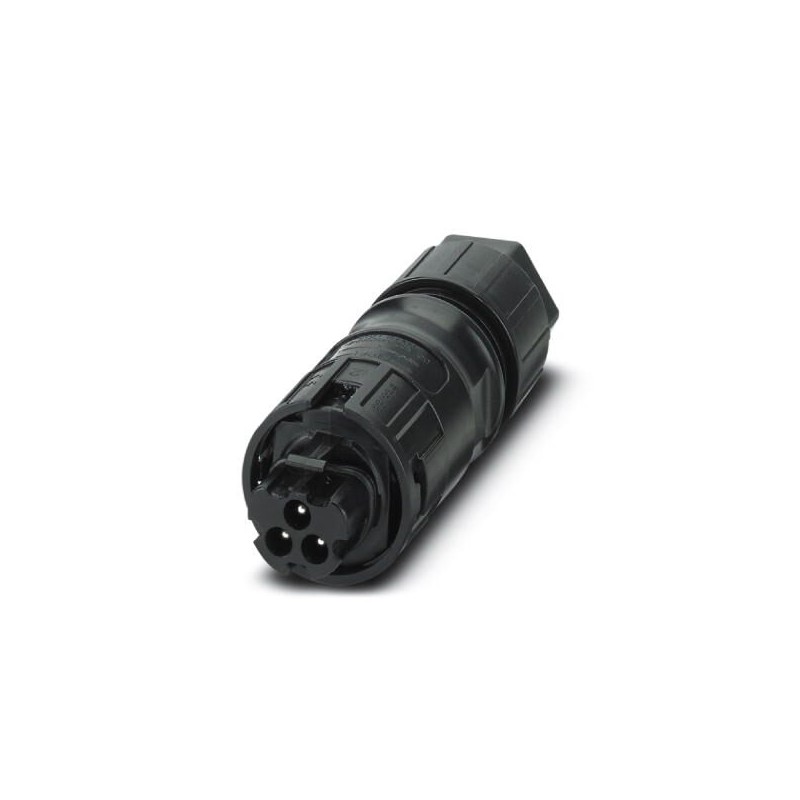

PRC 3-FC-MS6 12-16 1014529 PHOENIX CONTACT Circular connectors (cable-side), Range of articles: PRC, Connect..
PRC 3-FC-MS6 12-16
1014529
PHOENIX_CONTACT
Circular connectors (cable-side), Range of articles: PRC, Connector, housing material: PPE, color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², nom. voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Pin, min. cable diameter: 12 mm, max. cable diameter: 16 mm
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1014529 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626494364 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General data
| Number of positions | 3 |
|---|---|
| Protection class | II |
| Color | black |
| Locking type | Snap-in locking |
| Insertion/withdrawal cycles | 100 |
| Degree of protection (when plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Width | 37.6 mm |
| Height | 37.6 mm |
| Length | 105 mm |
Connection data
| Rated current | 35 A (With 6 mm² conductor cross section in accordance with IEC 61984) |
|---|---|
| 32 A (With 6 mm² conductor cross section in accordance with IEC 61535) | |
| 35 A (With 6 mm²/AWG 10, in accordance with UL 2238) | |
| Nominal voltage ATD | 690 V AC (in accordance with IEC 61984) |
| 500 V AC (in accordance with IEC 61535/2 PfG 1915) | |
| 600 V AC (In accordance with UL 2238) | |
| Rated voltage (III/2) | 690 V |
| Stripping length | 12 mm |
| Torque | max. 1 Nm (Contact screw) |
| Type of contact | Pin |
| Stripping length of the sheath | 50 mm |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 4 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Connection method | Screw connection |
| Degree of protection | IP66 / IP68 (2m / 24h) / IP69K |
| Stripping length of the individual wire | 12 mm () |
| Cable diameter1 | 12 mm ... 16 mm |
Material data
| Contact material | Cu alloy |
|---|---|
| Contact surface material | silver-plated |
| Contact carrier material | PPE |
| Flammability rating according to UL 94 | V0 |
| Housing material | PPE |
| Seal material | EPDM |
| O-ring material | EPDM |
| Cable seal material | EPDM |
| Cable gland material | PPE |
| Color of the housing part | black |
| Knurl material | PPE |
Standards and Regulations
| Halogen-free | yes |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. | |
| • Assembled products may not be manipulated or improperly opened. | |
| • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
| • When using the product in direct connection with third-party manufacturers, the user is responsible. | |
| • For operating voltages > 50 V AC, conductive connector housings must be grounded | |
| • Ensure that the protective or functional ground has been properly connected. | |
| • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
| • Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product | |
| • Only use tools recommended by Phoenix Contact | |
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products | |
| • Operate the connector only when it is fully plugged in. | |
| • Operate the connector only when it is fully plugged in and interlocked. | |
| • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
| • Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
