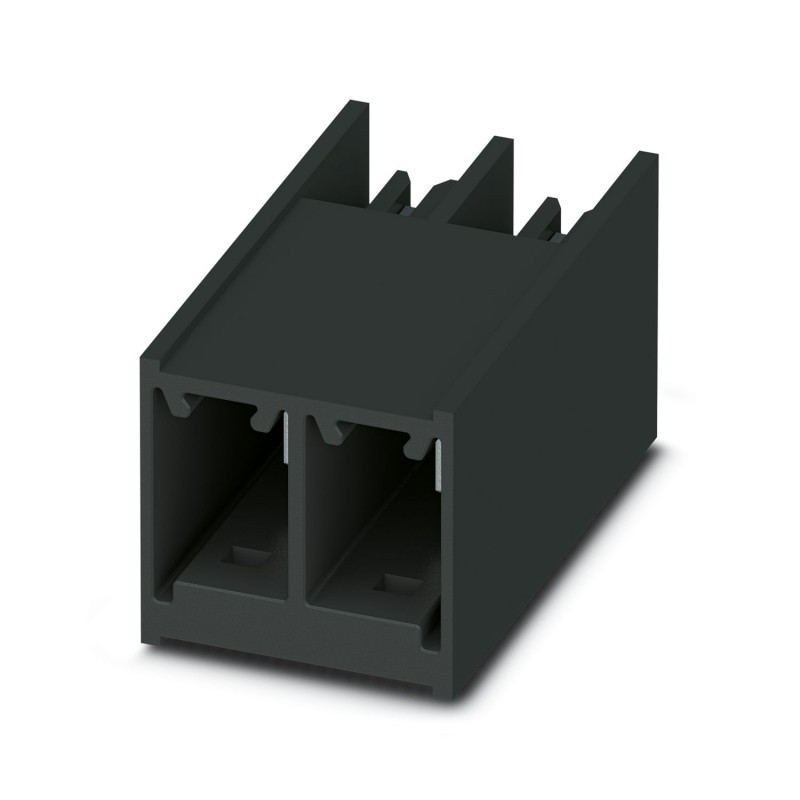

PC 6/ 4-G-7,62 BK 1097713 PHOENIX CONTACT Housing base printed circuit board, nominal current: 41 A, number ..
PC 6/ 4-G-7,62 BK
1097713
PHOENIX_CONTACT
50
Housing base printed circuit board, nominal current: 41 A, number of poles: 4, pitch: 7.62 mm, color: black, surface of contact: Tin, assembly: wave Soldering
Printed circuit board base case, nominal section: 6 mm², color: black, nominal current: 41 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 4, article family: PC 6/.. -G, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 6, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
PCB base strip, Nominal cross-section: 6 mm2, Colour: black, Rated current: 41 A, Rated voltage (III/2): 630 V, Contact surface: Sn, Contact type: Pin, Number of rows: 1, Number of poles: 4, Article family: PC 6/.. -G, Pitch: 7.62 mm, Mounting: Wave Soldering, Pin Layout: Linear Pinning, Pin Length [P]: 2.6 mm, Number of Solder Pins per Potential: 3, Plug-in System: COMBICON PC 6, Mating Face Alignment: Standard, Locking: None, Mounting Type: None, Packaging Type: Packed in a Box
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | PCB Floor Strip |
| Product family | 6/.. pcs -G |
| Product Line | COMBICON Connectors L |
| Number of poles | 4 |
| Grid dimension | 7.62 mm |
| Number of rows | 1 |
| 1 | |
| Pin layout | Linear Pinning |
| Number of solder pins per potential | 3 |
| Data maintenance status | |
| Article revision | 00 |
| Nominal current IN | 41 A |
| Rated voltage UN | 630 V |
| Contact resistance | 0.5 mΩ |
| Rated voltage (III/3) | 630 V |
| Rated Surge Voltage (III/3) | 6 kV |
| Rated voltage (III/2) | 630 V |
| Rated Surge Voltage (III/2) | 6 kV |
| Rated voltage (II/2) | 1000 V |
| Rated Surge Voltage (II/2) | 6 kV |
| Mounting type | Wave Soldering |
| Pin layout | Linear Pinning |
| Material information - Contact | |
| Note | WEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Material Contact | Cu alloy |
| Surface finish | Electroplated |
| Metal Surface Contact Area (Top Layer) | Tin (2 - 4 μm Sn) |
| Metal Surface Contact Area (Interlayer) | Nickel (1.3 - 3 μm Ni) |
| Metal Surface Soldering Area (Top Layer) | Tin (2 - 4 μm Sn) |
| Metal Surface Soldering Area (Interlayer) | Nickel (1.3 - 3 μm Ni) |
| Material specifications - Housing | |
| Color (Housing) | black (9005) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Note on operation | COMBICON connectors are connectors without switching capacity (COC) in accordance with DIN EN 61984. When used as intended, they must not be plugged in or disconnected in a live or under load. |
| Dimensional drawing |  |
| Grid dimension | 7.62 mm |
| Width [w] | 30.88 mm |
| Height [h] | 16.1 mm |
| Length [l] | 28.2 mm |
| Overall height | 13.5 mm |
| Solder pin length [P] | 2.6 mm |
| Pin Dimensions | 1 x 1.2 mm |
| PCB Design | |
| Drill Hole Diameter | 1.7 mm |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Exam passed |
| Dimensional inspection | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Exam passed |
| Durability of inscriptions | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Exam passed |
| Polarization and Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Exam passed |
| Contact holder in use | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact holder in use Requirement >20 N | Exam passed |
| Mating and pulling forces | |
| Result | Exam passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 11 N |
| Pulling force per pole approx. | 10 N |
| Thermal Testing Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Tested number of poles | 6 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Clearance and creepage distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 630 V |
| Rated Surge Voltage (III/3) | 6 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 5.5 mm |
| Minimum value of the creepage distance (III/3) | 8 mm |
| Rated insulation voltage (III/2) | 630 V |
| Rated Surge Voltage (III/2) | 6 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 5.5 mm |
| Minimum value of the creepage distance (III/2) | 5.5 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated Surge Voltage (II/2) | 6 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 5.5 mm |
| Minimum value of the creepage distance (II/2) | 5.5 mm |
| Vibration testing | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y and Z axis |
| Durability test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Standing Shock Stress at Sea Level | 7.3 kV |
| Contact resistance R1 | 0.5 mΩ |
| Contact resistance R2 | 0.5 mΩ |
| Mating cycles | 25 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Climatic testing | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion stress | 0.2 dm3SO2to 300 DM3/40 °C/1 cycle |
| Heat stress | 100 °C/168 h |
| Standing AC voltage | 3.31 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging type | packed in carton |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 7.62 mm |
| Modular spacing connections (EF006827) | 7.62 mm |
| Rated current In (EF008250) | 41 A |
| Rated voltage (EF000228) | 630 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.7 mm |
| Length pin (EF006825) | 2.6 mm |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
