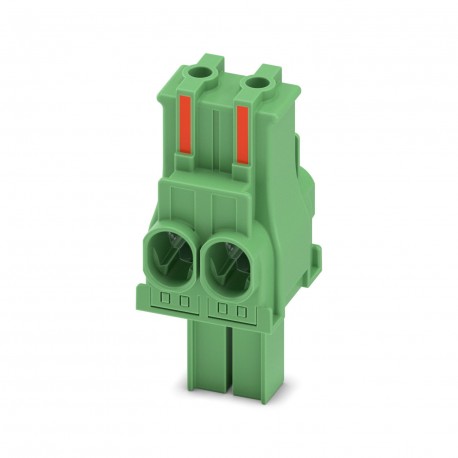

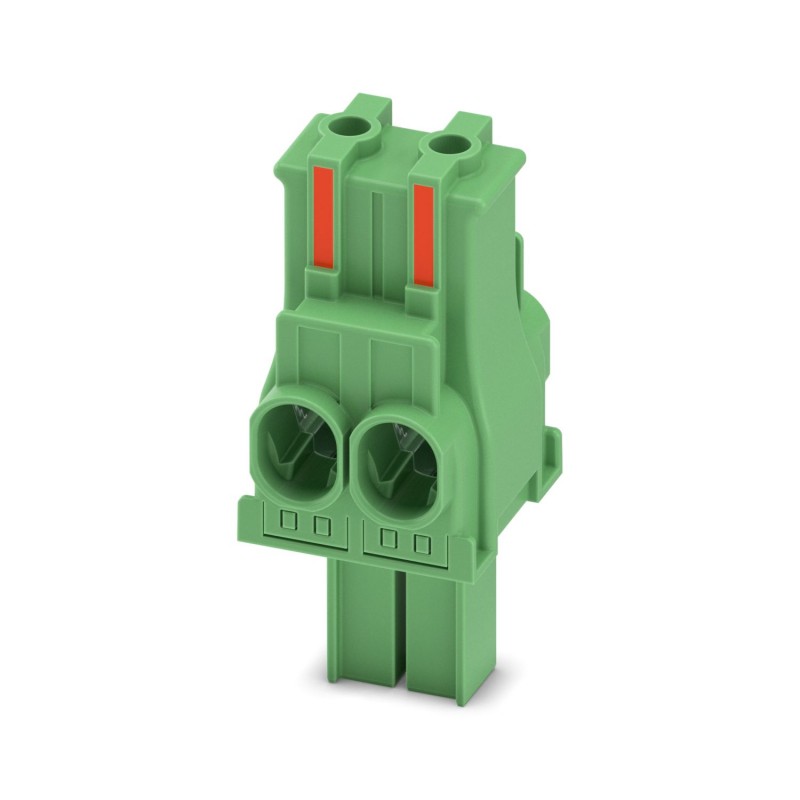

PC 6/ 2-ST-BUS-7,62 1044740 PHOENIX CONTACT Connector for printed circuit board, nominal current: 32 A, numb..
PC 6/ 2-ST-BUS-7,62
1044740
PHOENIX_CONTACT
20
Connector for printed circuit board, nominal current: 32 A, number of poles: 2, pitch: 7.62 mm, connection type: displacement Connection, color: green, surface contacts: Tin
Connector for printed circuit board, nominal section: 16 mm², color: green, nominal current: 32 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: PC 6/.. -ST-BUS, pitch: 7.62 mm, connection type: Offset connection, screw clamping method: T15 Torx®, driver/printed circuit board connection direction: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON PC 6, locking: without, fixing type: without, packaging type: packed in box
PCB connector, nominal cross-section: 16 mm2, colour: green, rated current: 32 A, dimensioning voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, product series: PC 6/.. -ST-BUS, pitch: 7.62 mm, connection type: insulation displacement connection, screw attachment form: T15 Torx®, conductor/board connection direction: 0 °, locking hook: - without locking hook, plug system: COMBICON PC 6, locking: none, fixing type: none, packaging type: packed in carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Printed circuit board connector |
| Product Family | PC 6/.. -ST-BUS |
| Product Line | COMBICON Connectors L |
| Number of poles | 2 |
| Step | 7.62 mm |
| Number of connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Fixing flange | absent |
| Data maintenance status | |
| Article review | 02 |
| Rated Current IN | 32 A |
| Rated voltage UN | 1000 V |
| Mass Resistivity | 0.7 mΩ |
| Sizing voltage (III/3) | 1000 V |
| Sizing impulse voltage (III/3) | 8 kV |
| Sizing voltage (III/2) | 1000 V |
| Sizing Impulse Voltage (III/2) | 8 kV |
| Sizing voltage (II/2) | 1000 V |
| Sizing Impulse Voltage (II/2) | 6 kV |
| Connection technology | |
| Connector system | COMBICON PC 6 |
| Nominal cross-section | 16 mm² |
| Contact Connection Type | female |
| Blockage | |
| Clamping Type | absent |
| Fixing flange | absent |
| Conductor connection | |
| Link | Insulation displacement connection |
| Conductor/board connection direction | 0 ° |
| Flexible conductor cross-section | 16 mm² (H07V-K / Maximum Outer Diameter 8.1 mm) |
| Appliance type screw head | Torx® (T15) |
| Tightening torque | 3 Nm |
| Conductor connection | |
| Link | Insulation displacement connection |
| Conductor/board connection direction | 0 ° |
| Appliance type screw head | Torx® (T15) |
| Tightening torque | 3 Nm |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Hot-dip galvanizing |
| Metal Surface, Connection Point (Surface Layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact zone (surface layer) | Tin (4 - 8 μm Sn) |
| Material information - case | |
| Color (Case) | Green (6021) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data - drive element | |
| Colour (Drive Element) | Orange (2003) |
| Dimensioned Drawing |  |
| Step | 7.62 mm |
| Width [w] | 24.4 mm |
| Height [h] | 58 mm |
| Length [l] | 28.75 mm |
| Note for Operation | According to DIN EN 61984, COMBICON connectors are connectors without switchable power (COC). For use in accordance with the intended use, they must not be switched on or disconnected while they are still live or under load. |
| Conductor connection | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Test passed |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Test passed |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 16 mm² / flexible / > 100 N |
| Insertion/tensile force | |
| Test Specification | DIN EN 60512-13-2:2006-11 |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 13 N |
| Tensile force per pole approx. | 16 N |
| Torque test | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 9.8 kV |
| Mass Resistivity R1 | 0.7 mΩ |
| Mass Resistivity R2 | 0.7 mΩ |
| Manoeuvring cycles | 25 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle |
| Stress due to the effect of heat | 100 °C/168 h |
| Fixed AC voltage | 4.26 kV |
| Glow Wire Test | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Temperature | 850 °C |
| Duration of application | 5 s |
| Glow Wire Test | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Temperature | 650 °C |
| Duration of application | 5 s |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 40 °C (depending on conductor insulation) |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 3 |
| Short-term current resistance | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Temperature Cycling | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Test passed |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated impulse voltage (III/3) | 8 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 8 mm |
| Minimum creepage value (III/3) | 12.5 mm |
| Rated Isolation Voltage (III/2) | 1000 V |
| Rated impulse voltage (III/2) | 8 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 8 mm |
| Minimum creepage value (III/2) | 8 mm |
| Rated Isolation Voltage (II/2) | 1000 V |
| Rated Impulse Voltage (II/2) | 6 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 5.5 mm |
| Minimum creepage value (II/2) | 5.5 mm |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 2 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 7.62 mm |
| Modular spacing connections (EF006827) | 7.62 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 32 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 16 mm² |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
