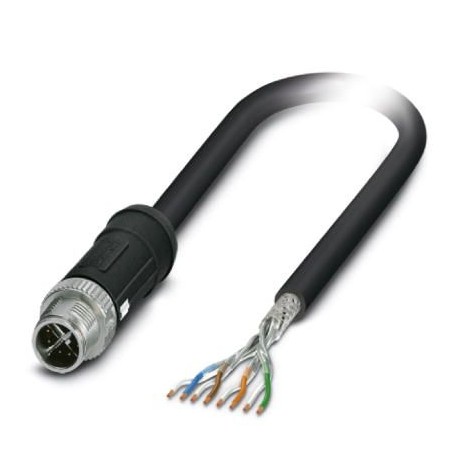

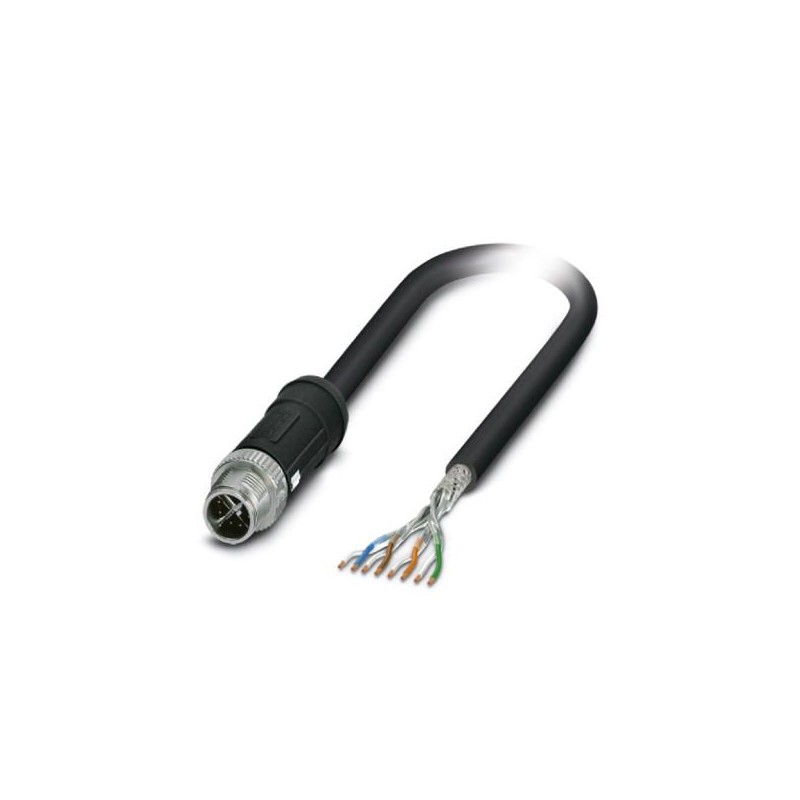

NBC-MSX/10,0-94S SCO RAIL
1415601
PHOENIX_CONTACT
1
Network cable
Cables > Data cable
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1415601 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 408 (C-2-2017) |
GTIN | 4055626047683 |
Weight per Piece (excluding packing) | 602.500 g |
Custom tariff number | 85444210 |
Country of origin | PL (Poland) |
Degree of protection | IP65 |
---|---|
IP67 | |
Ambient temperature (operation) | -25 °C ... 90 °C (M12 connector) |
Rated current at 40°C | 0.5 A |
---|---|
Rated voltage | 48 V AC |
60 V DC | |
Number of positions | 8 |
Signal type/category | Ethernet CAT6A, 10 Gbps |
Standards/regulations | M12 connector IEC 61076-2-109 |
Shock, vibration EN 50155 |
Head type | Plug straight M12 SPEEDCON / IP67 |
---|---|
No. of positions (pin connector pattern) | 8 |
Coding | X (Data) |
Color | black |
Material (component) | CuZn (Contact) |
Ni/Au (Contact surface) | |
TPU (Contact carriers) | |
PA 6.6 (Grip) | |
Zinc die-cast, nickel-plated (Screw connection) | |
Standards/regulations material | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Insulation resistance | ≥ 100 MΩ |
Insertion/withdrawal cycles | ≥ 100 |
Torque | 0.4 Nm |
Ambient temperature (operation) | -25 °C ... 90 °C |
Head type | free cable end |
---|---|
Color | black |
Stripping length of the sheath (free conductor end) | 0.5 mm |
Standard designation | M12 connector |
---|---|
Standards/regulations | IEC 61076-2-109 |
Standard designation | Shock, vibration |
Standards/regulations | EN 50155 |
Cable type | Ethernet for rail applications |
---|---|
Cable type (abbreviation) | 94S |
Signal type/category | Ethernet CAT7, 10 Gbps |
Cable structure | 4x2xAWG26/7; S/FTP |
Conductor cross section | 4x 2x 0.14 mm² |
AWG signal line | 26 |
Conductor structure signal line | 7x 0.16 mm |
Core diameter including insulation | 1.05 mm ±0.1 mm |
Wire colors | White-blue, white-orange, white-green, white-brown |
Twisted pairs | 2 cores to the pair |
Type of pair shielding | Aluminum-lined polyester foil |
Overall twist | 4 pairs, twisted |
Shielding | Tinned copper braided shield |
External sheath, color | black |
External cable diameter D | 6.6 mm ±0.2 mm |
Minimum bending radius, fixed installation | 6 x D |
Tensile strength GRP | ≤ 60 N (temporary) |
≤ 15 N (Permanent) | |
Cable weight | 59 kg/km |
Copper weight | 28 kg/km |
Outer sheath, material | PE-X |
Material conductor insulation | Cell PE |
Conductor material | Tin-plated Cu litz wires |
Insulation resistance | ≥ 5 GΩ*km |
Conductor resistance | ≤ 145 Ω/km |
Working capacitance | 44 nF (per kilometer) |
Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
Near end crosstalk attenuation (NEXT) | 100 dB (with 1 MHz) |
99 dB (at 10 MHz) | |
95 dB (at 100 MHz) | |
92 dB (at 200 MHz) | |
90 dB (at 250 MHz) | |
83 dB (at 500 MHz) | |
81 dB (at 600 MHz) | |
80 dB (at 700 MHz) | |
77 dB (at 800 MHz) | |
75 dB (at 900 MHz) | |
74 dB (at 1000 MHz) | |
72 dB (at 1100 MHz) | |
70 dB (at 1200 MHz) | |
Power-summated near end crosstalk attenuation (PSNEXT) | 97 dB (with 1 MHz) |
96 dB (at 10 MHz) | |
92 dB (at 100 MHz) | |
89 dB (at 200 MHz) | |
87 dB (at 250 MHz) | |
80 dB (at 500 MHz) | |
78 dB (at 600 MHz) | |
77 dB (at 700 MHz) | |
74 dB (at 800 MHz) | |
72 dB (at 900 MHz) | |
71 dB (at 1000 MHz) | |
69 dB (at 1100 MHz) | |
67 dB (at 1200 MHz) | |
Attenuation | 0.25 dB (with 1 MHz) |
0.76 dB (at 10 MHz) | |
2.49 dB (at 100 MHz) | |
3.69 dB (at 200 MHz) | |
4.18 dB (at 250 MHz) | |
5.6 dB (at 500 MHz) | |
6.74 dB (at 600 MHz) | |
7.32 dB (at 700 MHz) | |
7.89 dB (at 800 MHz) | |
8.5 dB (at 900 MHz) | |
9.11 dB (at 1000 MHz) | |
9.5 dB (at 1100 MHz) | |
9.9 dB (at 1200 MHz) | |
Return loss (RL) | 24 dB (with 1 MHz) |
33.9 dB (at 10 MHz) | |
38.3 dB (at 100 MHz) | |
35.3 dB (at 200 MHz) | |
32.9 dB (at 250 MHz) | |
29.7 dB (at 500 MHz) | |
30.6 dB (at 600 MHz) | |
31 dB (at 700 MHz) | |
26.7 dB (at 800 MHz) | |
28.6 dB (at 900 MHz) | |
27.5 dB (at 1000 MHz) | |
26.9 dB (at 1100 MHz) | |
26.3 dB (at 1200 MHz) | |
Crosstalk attenuation (ACR) | 100 dB (with 1 MHz) |
99 dB (at 10 MHz) | |
93 dB (at 100 MHz) | |
88 dB (at 200 MHz) | |
86 dB (at 250 MHz) | |
78 dB (at 500 MHz) | |
74 dB (at 600 MHz) | |
72 dB (at 700 MHz) | |
69 dB (at 800 MHz) | |
67 dB (at 900 MHz) | |
65 dB (at 1000 MHz) | |
63 dB (at 1100 MHz) | |
61 dB (at 1200 MHz) | |
Power-summated crosstalk attenuation (PS-ACR) | 97 dB (with 1 MHz) |
96 dB (at 10 MHz) | |
90 dB (at 100 MHz) | |
85 dB (at 200 MHz) | |
83 dB (at 250 MHz) | |
75 dB (at 500 MHz) | |
71 dB (at 600 MHz) | |
69 dB (at 700 MHz) | |
66 dB (at 800 MHz) | |
64 dB (at 900 MHz) | |
62 dB (at 1000 MHz) | |
60 dB (at 1100 MHz) | |
58 dB (at 1200 MHz) | |
Signal speed | 0.78 c |
Signal runtime | 4.4 ns/m |
Shield attenuation | 60 dB (up to 1000 MHz) |
Interference suppression | 90 dB (up to 1000 MHz) |
Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
Nominal voltage, cable | 125 V AC (Uo) |
Test voltage Core/Core | 1000 V AC (50 Hz, 1 min.) |
Test voltage Core/Shield | 1000 V AC (50 Hz, 1 min.) |
Fire protection in rail vehicles | BS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II) |
DIN 5510-2 (Fire protection level 1, 2, 3, 4) | |
EN 45545-2 | |
EN 50306-4 | |
NF F16-101 (Classification C/F1) | |
NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B) | |
NFPA 130 | |
PN-K-02511 (Class A) | |
UIC 564-2 (Class A) | |
Flame resistance | according to EN 60332-1-2 |
EN 60332-3-25 | |
according to ISO 14572 5.21 (UN ECE-R 118.01) | |
Halogen-free | According to EN 50267-2-1 |
according to EN 60684-2 | |
Resistance to oil | according to EN 60684-2, 72 h at 100 °C, IRM 902 |
Other resistance | Resistant to fuel according to EN 60684-2, 72 h at 100 °C, IRM 903 |
Resistant to ozone according to EN 50306-4, 72 h at 40 °C, procedure B, volume concentration 200 x 10-6 | |
Concentration of fumes | EN 61034-2 |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
