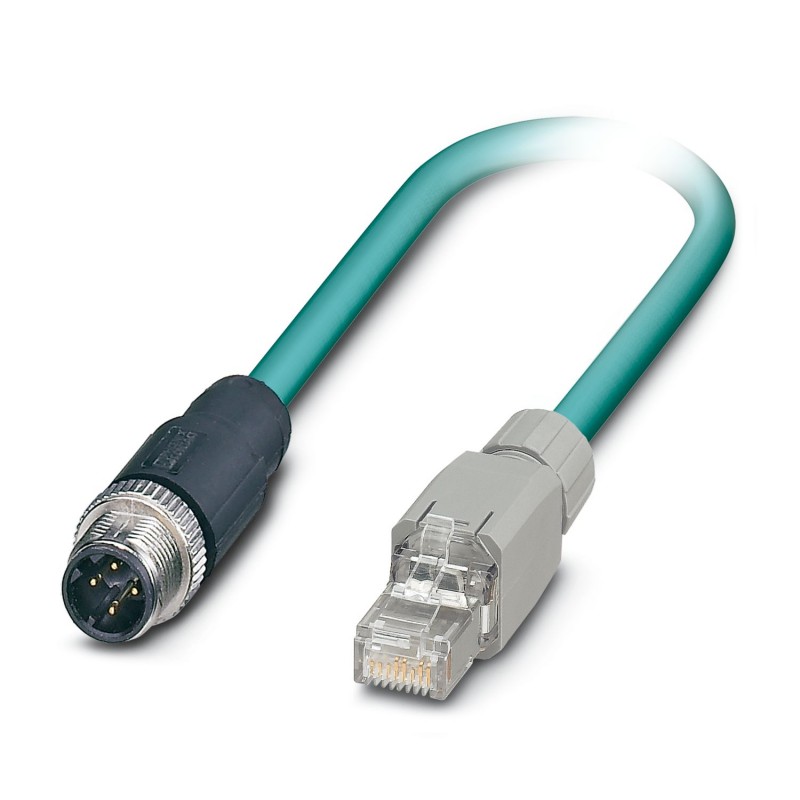

NBC-MSD/ 2,1-939/R4AQ SCO RAIL 1081326 PHOENIX CONTACT Network cable, PROFINET CAT5 (100 Mbps), 4-position, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NBC-MSD/ 2,1-939/R4AQ SCO RAIL 1081326 PHOENIX CONTACT Network cable, PROFINET CAT5 (100 Mbps), 4-position, ..

NBC-MSD/ 2,1-939/R4AQ SCO RAIL

1081326

PHOENIX_CONTACT

Network cable, PROFINET CAT5 (100 Mbps), 4-position, PE-X halogen-free, black, shielded, cable length: 2.1 m, Product tested according to customer specification/rail application

Network cable, PROFINET CAT5 (100 MBit/s), 4-pole halogen-free, shielded, M12 straight connector, coding: D SPEEDCON / IP65, to RJ45 / IP67 straight connector, cable length: 2.1 m, Item tested according to customer specification/railway application

Network cable, PROFINET CAT5 (100 Mbps), 4-position, PE-X halogen-free, black, shielded, Plug straight M12 SPEEDCON, coding: D / IP65, on Plug straight RJ45 / IP67, cable length: 2.1 m, Product tested according to customer specification/rail application

More details


Industrial Field Connectivity (IFC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Notes
GeneralThe cable is 100% electrically tested for continuity.
Product properties
Product typeData cable preassembled
Sensor typePROFINET
Number of positions4
No. of cable outlets1
Shieldedyes
CodingD
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Interfaces
Bus systemPROFINET
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Signaling
Status displayno
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Material specifications
Flammability rating according to UL 94V0
Connector
Connection 1
TypePlug straight M12 SPEEDCON / IP65
Locking typeSPEEDCON
Coding typeD (Data)
Shieldedyes
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of protectionIP65
Ambient temperature (operation)-40 °C ... 90 °C
Connection 2
TypePlug straight RJ45 / IP67
Number of positions4 (8)
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PC (Contact carriers)
PA GF (Housing)
Insertion/withdrawal cycles≥ 750
Degree of protectionIP67
Cable/line
Cable length2.1 m
PROFINET BETAtrans® railway application CAT5 [939]
Dimensional drawingdzbayfleav.jpg
Cable weight71 kg/km
Number of positions4
Shieldedyes
Cable typePROFINET BETAtrans® railway application CAT5 [939]
Conductor structure1x4xAWG22/7, SF/TQ
Signal runtime4.4 ns/m
Signal speed0.75 c
Conductor structure signal line7x 0.25 mm
AWG signal line22
Conductor cross section4x 0.34 mm²
Wire diameter incl. insulation1.4 mm ±0.1 mm
External cable diameter6.60 mm ±0.2 mm
Outer sheath, materialPE-X
External sheath, colorblack
Conductor materialTin-plated Cu litz wires
Material wire insulationCell PE
Single wire, colorwhite-blue, orange-yellow
Thickness, outer sheath1.00 mm
Overall twistStar quad
Max. conductor resistance≤ 54.4 Ω/km
Insulation resistance≥ 5 GΩ*km
Coupling resistance< 13.00 mΩ/m (f = 1 MHz)
< 8.00 mΩ/m (f = 10 MHz ... 100 MHz)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Cable capacity44 nF/km (Line-line)
Cable impedance100 Ω ±15 Ω (f = 0.5 MHz ... 3 MHz)
Nominal voltage, cable125 V
Test voltage Core/Core1000 V AC (50 Hz, 1 min.)
Test voltage Core/Shield1000.00 V AC (50 Hz, 1 min.)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation6 x D
Smallest bending radius, fixed installation33 mm
Smallest bending radius, movable installation40 mm
Tensile strength≤ 60 N (temporary)
≤ 15 N (Permanent)
Near end crosstalk attenuation (NEXT)76 dB (with 1 MHz)
71 dB (at 4 МHz)
64 dB (at 10 MHz)
60 dB (at 16 MHz)
56 dB (at 31.25 МHz)
52 dB (at 62.5 МHz)
48 dB (at 100 MHz)
45 dB (at 155 MHz)
42 dB (at 200 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)73 dB (with 1 MHz)
68 dB (at 4 МHz)
61 dB (at 10 MHz)
57 dB (at 16 MHz)
53 dB (at 31.25 МHz)
49 dB (at 62.5 МHz)
45 dB (at 100 MHz)
42 dB (at 155 MHz)
39 dB (at 200 MHz)
Return attenuation (RL)25 dB (with 1 MHz)
25 dB (at 4 МHz)
28 dB (at 10 MHz)
28 dB (at 16 MHz)
27 dB (at 31.25 МHz)
26 dB (at 62.5 МHz)
25 dB (at 100 MHz)
25 dB (at 155 MHz)
23 dB (at 200 MHz)
Shield attenuation1.5 dB (with 1 MHz)
3.3 dB (at 4 МHz)
5.3 dB (at 10 MHz)
6.9 dB (at 16 MHz)
9.9 dB (at 31.25 МHz)
14.5 dB (at 62.5 МHz)
18.8 dB (at 100 MHz)
23.6 dB (at 155 MHz)
27.3 dB (at 200 MHz)
60.00 dB (up to 1000 MHz)
Halogen-freein accordance with EN 50267-2-1
in accordance with EN 60684-2
Flame resistancein accordance with EN 60332-1-2
in accordance with EN 50266-2-5
in accordance with ISO 14572 5.21 (UN ECE-R 118.01)
Concentration of fumesEN 61034-2
Resistance to oilin accordance with EN 50306-4, 72 hours at 100°C, IRM 902
Fire protection in rail vehiclesBS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
DIN 5510-2 (Fire protection level 1, 2, 3, 4)
EN 45545-2 (Risk level HL1 - HL3)
EN 50306-4
NF F16-101 (Classification C/F1)
NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
NFPA 130
PN-K-02511
UIC 564-2 (Class A)
Other resistanceResistant to fuel (in accordance with EN 50306-4, 168 hours at 70°C, IRM 903)
Resistant to ozone (in accordance with EN 50306-4, 72 hours at 40°C, method B, volumetric concentration of 200 x 10-6)
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 70 °C (Cable, flexible installation)
160 °C (Short circuit)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 85 °C (M12 connector)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

Datasheet - PDF

▲
