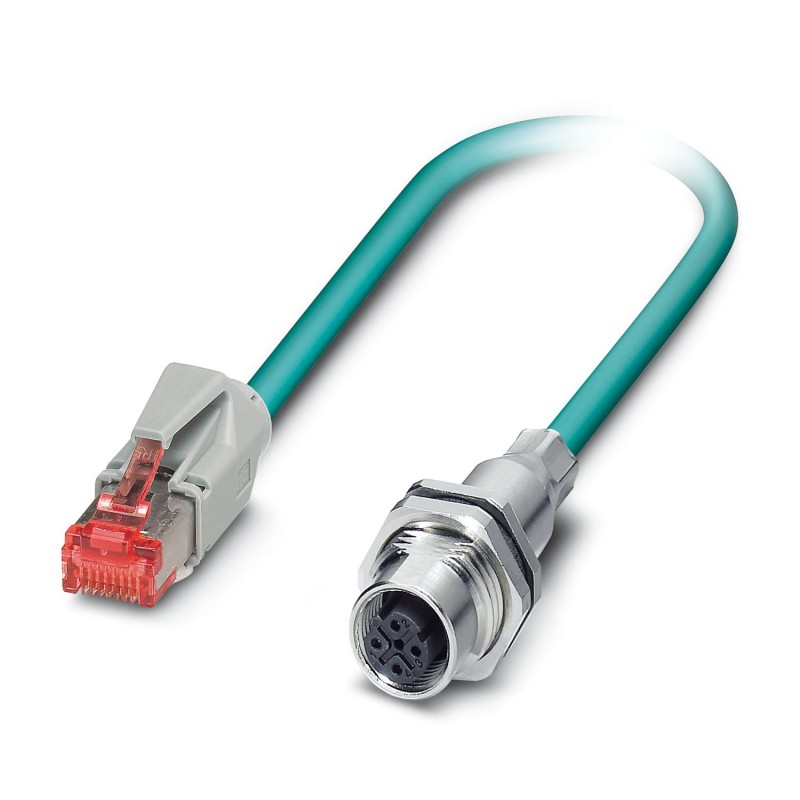

NBC-M12FSBPS-R4AC-93E/0,5-OR
1408357
PHOENIX_CONTACT
1
Network cable
Data and telecommunication > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Number of positions | 4 |
---|---|
Shielded | yes |
Insertion/withdrawal cycles | ≥ 100 |
Cable diameter | 6.70 mm |
Cable outlet | straight |
Cable structure | 2x2xAWG26/7; SF/UTP |
Degree of protection | IP20 |
No. of cable outlets | 1 |
Ambient temperature (operation) | -25 °C ... 60 °C (cable, fixed installation) |
---|---|
-5 °C ... 60 °C (cable, flexible installation) |
Rated voltage (III/3) | 72 V (DC) |
---|---|
Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Cable type | Ethernet |
---|---|
Cable structure | 2x2xAWG26/7 PIMF |
Conductor cross section | 2x 2x 0.14 mm² |
AWG signal line | 26 |
Conductor structure signal line | 7x 0.15 mm |
Core diameter including insulation | ≤ 1.05 mm |
External cable diameter | 6.7 mm |
Wire colors | white/orange-orange, white/green-green |
External sheath, color | water blue RAL 5021 |
Transmission medium | Copper |
Insulation resistance | ≥ 5 GΩ*km |
Conductor resistance | ≤ 150 Ω/km |
Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Working capacitance | 42 pF |
Wave impedance | 100 Ω ±5 % (at 100 MHz) |
Signal speed | 0.72 c |
Shield attenuation | 60 dB (up to 1000 MHz) |
Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
Nominal voltage, cable | max. 125 V |
Test voltage, cable | 1000 V |
Twisted pairs | 2 cores to the pair |
Type of pair shielding | Aluminum-lined polyester foil |
Overall twist | Two pairs with two fillers to the core |
Shielding | Tinned copper braided shield |
Outer sheath, material | PUR |
Material conductor insulation | Cell PE |
Conductor material | Bare Cu litz wires |
Cable weight | 42 kg/km |
Smallest bending radius, movable installation | 34 mm |
Special properties | Free of substances which would hinder coating with paint or varnish |
Flame resistance | complying with IEC 60332-2-2 |
Halogen-free | complying with IEC 60754-1/2 |
Resistance to oil | in accordance with DIN EN 60811-2-1 |
Other resistance | Microbe resistance as per VDE 0282 section 10 |
Hydrolysis resistance as per DIN 53504 | |
Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
-10 °C ... 50 °C (cable, flexible installation) |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
