> PHOENIX CONTACT >PCB Connectors (PCC)>MKDSP 10N/ 5-10,16 SZS 1774331 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, ra..
Previous Product Next Product

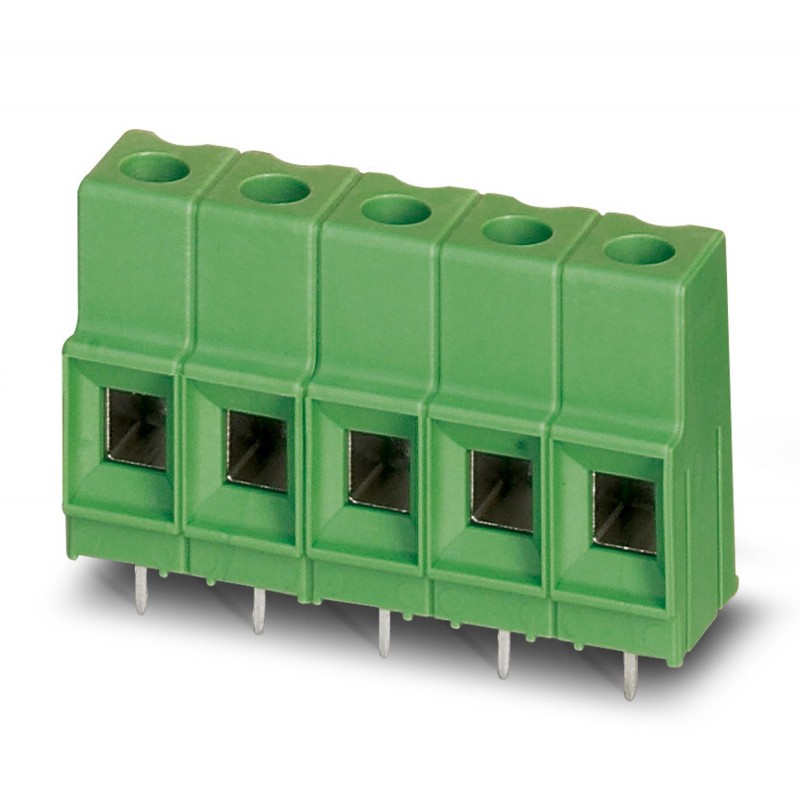

MKDSP 10N/ 5-10,16 SZS 1774331 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, ra.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MKDSP 10N/ 5-10,16 SZS 1774331 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, ra..

MKDSP 10N/ 5-10,16 SZS

1774331

PHOENIX_CONTACT

50

Terminal for printed circuit board, nominal current: 76 A, rated voltage: 1000 V, pitch: 10,16 mm, number of poles: 5, type of connection: Connection by screw with capsule-traction, assembly: Soldering by wave direction for connection conductor/pcb: 0 °, color: green

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 10 mm², pitch: 10.16 mm, number of positions: 5, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 5 mm

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $513.99
Unit price: $10.28

Quantity Price
50+$10.28
100+$9.56
150+$9.56
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey1774331
Packing unit1
GTIN4046356481786
Custom tariff number85369010

Drawings

Diagram

Diagram
Type: MKDSP 10N/...-10,16
Tested in accordance with DIN EN 60512-5-2:2003-01
Reduction factor = 1
No. of positions: 5

Back to top

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKDSP 10N
Pitch10.16 mm
Number of positions5
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Screw threadM4
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections5
Number of potentials5
Back to top

Electrical parameters

Nominal current76 A
Nom. voltage1000 V
Rated voltage690 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Back to top

Connection capacity

Connection methodScrew connection with tension sleeve
pluggableYes
Conductor cross section solid0.5 mm² ... 16 mm²
Conductor cross section flexible0.5 mm² ... 16 mm²
Conductor cross section AWG / kcmil20 ... 6
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 16 mm²
2 conductors with same cross section, solid0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 6 mm²
Stripping length10 mm
Torque1.2 Nm ... 1.5 Nm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 3 µm Ni)
Back to top

Material data - housing

Housing colorgreen (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]18.4 mm
Width [ w ]50.8 mm
Height [ h ]34.3 mm
Pitch10.16 mm
Height (without solder pin)29.3 mm
Solder pin [P]5 mm
Pin dimensions1 x 0.9 mm
Dimension a40.64 mm
Back to top

Dimensions for PCB design

Hole diameter1.5 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Back to top

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test for conductor damage and slackeningIEC 60998-2-1:2002-12
Test passed
Back to top

Pull-out test

Pull-out testIEC 60998-2-1:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.5 mm² / solid / > 20 N
0.5 mm² / flexible / > 20 N
16 mm² / solid / > 100 N
16 mm² / flexible / > 100 N
Back to top

Electrical tests

Rated current76 A
Conductor cross section16 mm²
Rated voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Minimum clearance - inhomogeneous field (III/3)8 mm
Minimum clearance - inhomogeneous field (III/2)8 mm
Minimum clearance - inhomogeneous field (II/2)5.5 mm
Minimum creepage distance value (III/3)8 mm
Minimum creepage distance value (III/2)5 mm
Minimum creepage distance value (II/2)5 mm
Back to top

Temperature-rise test

ResultTest passed
SpecificationIEC 60998-1:2002-12
Back to top

Vibration test

SpecificationIEC 60068-2-6:2007-12
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Resistance to ageing, humidity and penetration of solids

Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027141100
eCl@ss 4.127141100
eCl@ss 5.027141100
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432
UNSPSC 18.039121432
UNSPSC 19.039121432
UNSPSC 20.039121432
UNSPSC 21.039121432
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
