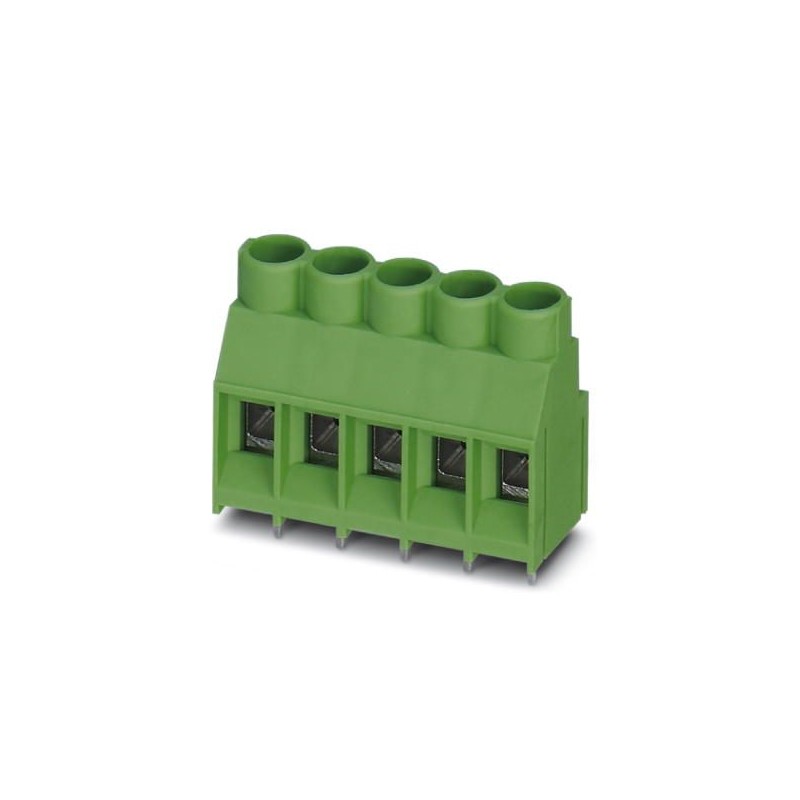

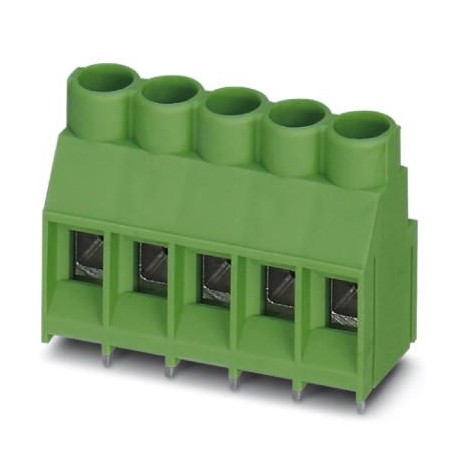

MKDS 5/14-6,35 1713804 PHOENIX CONTACT Terminal p. printed circuit board, nominal Current: 32 A, nominal Vol..
MKDS 5/14-6,35
1713804
PHOENIX_CONTACT
Terminal p. printed circuit board, nominal Current: 32 A, nominal Voltage: 630 V, Pitch: 6.35 mm, Number of poles: 14, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 0 °, Color: green
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | One million seven hundred thirteen thousand eight hundred four |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AABBAA - |
| EAN | Four trillion seventeen billion nine hundred eighteen million two hundred thirty two thousand sixty one |
| Unit weight (excluding packaging) | 37,509 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | (Germany) |
Dimensions
| Length [ l ] | 12.5 mm |
|---|---|
| Step | 6.35 mm |
| Average | 82.55 mm |
| Width [ w ] | 88.9 mm |
| Height of construction | 21.5 mm |
| Height [ h ] | 26,6 mm |
| Length of pin [P] | 5.1 mm |
| Diameter hole | 1.3 mm |
Overview
| Family of articles | MKDS 5 |
|---|---|
| Group insulating material | I |
| Transient voltage design (III/3) | 6 kV |
| Transient voltage design (III/2) | 6 kV |
| Transient voltage design (II/2) | 6 kV |
| Tension and sizing (III/3) | 500 V |
| Tension and sizing (III/2) | 630 V |
| Tension and sizing (II/2) | 1000 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 32 To |
| Nominal cross section | 4 mm2 |
| Maximum load current | 32 To |
| Surface pin welding | |
| Class of flammability according to UL 94 | V0 |
| Gauge male | A4 |
| Length desaislar | 8 mm |
| Number of poles | Fourteen |
| Screw thread | M3 |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
Data connection
| Section of conductor AWG min. | Twenty four |
|---|---|
| Section of conductor AWG max. | Ten |
| 2 conductors with same cross section, rigid min. | 0,2 mm2 |
| 2 conductors with same cross section, rigid max. | 1.5 mm2 |
| 2 conductors with same cross section, flexible, min. | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. | 1.5 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve min. | 0.25 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve max. | 0.75 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. | 0.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. | 2.5 mm2 |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CSA | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0Twenty seven million one hundred forty one thousand one hundred nineeCl@ss 4.1Twenty seven million one hundred forty one thousand one hundred nineeCl@ss 5.0Twenty seven million one hundred forty one thousand one hundred ninetyeCl@ss 5.1Twenty seven million two hundred sixty one thousand one hundredeCl@ss 6.0Twenty seven million two hundred sixty one thousand one hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred one
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred thirty two
