BSKD09-E1021 7215267 OBO BETTERMANN BSKD09-E1021 end cap, for BSKD09-K1021 105x210 Lightweight concrete with..
BSKD09-E1021
7215267
OBO BETTERMANN

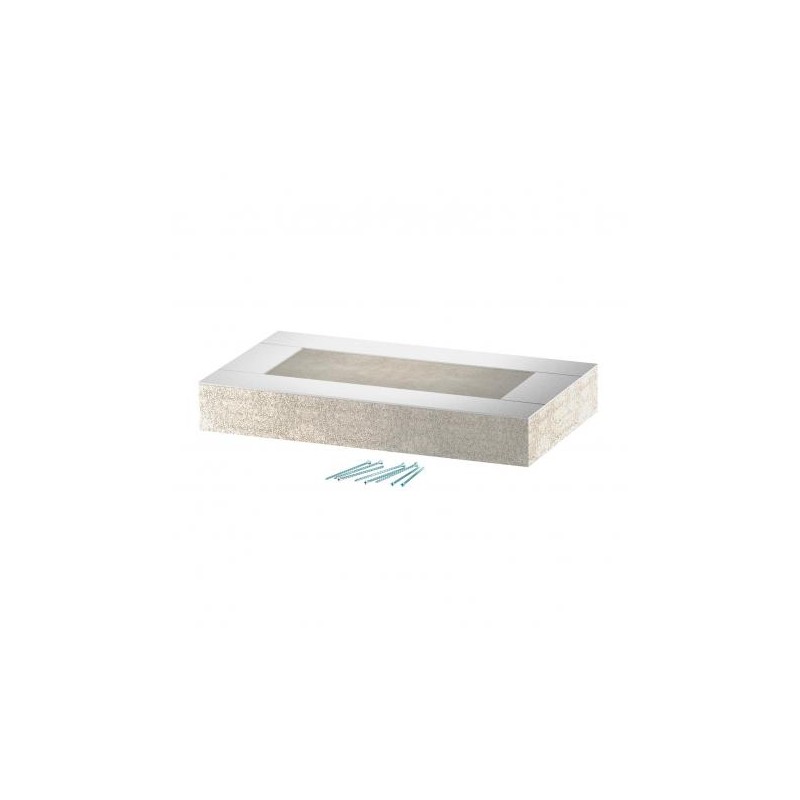

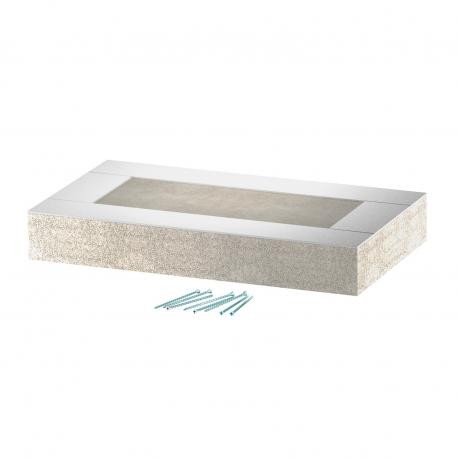

BSKD09-E1021 end cap, for BSKD09-K1021 105x210 Lightweight concrete with fiberglass
End cover BSKD09-E1021 for BSKD09-K1021 105x210 grey
End piece for PYROLINE® Con D BSKD09-K1021 fire protection duct. End piece for PYROLINE® Con D fire protection duct, type BSKD09-K1021, consisting of fibreglass lightweight concrete which is resistant to water and frost for closing the duct ends.Including countersunk head screws and stuck-on sealing strip.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Grey |
|---|---|
| Dimension | 105x210 |
| Dimension A | 40 mm |
| Dimension B | 290 mm |
| Dimension H | 168 mm |
| Dimension L | 40 mm |
| Fire resistance class E − function maintenance | 30 |
| Fire resistance class I − installation duct | 90 |
| Height | 168 mm |
|---|---|
| Jacketing | Without |
| Length | 40 mm |
| Material | Fibreglass lightweight concrete |
| Material of the insulation | Glass-fibre lightweight concrete |
| Number of flammable sides | 3 |
| Version for | Left/right |
| Width | 290 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Left/right |
| Fire resistance class I - installation duct (EF007765) | 90 |
| Fire resistance class E - circuit integrity (EF007764) | 30 |
| Outer height (EF008489) | 168 mm |
| Outer width (EF008488) | 290 mm |
| Number of flame resistant sides (EF007591) | 3 |
| Insulating material (EF002520) | Glass fibre enforced light concrete |
| Sheathing (EF008096) | None |
| Colour (EF000007) | Grey |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
