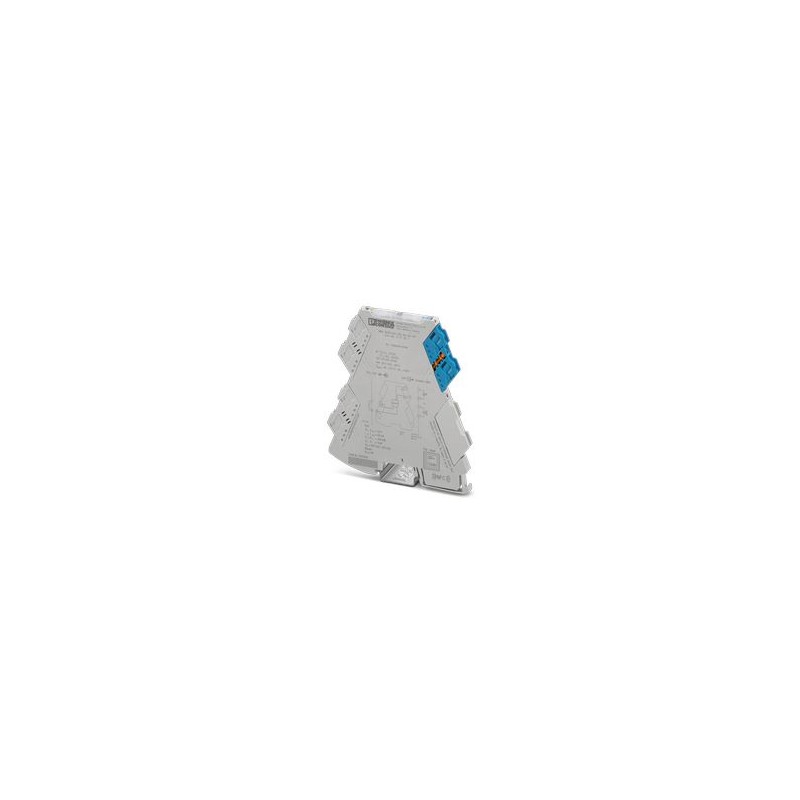

MINI MCR-EX-SD-20-25-LP 1157867 PHOENIX CONTACT Ex i-Valve control block to activate solenoid valves with in.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MINI MCR-EX-SD-20-25-LP 1157867 PHOENIX CONTACT Ex i-Valve control block to activate solenoid valves with in..

MINI MCR-EX-SD-20-25-LP

1157867

PHOENIX_CONTACT

Ex i-Valve control block to activate solenoid valves with intrinsic safety in the Ex zone. no-load voltage: 20 V DC, current limitation: 25 mA, Standard configuration, Loop-powered, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection

Ex i, Valve control block for operating intrinsically safe solenoid valves in the Ex. zone No-load voltage: 20 V, current limiting: 25 mA, Loop-powered, Safety Integrity Level (SIL, IEC61508): 3, Screw connection

Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. no-load voltage: 20 V DC, current limitation: 25 mA, Standard configuration, Loop-powered, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection

More details


Sensors > Isolation amplifier

INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $407.86
Unit price: $407.86
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Product properties
Product typeSolenoid driver
Product familyMINI Analog Pro
Electrical properties
Electrical isolation
Overvoltage categoryII (≤ 5000 m)
Pollution degree2 (≤ 5000 m)
Electrical isolation Input/output IEC/EN 61010-1
Standards/regulationsIEC/EN 61010-1
Rated insulation voltage300 Vrms
Test voltage2.5 kV AC (50 Hz, 60 s)
InsulationDouble/reinforced insulation
Electrical isolation Input/output IEC/EN 60079-11
Standards/regulationsIEC/EN 60079-11
Rated insulation voltage265 Vrms
Electrical isolation Input/output IEC/EN 60079-7
Standards/regulationsIEC/EN 60079-7
Rated insulation voltage251 Vrms
Supply
Supply voltage rangeloop-powered, no external supply necessary
Power consumption< 1 W
Input data
Signal: Voltage
Number of inputs1
Voltage input signal19.2 V DC ... 30 V DC (24 V DC, -20 % ... +25 %)
Output data
Signal: Voltage
Number of outputs1
Output voltage≥ 9.6 V DC (25 mA)
Output resistor≥ 413 Ω (Internal resistance Ri)
Current limitation> 25 mA
Response time< 50 ms
Non-load voltage> 20 V DC
Short-circuit-proofyes
Connection data
Cross section AWG(converted acc. to IEC)
Connection methodScrew connection
Stripping length10 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12 (flexible)
Tightening torque0.5 Nm ... 0.6 Nm
Ex data
Ex installation (EPL)Gc
Div. 2
Ex i circuits (EPL)Ga
Da
Ma
Div. 1
Safety data
Max. internal inductance Linegligible
Max. internal capacitance Ci11 nF
Max. output voltage Uo24 V
Max. output current Io59 mA
Max. output power Po354 mW
Safety-related maximum voltage Um253 V AC
125 V DC
IIA (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co70 mH / 3.33 µF
IIB/IIIC (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co30 mH / 919 nF
IIC (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co10 mH / 114 nF
I (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co90 mH / 5.23 µF
Dimensions
Width6.2 mm
Height109.81 mm
Depth119.2 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Altitude range (IEC/EN 61010-1)
Height range> 2000 m ... 3000 m
Ambient temperature (operation)-40 °C ... 63 °C
Rated insulation voltage300 Vrms(Input/output)
InsulationDouble/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range> 3000 m ... 4000 m
Ambient temperature (operation)-40 °C ... 56 °C
Rated insulation voltage300 Vrms(Input/output)
InsulationDouble/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range> 4000 m ... 5000 m
Ambient temperature (operation)-40 °C ... 49 °C
Rated insulation voltage150 Vrms(Input/output)
InsulationDouble/reinforced insulation
Altitude range (IEC/EN 60079-11)
Height range> 2000 m ... 3000 m
Ambient temperature (operation)-40 °C ... 63 °C
Safety-related maximum voltage Um121 V AC
110 V DC
Rated insulation voltage150 Vrms(Input/output)
Altitude range (IEC/EN 60079-11)
Height range> 3000 m ... 4000 m
Ambient temperature (operation)-40 °C ... 56 °C
Safety-related maximum voltage Um33 V AC/DC
Rated insulation voltage60 Vrms(Input/output)
Altitude range (IEC/EN 60079-11)
Height range> 4000 m ... 5000 m
Ambient temperature (operation)-40 °C ... 49 °C
Safety-related maximum voltage Um33 V AC/DC
Rated insulation voltage60 Vrms(Input/output)
Altitude range (IEC/EN 60079-7)
Height range> 2000 m ... 3000 m
Ambient temperature (operation)-40 °C ... 63 °C
Rated insulation voltage162 Vrms(Input/output)
Altitude range (IEC/EN 60079-7)
Height range> 3000 m ... 4000 m
Ambient temperature (operation)-40 °C ... 56 °C
Rated insulation voltage60 Vrms(Input/output)
Altitude range (IEC/EN 60079-7)
Height range> 4000 m ... 5000 m
Ambient temperature (operation)-40 °C ... 49 °C
Rated insulation voltage60 Vrms(Input/output)
Approvals
CE
CertificateCE-compliant
ATEX
Identification II (1) G [Ex ia Ga] IIC
 II (1) D [Ex ia Da] IIIC
 II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
 I (M1) [Ex ia Ma] I
CertificateTÜV 21 ATEX 8651 X
IECEx
Identification[Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc
[Ex ia Ma] I
CertificateIECEx TUR 21.0043 X
UKCA Ex (UKEX)
Identification II (1) G [Ex ia Ga] IIC
 II (1) D [Ex ia Da] IIIC
 II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
 I (M1) [Ex ia Ma] I
CertificateTÜV 21 UKEX 7021 X
CCC / China-Ex
Identification[Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc
Certificate2023122310116238
UL, USA/Canada
IdentificationUL 61010-2-201
Safety Integrity Level (SIL, IEC 61508)
Identification3
EMC data
Noise immunityIEC/EN 61000-6-2
IEC/EN 61326-3-2
Electromagnetic compatibilityTested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21
Noise emissionIEC/EN 61000-6-4
Standards and regulations
GB Standard
Standards/regulationsGB/T 3836.1
GB/T 3836.3
GB/T 3836.4

ETIM for 1157867 Sensors (EC002653)
Feature Name Feature Value
Number of input ranges -60 mV ... +60 mV (EF006927) 0
Number of input ranges -100 mV ... +100 mV (EF006912) 0
Number of input ranges -300 mV ... +300 mV (EF006920) 0
Number of input ranges -500 mV ... +500 mV (EF006926) 0
Number of input ranges -1 V ... +1 V (EF006906) 0
Number of input ranges -2 V ... +2 V (EF006913) 0
Number of input ranges -2.5 V ... +2.5 V (EF006915) 0
Number of input ranges -5 V ... +5 V (EF006923) 0
Number of input ranges -10 V ... +10 V (EF006909) 0
Number of input ranges -20 V ... +20 V (EF006917) 0
Number of input ranges 0 mV ... 60 mV (EF006905) 0
Number of input ranges 0 mV ... 100 mV (EF006893) 0
Number of input ranges 0 mV ... 200 mV (EF006898) 0
Number of input ranges 0 mV ... 300 mV (EF006901) 0
Number of input ranges 0 mV ... 500 mV (EF006904) 0
Number of input ranges 0 V ... 1 V (EF006890) 0
Number of input ranges 0 V ... 2 V (EF006894) 0
Number of input ranges 0 V ... 2.5 V (EF006895) 0
Number of input ranges 0 V ... 5 V (EF006903) 0
Number of input ranges 0 V ... 10 V (EF006892) 0
Number of input ranges 0 V ... 20 V (EF006897) 0
Number of input ranges 0 V ... 24 V (EF006899) 0
Number of input ranges 0 V ... 30 V (EF006900) 0
Number of input ranges 1 V ... 5 V (EF006907) 0
Number of input ranges 2 V ... 10 V (EF006914) 0
Number of input ranges +5 V ... -5 V (EF006889) 0
Number of input ranges +10 V ... -10 V (EF006888) 0
Number of input ranges 5 V ... 0 V (EF006924) 0
Number of input ranges 5 V ... 1 V (EF006925) 0
Number of input ranges 10 V ... 0 V (EF006910) 0
Number of input ranges 10 V ... 2 V (EF006911) 0
Number of input ranges 0 mA ... 5 mA (EF006902) 0
Number of input ranges 0 mA ... 10 mA (EF006891) 0
Number of input ranges 0 mA ... 20 mA (EF006896) 0
Number of input ranges 4 mA ... 20 mA (EF006921) 0
Number of input ranges -5 mA ... +5 mA (EF006922) 0
Number of input ranges -10 mA ... +10 mA (EF006908) 0
Number of input ranges -20 mA ... +20 mA (EF006916) 0
Number of input ranges 20 mA ... 0 mA (EF006918) 0
Number of input ranges 20 mA ... 4 mA (EF006919) 0
Number of output ranges -60 mV ... +60 mV (EF006880) 0
Number of output ranges -100 mV ... +100 mV (EF006865) 0
Number of output ranges -300 mV ... +300 mV (EF006873) 0
Number of output ranges -500 mV ... +500 mV (EF006879) 0
Number of output ranges -1 V ... +1 V (EF006859) 0
Number of output ranges -2 V ... +2 V (EF006866) 0
Number of output ranges -2.5 V ... +2.5 V (EF006868) 0
Number of output ranges -5 V ... +5 V (EF006876) 0
Number of output ranges -10 V ... +10 V (EF006862) 0
Number of output ranges -20 V ... +20 V (EF006870) 0
Number of output ranges 0 mV ... 60 mV (EF006858) 0
Number of output ranges 0 mV ... 100 mV (EF006846) 0
Number of output ranges 0 mV ... 200 mV (EF006851) 0
Number of output ranges 0 mV ... 300 mV (EF006854) 0
Number of output ranges 0 mV ... 500 mV (EF006857) 0
Number of output ranges 0 V ... 1 V (EF006843) 0
Number of output ranges 0 V ... 2 V (EF006847) 0
Number of output ranges 0 V ... 2.5 V (EF006848) 0
Number of output ranges 0 V ... 5 V (EF006856) 0
Number of output ranges 0 V ... 10 V (EF006845) 0
Number of output ranges 0 V ... 20 V (EF006850) 0
Number of output ranges 0 V ... 24 V (EF006852) 0
Number of output ranges 0 V ... 30 V (EF006853) 0
Number of output ranges 1 V ... 5 V (EF006860) 0
Number of output ranges 2 V ... 10 V (EF006867) 0
Number of output ranges +5 V ... -5 V (EF006842) 0
Number of output ranges +10 V ... -10 V (EF006841) 0
Number of output ranges 5 V ... 0 V (EF006877) 0
Number of output ranges 5 V ... 1 V (EF006878) 0
Number of output ranges 10 V ... 0 V (EF006863) 0
Number of output ranges 10 V ... 2 V (EF006864) 0
Number of output ranges 0 mA ... 5 mA (EF006855) 0
Number of output ranges 0 mA ... 10 mA (EF006844) 0
Number of output ranges 0 mA ... 20 mA (EF006849) 0
Number of output ranges 4 mA ... 20 mA (EF006874) 0
Number of output ranges -5 mA ... +5 mA (EF006875) 0
Number of output ranges -10 mA ... +10 mA (EF006861) 0
Number of output ranges -20 mA ... +20 mA (EF006869) 0
Number of output ranges 20 mA ... 0 mA (EF006871) 0
Number of output ranges 20 mA ... 4 mA (EF006872) 0
Malfunction message output (EF007499) No
Inherently safe according to EN 60947-5-6 NAMUR (EF007112) No
Height (EF000040) 109.81 mm
Width (EF000008) 6.2 mm
Depth (EF000049) 119.2 mm
Power consumption (EF000346) 1 W
Operating temperature (EF002393) -40 °C
Type of electric connection (EF003961) Screw connection
Mounting method (EF000003) Snap mounting support rail
Degree of protection (IP) (EF005474) IP20
