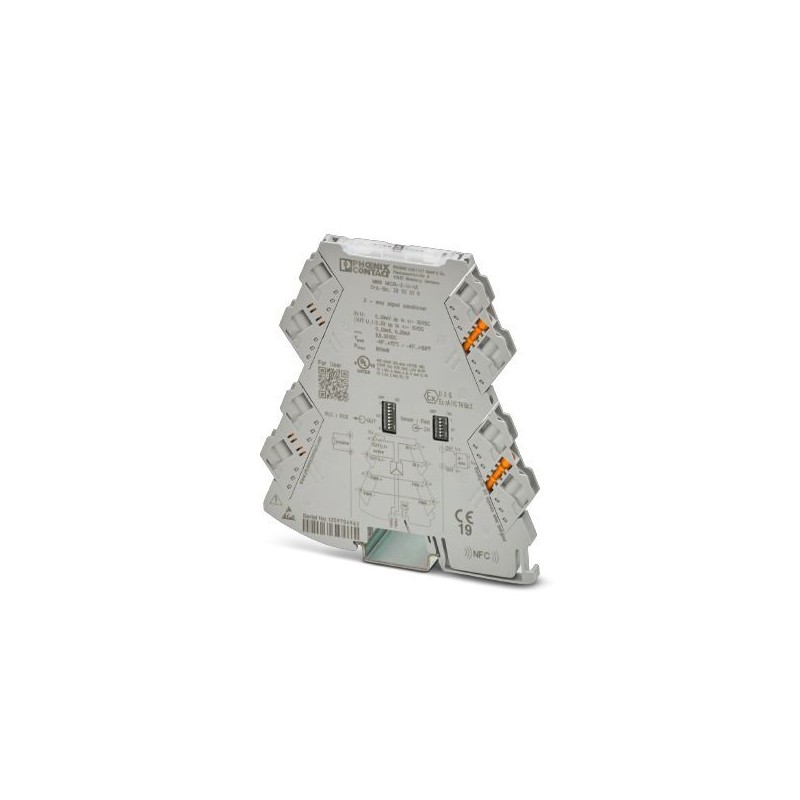

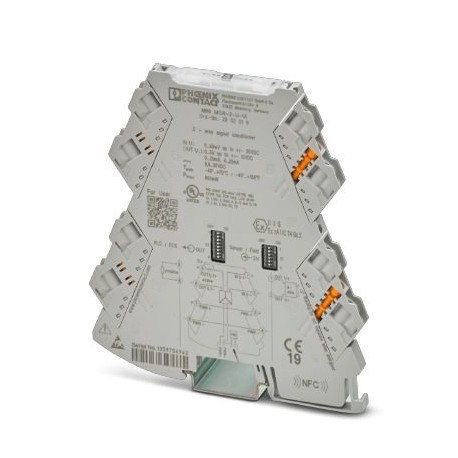

MINI MCR-2-U-UI 2902019 PHOENIX CONTACT 3-way signal conditioner, with configurable input/output, for electr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MINI MCR-2-U-UI 2902019 PHOENIX CONTACT 3-way signal conditioner, with configurable input/output, for electr..

MINI MCR-2-U-UI

2902019

PHOENIX_CONTACT

3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals in the mV and V range, unipolar as well as bipolar. Screw connection technology, standard configuration.

More details


INTERFACE Components (IF)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $272.50
Unit price: $272.50

Quantity Price
1+$272.50
2+$254.39
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Key Commercial Data

Orderkey2902019
Packing unit1 pc
Catalog pagePage 74 (C-5-2019)
GTIN4046356649674
Weight per Piece (excluding packing)140.000 g
Custom tariff number85437090
Country of originDE (Germany)

Drawings

Block diagram

Block diagram

Pictogram

Pictogram

Back to top

Dimensions

Width6.2 mm
Height109.81 mm
Depth119.2 mm
Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Degree of protectionIP20 (not assessed by UL)
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Back to top

Input data

Number of inputs1
Configurable/programmableYes
Voltage input signal-50 mV ... 50 mV (via DIP switch)
0 mV ... 50 mV (via DIP switch)
-60 mV ... 60 mV (via DIP switch)
0 mV ... 60 mV (via DIP switch)
-75 mV ... 75 mV (via DIP switch)
0 mV ... 75 mV (via DIP switch)
-80 mV ... 80 mV (via DIP switch)
0 mV ... 80 mV (via DIP switch)
-100 mV ... 100 mV (via DIP switch)
0 mV ... 100 mV (via DIP switch)
-120 mV ... 120 mV (via DIP switch)
0 mV ... 120 mV (via DIP switch)
-150 mV ... 150 mV (via DIP switch)
0 mV ... 150 mV (via DIP switch)
-200 mV ... 200 mV (via DIP switch)
0 mV ... 200 mV (via DIP switch)
-240 mV ... 240 mV (via DIP switch)
0 mV ... 240 mV (via DIP switch)
-300 mV ... 300 mV (via DIP switch)
0 mV ... 300 mV (via DIP switch)
-500 mV ... 500 mV (via DIP switch)
0 mV ... 500 mV (via DIP switch)
-600 mV ... 600 mV (via DIP switch)
0 mV ... 600 mV (via DIP switch)
-750 mV ... 750 mV (via DIP switch)
0 mV ... 750 mV (via DIP switch)
-800 mV ... 800 mV (via DIP switch)
0 mV ... 800 mV (via DIP switch)
-1 V ... 1 V (via DIP switch)
0 V ... 1 V (via DIP switch)
-1.2 V ... 1.2 V (via DIP switch)
0 V ... 1.2 V (via DIP switch)
-1.5 V ... 1.5 V (via DIP switch)
0 V ... 1.5 V (via DIP switch)
-2 V ... 2 V (via DIP switch)
0 V ... 2 V (via DIP switch)
-2.4 V ... 2.4 V (via DIP switch)
0 V ... 2.4 V (via DIP switch)
-3 V ... 3 V (via DIP switch)
0 V ... 3 V (via DIP switch)
-5 V ... 5 V (via DIP switch)
0 V ... 5 V (via DIP switch)
-6 V ... 6 V (via DIP switch)
0 V ... 6 V (via DIP switch)
-7.5 V ... 7.5 V (via DIP switch)
0 V ... 7.5 V (via DIP switch)
-8 V ... 8 V (via DIP switch)
0 V ... 8 V (via DIP switch)
-10 V ... 10 V (via DIP switch)
0 V ... 10 V (via DIP switch)
-12 V ... 12 V (via DIP switch)
0 V ... 12 V (via DIP switch)
-15 V ... 15 V (via DIP switch)
0 V ... 15 V (via DIP switch)
-20 V ... 20 V (via DIP switch)
0 V ... 20 V (via DIP switch)
-24 V ... 24 V (via DIP switch)
0 V ... 24 V (via DIP switch)
-30 V ... 30 V (via DIP switch)
0 V ... 30 V (via DIP switch)
max. input voltage33 V
Input resistance of voltage input> 10 kΩ
Back to top

Output data

Number of outputs1
Configurable/programmableYes
Voltage output signal0 V ... 5 V (via DIP switch)
1 V ... 5 V (via DIP switch)
-5 V ... 5 V (via DIP switch)
0 V ... 10 V (via DIP switch)
2 V ... 10 V (via DIP switch)
-10 V ... 10 V (via DIP switch)
Current output signal0 mA ... 20 mA (via DIP switch)
4 mA ... 20 mA (via DIP switch)
Max. output current22 mA
Short-circuit current< 32 mA
Load/output load voltage output≥ 10 kΩ
Load/output load current output≤ 600 Ω (at 20 mA)
Ripple< 20 mVPP(at 600 Ω)
< 20 mVPP(at 600 Ω)
Back to top

Power supply

Nominal supply voltage24 V DC
Supply voltage range9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
Typical current consumption25 mA (Current output, at 24 V DC incl. load)
54 mA (Current output, at 12 V DC incl. load)
Power consumption≤ 800 mW (at IOUT= 20 mA, 9.6 V DC, 600 Ω load)
Back to top

Connection data

Connection methodScrew connection
Stripping length10 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 1.5 mm² (with ferrule)
0.2 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 12 (flexible)
Back to top

General

No. of channels1
Maximum transmission error≤ 0.1 % (of final value)
Maximum temperature coefficient0.01 %/K
Limit frequency (3 dB)30 Hz (via DIP switch)
5 kHz (via DIP switch)
Step response (10-90%)< 8.5 ms (with 30 Hz filter)
Protective circuitTransient protection
Electrical isolationReinforced insulation in accordance with IEC 61010-1
Overvoltage categoryII
Degree of pollution2
Rated insulation voltage300 V
Test voltage, input/output/supply3 kV (50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Colorgray
Housing materialPBT
Mounting positionany
Assembly instructionsThe T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715.
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2
Back to top

EMC data

DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
DesignationFast transients (burst)
Standards/regulationsEN 61000-4-4
DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Back to top

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Standards/regulationsEN 61000-4-2
DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
EN 61000-4-4
EN 61000-4-5
DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Electrical isolationReinforced insulation in accordance with IEC 61010-1
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027210100
eCl@ss 4.127210100
eCl@ss 5.027210100
eCl@ss 5.127210100
eCl@ss 6.027210100
eCl@ss 7.027210120
eCl@ss 8.027210120
eCl@ss 9.027210120
Back to top

ETIM

ETIM 4.0EC002653
ETIM 5.0EC002653
ETIM 6.0EC002653
ETIM 7.0EC002653
Back to top

UNSPSC

UNSPSC 6.0130211502
UNSPSC 7.090139121004
UNSPSC 1139121004
UNSPSC 12.0139121004
UNSPSC 13.239121008
UNSPSC 18.039121008
UNSPSC 19.039121008
UNSPSC 20.039121008
UNSPSC 21.039121008
Back to top
