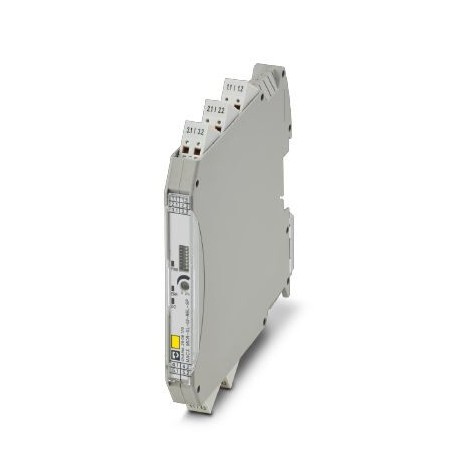

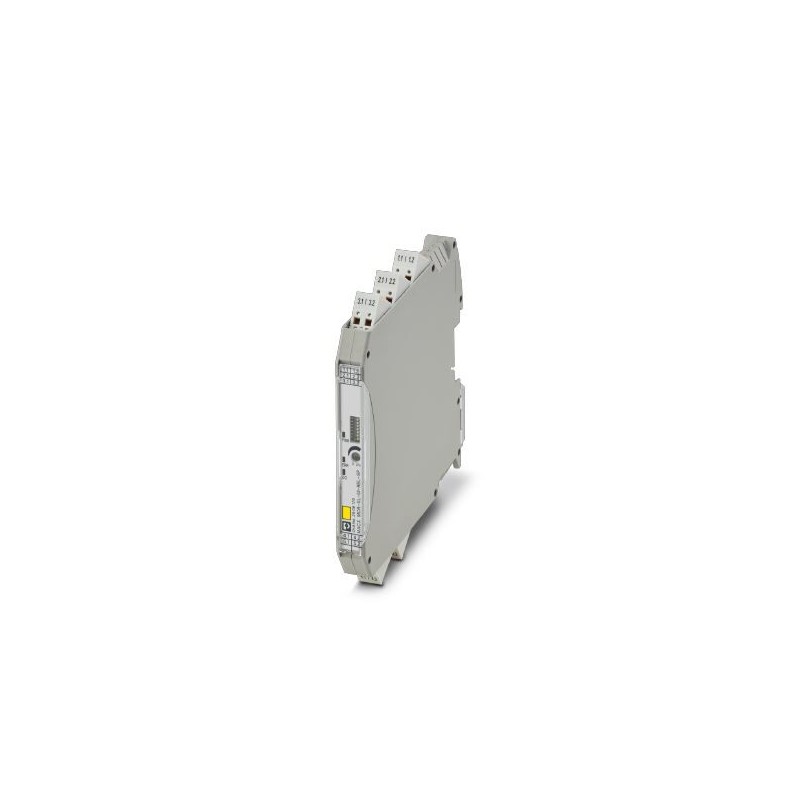

MACX MCR-SL-UI-REL-SP 2906170 PHOENIX CONTACT Limit value switch with input for active current and voltage s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MACX MCR-SL-UI-REL-SP 2906170 PHOENIX CONTACT Limit value switch with input for active current and voltage s..

MACX MCR-SL-UI-REL-SP

2906170

PHOENIX_CONTACT

Limit value switch with input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, up to SIL2 (SC3), PLc Cat.1, Push-in connection.

Limit value switch with input for active voltage and current signals and a limit value relay output (switched contact). Adjustable with DIP switch and potentiometer, 3-way galvanic separation, up to SIL2 (SC3), PLc cat.1, push-in connection.

More details


Sensors > Isolation amplifier

INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $552.02
Unit price: $552.02
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey2906170
Packing unit1
Catalog pagePage 140 (C-5-2019)
GTIN4055626043906
Custom tariff number85437090

Drawings

Block diagram

Block diagram

Pictogram

Pictogram

Back to top

Dimensions

Width12.5 mm
Height99 mm
Depth114.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-20 °C ... 65 °C (Any mounting position)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Maximum altitude≤ 2000 m
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Back to top

Input data

Voltage input signal0.1 V ... 10 V
Current input signal0.2 mA ... 20 mA
0.18 mA ... 21 mA (Maximum range)
Input resistance of voltage input> 100 kΩ
Input resistance current input< 28 Ω
Switching hysteresisoff: approx. 0.5 %, on: approx. 1 %
Line fault detectionBreak U
Short circuit U > 10.8 V, I > 21.1 mA
Back to top

Output data

Output nameRelay output
Contact type1 PDT
Contact materialAgSnO2, hard gold-plated
Max. switching current≤ 4 A AC (cos phi = 1)
≤ 1 A DC (ohmic load, 24 V DC, 50 mW)
≤ 0.2 A DC (ohmic load, 120 V DC)
Mechanical service life≤ 107cycles
Back to top

Power supply

Nominal supply voltage24 V DC
Supply voltage range9.6 V DC ... 30 V DC (12 V DC ... 24 V DC (-20 % ... +25 %))
Typical current consumption38 mA (24 V DC)
Max. current consumption90 mA (10 V DC)
Power dissipation< 0.9 W
Power consumption≤ 1.2 W
Back to top

General

Maximum transmission error0.1 %
Maximum temperature coefficient0.01 %/K
Step response (0–99%)≤ 22 ms
Status displayGreen LED (supply voltage, PWR)
Red LED, flashing (line, sensor error, ERR)
Yellow LED (switching output)
Degree of pollution2
Overvoltage categoryII
Electromagnetic compatibilityConformance with EMC directive
Interference emissionEN 61000-6-4
Housing materialPA 6.6-FR
DesignationInput/output
Electrical isolation375 V (Peak value in accordance with EN 60079-11)
DesignationInput/output/supply, DIN rail connector
Electrical isolation300 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1))
2.5 kV (50 Hz, 1 min., test voltage)
DesignationInput/supply, DIN rail connector
Electrical isolation375 V (Peak value in accordance with EN 60079-11)
ConformanceCE-compliant, additionally EN 61326
ATEX II 3 G Ex ec nC IIC T4 Gc
IECExEx ec nC IIC T4 Gc
UL, USA/CanadaUL applied for
SIL2
Back to top

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
ConformanceCE-compliant, additionally EN 61326
ATEX II 3 G Ex ec nC IIC T4 Gc
IECExEx ec nC IIC T4 Gc
UL, USA/CanadaUL applied for
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027210100
eCl@ss 4.127210100
eCl@ss 5.027210100
eCl@ss 5.127210100
eCl@ss 6.027210100
eCl@ss 7.027210120
eCl@ss 8.027210120
eCl@ss 9.027210120
Back to top

ETIM

ETIM 4.0EC002653
ETIM 5.0EC002653
ETIM 6.0EC002653
ETIM 7.0EC002653
Back to top

ETIM for 2906170 Sensors (EC002653)
Feature Name Feature Value
Rated supply voltage DC (EF007078) 9.6 V
Number of input ranges -60 mV ... +60 mV (EF006927) 0
Number of input ranges -100 mV ... +100 mV (EF006912) 0
Number of input ranges -300 mV ... +300 mV (EF006920) 0
Number of input ranges -500 mV ... +500 mV (EF006926) 0
Number of input ranges -1 V ... +1 V (EF006906) 0
Number of input ranges -2 V ... +2 V (EF006913) 0
Number of input ranges -2.5 V ... +2.5 V (EF006915) 0
Number of input ranges -5 V ... +5 V (EF006923) 0
Number of input ranges -10 V ... +10 V (EF006909) 0
Number of input ranges -20 V ... +20 V (EF006917) 0
Number of input ranges 0 mV ... 60 mV (EF006905) 0
Number of input ranges 0 mV ... 100 mV (EF006893) 0
Number of input ranges 0 mV ... 200 mV (EF006898) 0
Number of input ranges 0 mV ... 300 mV (EF006901) 0
Number of input ranges 0 mV ... 500 mV (EF006904) 0
Number of input ranges 0 V ... 1 V (EF006890) 0
Number of input ranges 0 V ... 2 V (EF006894) 0
Number of input ranges 0 V ... 2.5 V (EF006895) 0
Number of input ranges 0 V ... 5 V (EF006903) 0
Number of input ranges 0 V ... 10 V (EF006892) 1
Number of input ranges 0 V ... 20 V (EF006897) 0
Number of input ranges 0 V ... 24 V (EF006899) 0
Number of input ranges 0 V ... 30 V (EF006900) 0
Number of input ranges 1 V ... 5 V (EF006907) 0
Number of input ranges 2 V ... 10 V (EF006914) 0
Number of input ranges +5 V ... -5 V (EF006889) 0
Number of input ranges +10 V ... -10 V (EF006888) 0
Number of input ranges 5 V ... 0 V (EF006924) 0
Number of input ranges 5 V ... 1 V (EF006925) 0
Number of input ranges 10 V ... 0 V (EF006910) 0
Number of input ranges 10 V ... 2 V (EF006911) 0
Number of input ranges 0 mA ... 5 mA (EF006902) 0
Number of input ranges 0 mA ... 10 mA (EF006891) 0
Number of input ranges 0 mA ... 20 mA (EF006896) 1
Number of input ranges 4 mA ... 20 mA (EF006921) 1
Number of input ranges -5 mA ... +5 mA (EF006922) 0
Number of input ranges -10 mA ... +10 mA (EF006908) 0
Number of input ranges -20 mA ... +20 mA (EF006916) 0
Number of input ranges 20 mA ... 0 mA (EF006918) 0
Number of input ranges 20 mA ... 4 mA (EF006919) 0
Number of output ranges -60 mV ... +60 mV (EF006880) 0
Number of output ranges -100 mV ... +100 mV (EF006865) 0
Number of output ranges -300 mV ... +300 mV (EF006873) 0
Number of output ranges -500 mV ... +500 mV (EF006879) 0
Number of output ranges -1 V ... +1 V (EF006859) 0
Number of output ranges -2 V ... +2 V (EF006866) 0
Number of output ranges -2.5 V ... +2.5 V (EF006868) 0
Number of output ranges -5 V ... +5 V (EF006876) 0
Number of output ranges -10 V ... +10 V (EF006862) 0
Number of output ranges -20 V ... +20 V (EF006870) 0
Number of output ranges 0 mV ... 60 mV (EF006858) 0
Number of output ranges 0 mV ... 100 mV (EF006846) 0
Number of output ranges 0 mV ... 200 mV (EF006851) 0
Number of output ranges 0 mV ... 300 mV (EF006854) 0
Number of output ranges 0 mV ... 500 mV (EF006857) 0
Number of output ranges 0 V ... 1 V (EF006843) 0
Number of output ranges 0 V ... 2 V (EF006847) 0
Number of output ranges 0 V ... 2.5 V (EF006848) 0
Number of output ranges 0 V ... 5 V (EF006856) 0
Number of output ranges 0 V ... 10 V (EF006845) 0
Number of output ranges 0 V ... 20 V (EF006850) 0
Number of output ranges 0 V ... 24 V (EF006852) 0
Number of output ranges 0 V ... 30 V (EF006853) 0
Number of output ranges 1 V ... 5 V (EF006860) 0
Number of output ranges 2 V ... 10 V (EF006867) 0
Number of output ranges +5 V ... -5 V (EF006842) 0
Number of output ranges +10 V ... -10 V (EF006841) 0
Number of output ranges 5 V ... 0 V (EF006877) 0
Number of output ranges 5 V ... 1 V (EF006878) 0
Number of output ranges 10 V ... 0 V (EF006863) 0
Number of output ranges 10 V ... 2 V (EF006864) 0
Number of output ranges 0 mA ... 5 mA (EF006855) 0
Number of output ranges 0 mA ... 10 mA (EF006844) 0
Number of output ranges 0 mA ... 20 mA (EF006849) 0
Number of output ranges 4 mA ... 20 mA (EF006874) 0
Number of output ranges -5 mA ... +5 mA (EF006875) 0
Number of output ranges -10 mA ... +10 mA (EF006861) 0
Number of output ranges -20 mA ... +20 mA (EF006869) 0
Number of output ranges 20 mA ... 0 mA (EF006871) 0
Number of output ranges 20 mA ... 4 mA (EF006872) 0
Malfunction message output (EF007499) No
Inherently safe according to EN 60947-5-6 NAMUR (EF007112) No
Height (EF000040) 116 mm
Width (EF000008) 12.5 mm
Depth (EF000049) 113.7 mm
Power consumption (EF000346) 1.2 W
Operating temperature (EF002393) -20 °C
Temperature drift (EF007507) 0.01 %/K
Construction type of device (EF007276) Built-in device
Type of electric connection (EF003961) Other
Mounting method (EF000003) Snap mounting support rail
Degree of protection (IP) (EF005474) IP20

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf 29 Mbytes
