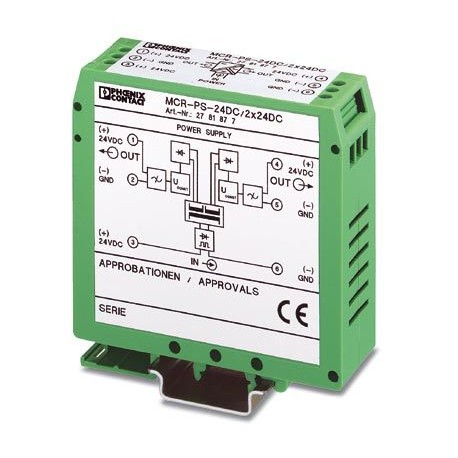

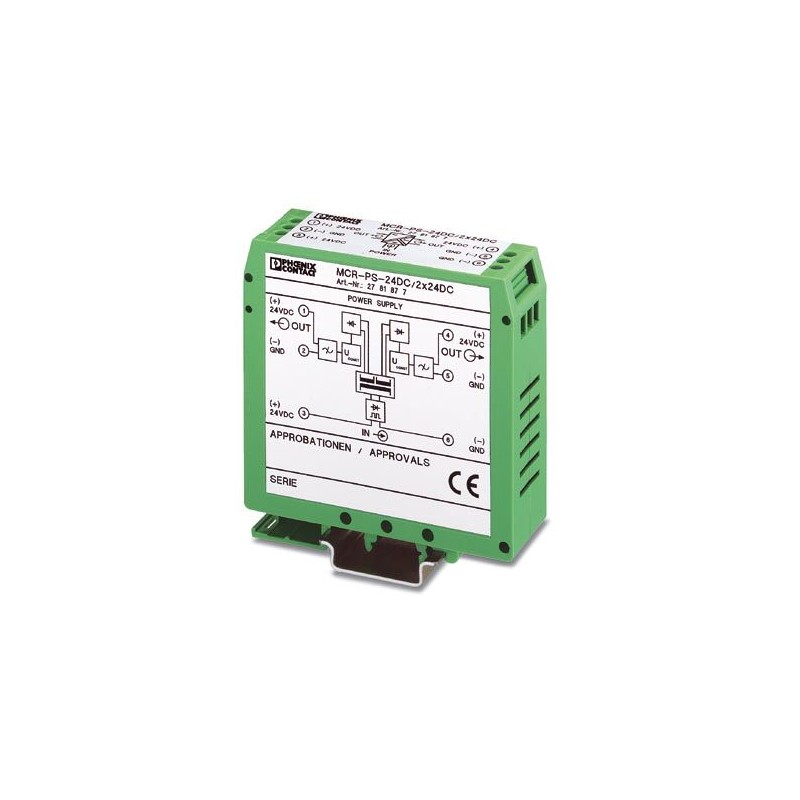

MCR-PS- 24DC/2X24DC 2781877 PHOENIX CONTACT Auxiliary contactor
MCR-PS-24DC/2X24DC
2781877
PHOENIX_CONTACT
Auxiliary contactor
DC/DC converter, with galvanic separation of outputs, 24 V DC input, 2 x 24 V DC/2 x 30 mA output
Low-voltage industrial components > DC-power supply
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2781877 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4017918069247 |
| Weight per Piece (excluding packing) | 96.900 g |
| Custom tariff number | 85044082 |
| Country of origin | PL (Poland) |
Input data
| Nominal input voltage | 24 V DC ±10 % |
|---|---|
| Input voltage range | 21.6 V DC ... 26.4 V DC |
| Current consumption | approx. 100 mA |
Output data
| Nominal output voltage | 24 V DC (2x) |
|---|---|
| Nominal output current (IN) | 30 mA (2x) |
| Residual ripple | ≤ 50 mVPP |
General
| Net weight | 0.14 kg |
|---|---|
| Operating mode | 100% operating factor |
| Test voltage input/output | 2.5 kV AC |
| Test voltage output/output | 1.5 kV AC |
| Degree of protection | IP20 |
| Mounting position | any |
| Assembly instructions | any |
Connection data, input
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Connection data, output
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027230209eCl@ss 4.127230209eCl@ss 5.027230209eCl@ss 5.127210900eCl@ss 6.027210900eCl@ss 7.027210901eCl@ss 8.027210901eCl@ss 9.027210901
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| 1st secondary output voltage (EF006792) | 24 V |
| Max. output current 1 (EF008284) | 0.03 A |
| Secondary voltage adjustable (EF007002) | No |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output current 1 (EF009396) | 0.03 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage DC (EF007078) | 21.6 V |
| Output voltage stabilized (EF003092) | Yes |
| Power output (EF003034) | 1.5 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in height (EF000332) | 85.5 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 25 mm |
| Height (EF000040) | 85.5 mm |
| Depth (EF000049) | 79 mm |
| Suitable for safety functions (EF001597) | Yes |
| SIL according to IEC 61508 (EF009889) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
