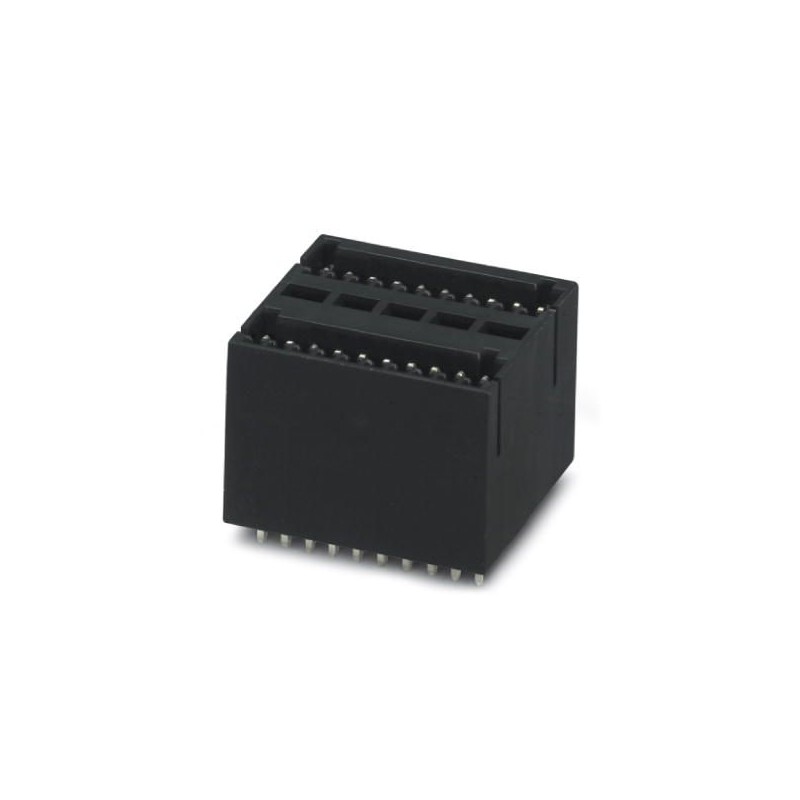

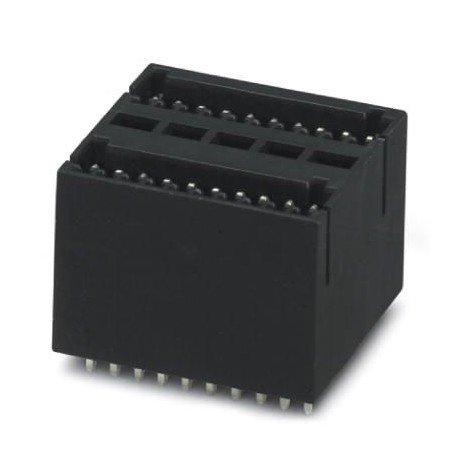

MCDV 0,5/ 9-G1-2,5 HT BK 1961313 PHOENIX CONTACT Printed-circuit board connector
MCDV 0,5/ 9-G1-2,5 HT BK
1961313
PHOENIX_CONTACT
50
Printed-circuit board connector
Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 4 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, Number of potentials: 18, Number of rows: 2, Number of poles per row: 9, number of connections: 18, family of articles: MCDV 0.5/.. -G1-HT, pitch: 2.5 mm, mounting: THR soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, Stecksystem: MICRO COMBICON - FK-MC 0.5, Locking: without, packaging type: boxed, Standard high-temperature resistant plastic component; Suitable for reflow soldering processes. For user information and design recommendations on Through Hole Reflow technology, see "Downloads"
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1961313 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 79 (CC-2005) |
| GTIN | 4017918912635 |
| Weight per Piece (excluding packing) | 9.290 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 21.9 mm |
|---|---|
| Pitch | 2.5 mm |
| Dimension a | 20 mm |
| Height [ h ] | 17.5 mm |
| Height | 18 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Pin spacing | 2.50 mm |
| Length | 21.9 mm |
General
| Range of articles | MCDV 0,5/..-G1-HT |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 32 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 4 A |
| Maximum load current | 4 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 9 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
