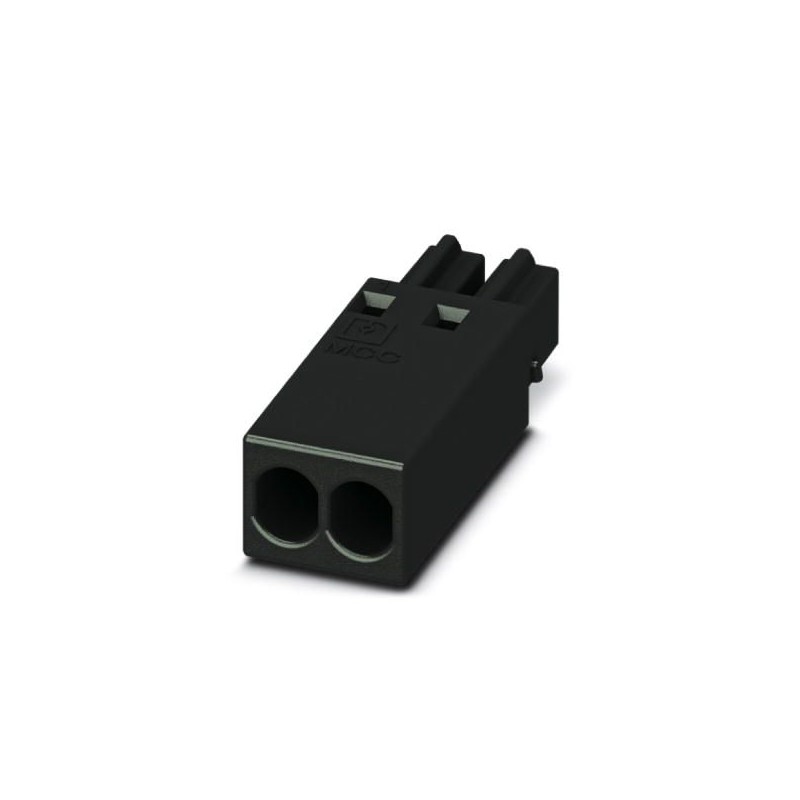

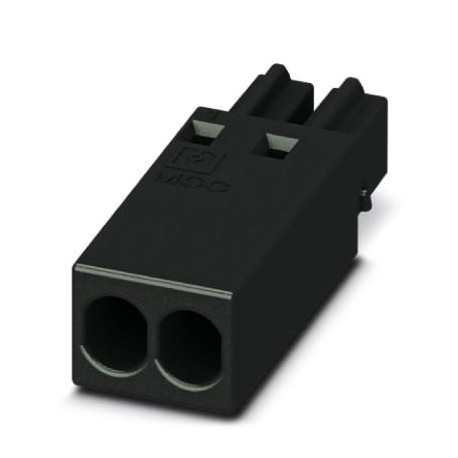

MCC 0,5/ 2-ST-2,54 1012266 PHOENIX CONTACT Printed-circuit board connector
MCC 0,5/ 2-ST-2,54
1012266
PHOENIX_CONTACT
250
Printed-circuit board connector
Connector for printed circuit board, nominal section: 0.75 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: MCC 0.5/.. -ST, pitch: 2.54 mm, connection type: Crimped connection, conductor connection direction/printed circuit board: 0°, plug-in system: COMBICON FMC 0.5, lock: without, fixing type: without, packaging type: boxed
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1012266 |
|---|---|
| Packing unit | 250 pc |
| Minimum order quantity | 250 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626487977 |
| Weight per Piece (excluding packing) | 0.290 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Printed-circuit board connector |
|---|---|
| Plug-in system | MICRO COMBICON - FMC 0,5 |
| Type of contact | Female connector |
| Range of articles | MCC 0,5/..-ST |
| Pitch | 2.54 mm |
| Number of positions | 2 |
| Connection method | Crimp connection |
| Number of levels | 1 |
Electrical parameters
| Rated current | 6 A |
|---|---|
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
Connection capacity
| Conductor cross section flexible | 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9 mm) |
|---|---|
| Conductor cross section AWG / kcmil | 26 ... 18 (Maximum external diameter of the insulation 1.9 mm) |
| Stripping length | 4.1 mm ... 4.5 mm |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Length [ l ] | 16 mm |
|---|---|
| Width [ w ] | 5.58 mm |
| Height [ h ] | 3.95 mm |
| Pitch | 2.54 mm |
| Height (without solder pin) | 3.95 mm |
| Dimension a | 2.54 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 250 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Mechanical tests according to standard
| Test specification | IEC 61984 |
|---|---|
| Visual examination | Test passed IEC 60512-1-1:2002-02 |
| Dimensional test | Test passed IEC 60512-1-2:2002-02 |
| Resistance of marking | Test passed IEC 60068-2-70:1995-12 |
| Result | Test passed |
| Specification | IEC 60512-13-2:2006-02 |
| No. of cycles | 100 |
| Insertion strength per pos. approx. | 2 N |
| Withdraw strength per pos. approx. | 3 N |
| Polarization and coding | Test passed IEC 60512-13-5:2006-02 |
| Result | Test passed |
| Specification | IEC 60512-15-1:2008-05 |
| Test force per pos. | 20 N |
Air clearances and creepage distances
| Specification | IEC 60664-1:2007-04 |
|---|---|
| Insulating material group | I |
| Voltage | 160 V |
| Rated insulation voltage (III/3) | 160 V |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (II/2) | 320 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
Mechanical tests (A)
| Test specification | IEC 61984 |
|---|---|
| Insertion strength per pos. approx. | 2 N |
| Withdraw strength per pos. approx. | 3 N |
| Polarization when inserted requirement >20 N | Test passed |
| Contact holder in insert requirements >20 N | Test passed |
Durability tests (B)
| Specification | IEC 60512-9-1:2010-03 |
|---|---|
| Contact resistance R1 | 2.1 mΩ |
| Insertion/withdrawal cycles | 100 |
| Contact resistance R2 | 2.1 mΩ |
| Impulse withstand voltage at sea level | 2.95 kV |
| Power-frequency withstand voltage | 1.39 kV |
| Insulation resistance, neighboring positions | > 12 TΩ |
Climatic tests (D)
| Specification | DIN 50018:2013-05 |
|---|---|
| Cold stress | -55 °C/2 h |
| Thermal stress | 105 °C/168 h |
| Corrosive stress | 1.0 dm3SO2on 300 dm3/40 °C/1 cycle |
| Impulse withstand voltage at sea level | 2.95 kV |
| Power-frequency withstand voltage | 1.39 kV |
Environmental and durability tests (E)
| Specification | IEC 61984:2008-10 |
|---|---|
| Result, degree of protection, IP code | Back of hand safety with IP10 access probe |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 2 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 2.54 mm |
| Modular spacing connections (EF006827) | 2.54 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
