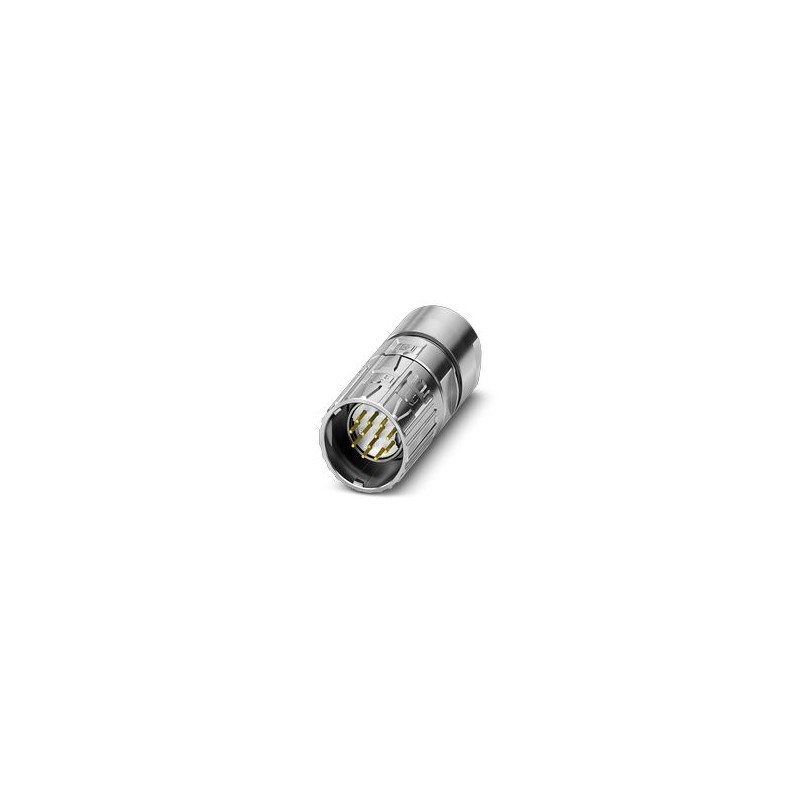

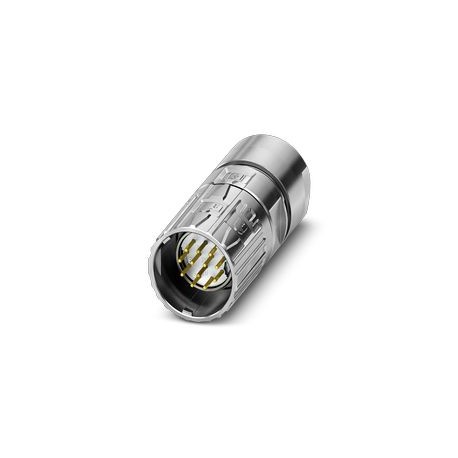

M23-12P1N1280DUS 1342202 PHOENIX CONTACT M23, Cable connector, series: M23 PRO, straight, shielded: yes, Qui..
M23-12P1N1280DUS
1342202
PHOENIX_CONTACT
M23, Cable connector, series: M23 PRO, straight, shielded: yes, Quick lock ONECLICK, No. of poles: 12, Rotation direction: Standard, contact connection type: Male, Solder connection, cable diameter range: 3 mm ... 15 mm, coding: N, The article does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1 %)
M23, Cable connector, M23 PRO, straight, shielded: yes, ONECLICK quick lock, No. of poles: 12, Direction of rotation: Standard, contact type: Male, Weld connection, cable diameter range: 3 mm ... 15 mm, encoding:N, The article does not contain lead according to the RoHS II directive without the 6c exception (Pb< 0.1%)
M23, Cable Connector, Series: M23 PRO, Straight, Shielded: Yes, ONECLICK Quick Lock, No. of Poles: 12, Direction of Rotation: Standard, Contact Connection Type: Male, Weld Connection, Cable Diameter Range: 3 mm ... 15 mm, encoding: N, Item is lead-free according to RoHS II without exception 6c (Pb< 0.1%)
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Look at the rating curve. |
| Safety Indication | |
| Safety Notes | WARNING: Connectors should not be plugged in or unplugged under load. Failure to comply and improper use can result in property damage and personal injury. |
| • WARNING: Serve only products in perfect condition. Products should be checked regularly for damage. Remove defective products immediately. Replace damaged products. It is not possible to repair them. | |
| • WARNING: only qualified personnel specialized in electrical engineering can install and use the product, always taking into account the following safety indications. Specialized personnel must be familiar with the fundamentals of electrical engineering. You must be able to identify and avoid hazards. The corresponding symbol on the packaging indicates that personnel specialized in electrical engineering are required for installation and operation. | |
| • The products are suitable for the areas of application of the construction of electrical equipment, control systems and systems. | |
| • If connectors are used outdoors, they must be protected in particular from environmental influences. | |
| • Ready-made products may not be tampered with or opened in an unauthorized manner. | |
| • Use only mating connectors that comply with the technical data of the specified standards (e.g. those indicated on the product accessories on the website on phoenixcontact.com/products). | |
| • The user is responsible for using the product directly in conjunction with products from other manufacturers. | |
| • With operating voltages > 50 V AC, electrically conductive connector housings must be grounded | |
| • Check that the functional or protective ground is properly connected. | |
| • When grouping several electrical circuits together in one cable and/or connector, VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 apply | |
| • Only use the tool recommended by Phoenix Contact | |
| • Please note the Design In assembly/documentation instructions in the download area of the product website on phoenixcontact.com/products. | |
| • Use connectors only fully plugged in and locked. | |
| • When laying the cable, check that the tensile load applied to the connectors does not exceed the limits set out in the standards. | |
| • Respect the minimum bending radius of the cable. Lay the cord without forcing it. | |
| • The connector heats up during normal operation. Depending on the ambient conditions, the surface of the connector may also heat up. In this case, the user will be responsible for affixing the warning indications (e.g. DIN EN ISO 13732-1:2008-12). | |
| Product Type | Circular connector (cable side) |
| Insulating body | |
| Codification | N |
| Material: Insulating body | AP 6.6 |
| Contact material | CuZn |
| Material: Contact Surface | Ni/AU |
| Plug Cycles | 100 |
| Connection type | Welding connection |
| Contact Switching Type | male |
| application | Signal |
| Number of poles | 12 |
| Direction of rotation | Standard |
| Plug Face | 12 |
| Contact DiameterSignal Contacts | 1 mm |
| Braided yarn sectionSignal Contactsmin. | 0.08 mm² |
| Braided yarn sectionSignal ContactsMax. | 1 mm² |
| Nominal current per signal contact | 8 A |
| Observation | In the case of connection cross-section max. |
| Nominal voltage Warning contact | 150 V |
| Dimensioning Transient Voltage | 2.5 kV |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Mounting Height | 2000 m |
| Housing | |
| Shell material | GD-Zn |
| Lock Type | ONECLICK Quick Lock |
| Pg Cable Glands | without |
| Protection Index (inserted) | IP66 / IP68 (2m / 24h) / IP69K |
| Thread Type | M23 |
| Meeting | |
| Cable Outer Diameter | 3 mm ... 15 mm (Universal Shutter Ring) |
| Gasket material | FKM |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
