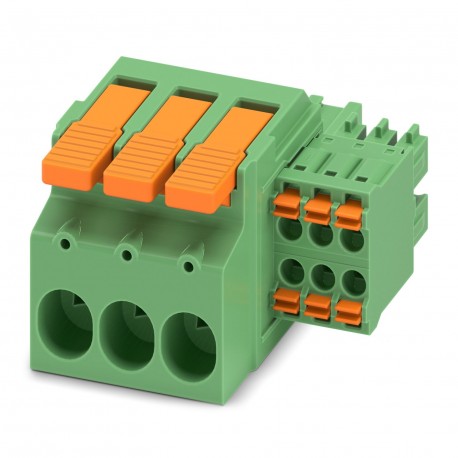

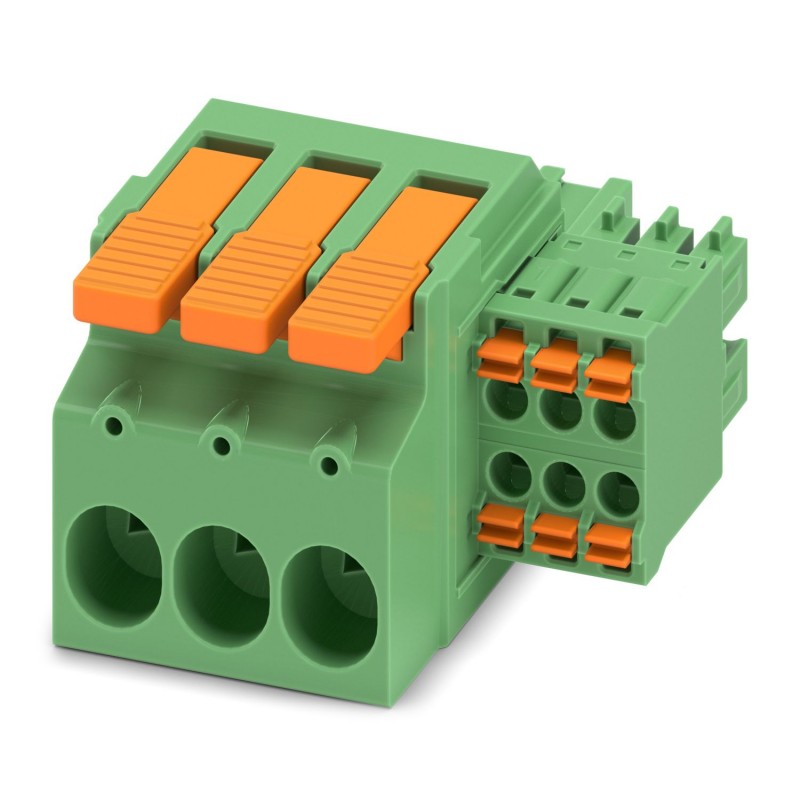

LPCH 6/ 3+6-ST-7,62 1716954 PHOENIX CONTACT Connector, hybrid printed circuit board, nominal current: 41 A, ..
LPCH 6/ 3+6-ST-7,62
1716954
PHOENIX_CONTACT
25
Connector, hybrid printed circuit board, nominal current: 41 A, number of poles: 9, pitch: 7.62 mm, Connection type: spring clamp push-in, color: green
Hybrid connector for printed circuit board, nominal section: 6 mm², color: green, nominal current: 41 A, 8 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: LPCH 6/.. +6-ST, pitch: 7.62 mm, connection type: Push-in lever connection, driver/printed circuit board connection direction: 0 °, plug-in system: COMBICON PC 6 hybrid, lock: without, fixing type: without, packaging type: boxed
Hybrid PCB connector, nominal cross-section: 6 mm2, colour: green, rated current: 41 A, 8 A, dimensioning voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, product series: LPCH 6/.. +6-ST, pitch: 7.62 mm, connection type: Push-in connection with lever, conductor/board connection direction: 0 °, plug system: COMBICON PC 6 hybrid, locking: none, fastening type: none, packaging type: packed in carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Hybrid PCB connector |
| Product Family | LPCH 6/.. +6-ST |
| Product Line | COMBICON Connectors L |
| Number of poles | 9 |
| Step | 7.62 mm |
| Number of connections | 9 |
| Number of rows | 1 |
| Number of potentials | 9 |
| Data maintenance status | |
| Article review | 05 |
| Rated Current IN | 41 A |
| Rated voltage UN | 1000 V |
| Mass Resistivity | 0.42 mΩ |
| Sizing voltage (III/3) | 800 V |
| Sizing impulse voltage (III/3) | 8 kV |
| Sizing voltage (III/2) | 1000 V |
| Sizing Impulse Voltage (III/2) | 8 kV |
| Sizing voltage (II/2) | 1000 V |
| Sizing Impulse Voltage (II/2) | 6 kV |
| Connection technology | |
| Connector system | COMBICON PC 6 hybrid |
| Nominal cross-section | 6 mm² |
| Contact Connection Type | female |
| Blockage | |
| Clamping Type | absent |
| Fixing flange | absent |
| Power conductor connection | |
| Link | Push-in connection with lever |
| Direction of connection of the conductor to the direction of insertion | 0 ° |
| Rigid conductor cross-section | 0.75 mm² ... 10 mm² |
| Flexible conductor cross-section | 0.75 mm² ... 6 mm² |
| Conductor cross-section AWG | 18 ... 8 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.75 mm² ... 6 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.75 mm² ... 6 mm² |
| Buffer Gauge a x b / diameter | 4.3 mm x 4.0 mm / 4.0 mm |
| Length of the section to be stripped | 18 mm |
| Signal conductor connection | |
| Link | Push-in spring connection |
| Direction of connection of the conductor to the direction of insertion | 0 ° |
| Rigid conductor cross-section | 0.2 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.2 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 24 ... 16 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 1 mm² |
| Buffer Gauge a x b / diameter | 2.4 mm x 1.5 mm / 1.5 mm |
| Length of the section to be stripped | 10 mm |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal Surface, Connection Point (Surface Layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact zone (surface layer) | Tin (4 - 8 μm Sn) |
| Material information - case | |
| Color (Case) | Green (6021) |
| Insulation material | PA GF |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Material data - drive element | |
| Colour (Drive Element) | Orange (2003) |
| Insulation material | PA GF |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Note for Operation | According to DIN EN 61984, COMBICON connectors are connectors without switchable power (COC). For use in accordance with the intended use, they must not be switched on or disconnected while they are still live or under load. |
| Dimensioned Drawing |  |
| Step | 7.62 mm |
| Width [w] | 36.49 mm |
| Height [h] | 35.65 mm |
| Length [l] | 48 mm |
| Conductor connection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.75 mm² / rigid / > 30 N |
| 0.75 mm² / flexible / > 30 N | |
| 10 mm² / rigid / > 90 N | |
| 6 mm² / flexible / > 80 N | |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 7 N |
| Tensile force per pole approx. | 4 N |
| Contact holder in use | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Areas of application for contact holders Application >20 N | Test passed |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 4 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Temperature Cycling | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Air and Surface Clearance Distances Power | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 800 V |
| Rated impulse voltage (III/3) | 8 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 8 mm |
| Minimum creepage value (III/3) | 10 mm |
| Rated Isolation Voltage (III/2) | 1000 V |
| Rated impulse voltage (III/2) | 8 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 8 mm |
| Minimum creepage value (III/2) | 8 mm |
| Rated Isolation Voltage (II/2) | 1000 V |
| Rated Impulse Voltage (II/2) | 6 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 5.5 mm |
| Minimum creepage value (II/2) | 5.5 mm |
| Air and Surface Clearance Distances Signal | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.5 mm |
| Rated Isolation Voltage (II/2) | 320 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 1.6 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 7.3 kV |
| Mass Resistivity R1 | 0.42 mΩ |
| Mass Resistivity R2 | 0.46 mΩ |
| Manoeuvring cycles | 25 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle |
| Stress due to the effect of heat | 100 °C/168 h |
| Fixed AC voltage | 3.31 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 7.62 mm |
| Modular spacing connections (EF006827) | 7.62 mm |
| Rated current In (EF008250) | 41 A |
| Rated voltage (EF000228) | 1000 V |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.75 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 10 mm² |
| Type of electric connection (EF003961) | Other |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Other |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
