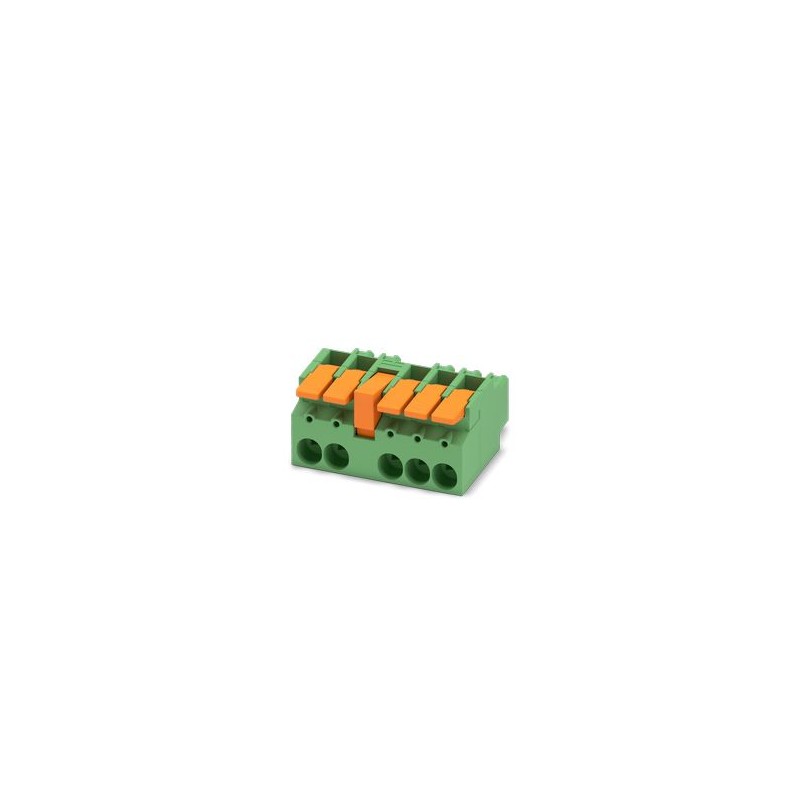

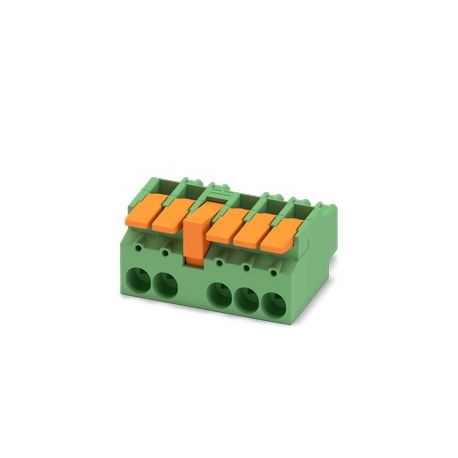

LPC 16 HC/ 5-STL3-10,16 1716835 PHOENIX CONTACT Printed circuit board connector, nominal section: 16 mm2, co..
LPC 16 HC/ 5-STL3-10,16
1716835
PHOENIX_CONTACT
25
Printed circuit board connector, nominal section: 16 mm2, color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Female, number of rows: 1, number of poles: 5, family of articles: LPC 16 HC/.. -STL, pitch: 10.16 mm, connection type: Push-in lever connection, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON PC 16 advanced, locking: Snap lock, clamping type: Locking trigger, packaging type: boxed
PCB connector, nominal cross-section: 16 mm², colour: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, surface contacts: Tin, contact type: Female, number of rows: 1, number of poles: 5, article family: LPC 16 HC/.. -STL, pitch: 10.16 mm, connection type: Lever push-in connection, driver/PCB connection direction: 0°, clamping hook: - without clamping hook, plug-in system: COMBICON PC 16 advanced, locking: Lace lock, fixing type: Lace flange, packing type: boxed packaging
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Line | COMBICON Connectors XL |
| Product Type | Printed Circuit Board Connector |
| Product Family | LPC 16 HC/.. -STL |
| Number of poles | 5 |
| Step | 10.16 mm |
| Number of rows | 1 |
| Clamping flange | Lace Flange |
| Nominal Current IN | 76 A |
| Nominal voltage UN | 1000 V |
| Degree of pollution | 3 |
| Contact resistance | 0.235 mΩ |
| Sizing voltage (III/3) | 1000 V |
| Dimensioning transient voltage (III/3) | 8 kV |
| Dimensioning voltage (III/2) | 1000 V |
| Dimensioning Transient Voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Dimensioning transient voltage (II/2) | 6 kV |
| Connection technology | |
| Connector System | COMBICON PC 16 advanced |
| Nominal Section | 16 mm² |
| Contact Connection Type | Female |
| Blockade | |
| Locking system | Lace lock |
| Clamping flange | Lace Flange |
| Connecting Conductors | |
| Connection type | Push-in lever connection |
| Connection Direction Driver/PCB | 0 ° |
| Rigid conductor section | 0.75 mm² ... 16 mm² |
| Flexible conductor section | 0.75 mm² ... 16 mm² |
| AWG Conductor Section | 18 ... 4 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.75 mm² ... 16 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.75 mm² ... 16 mm² |
| Male gauge a x b / Diameter | - / 5.4 mm |
| Peel Length | 18 mm |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (10 - 16 μm Sn) |
| Metal surface contact area (top layer) | Tin (10 - 16 μm Sn) |
| Material data - housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Material data: drive element | |
| Color (Drive Element) | Orange (2003) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Dimension Scheme |  |
| Step | 10.16 mm |
| Width [w] | 64.16 mm |
| Height [h] | 32.2 mm |
| Length [l] | 56.3 mm |
| Observation regarding the operation | According to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
| Connecting Conductors | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Checking for damage to conductors and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Tensile Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | 0.75 mm² / rigid / > 30 N |
| 0.75 mm² / flexible / > 30 N | |
| 16 mm² / rigid / > 100 N | |
| 16 mm² / flexible / > 100 N | |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 8 N |
| Power when unplugging by pole approx. | 6 N |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 20 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 9.8 kV |
| Contact Resistance R1 | 0.235 mΩ |
| Contact Resistance R2 | 0.212 mΩ |
| Plug Cycles | 25 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 105 °C/168 h |
| Bearable AC voltage | 4.26 kV |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 105 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Thermal Test | Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 6 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Temperature Cycles | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Creepage Lines & Air Isolation Distances | 1. Coordination of insulations | |
| Test Specification | DIN EN 61984 (VDE 0627):2009-11 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 1000 V |
| Nominal transient voltage (III/3) | 8 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 8 mm |
| Minimum creepage line value (III/3) | 12.5 mm |
| Sizing Insulation Voltage (III/2) | 1000 V |
| Nominal transient voltage (III/2) | 8 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 8 mm |
| Minimum creepage line value (III/2) | 8 mm |
| Sizing Insulation Voltage (II/2) | 1000 V |
| Nominal transient voltage (II/2) | 6 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 5.5 mm |
| Minimum creepage line value (II/2) | 5.5 mm |
| Creepage Lines & Air Isolation Distances | 2. Coordination of insulations | |
| Test Specification | IEC 60664-1:2020-05 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 1000 V AC/DC |
| Nominal transient voltage (III/3) | 8 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 8 mm |
| Minimum creepage line value (III/3) | 12.5 mm |
| Sizing Insulation Voltage (III/2) | 1500 V DC |
| Nominal transient voltage (III/2) | 10 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 11 mm |
| Minimum creepage line value (III/2) | 11 mm |
| Sizing Insulation Voltage (II/2) | 1500 V DC |
| Nominal transient voltage (II/2) | 8 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 8 mm |
| Minimum creepage line value (II/2) | 8 mm |
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 10.16 mm |
| Modular spacing connections (EF006827) | 10.16 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.75 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Type of electric connection (EF003961) | Spring clamp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
