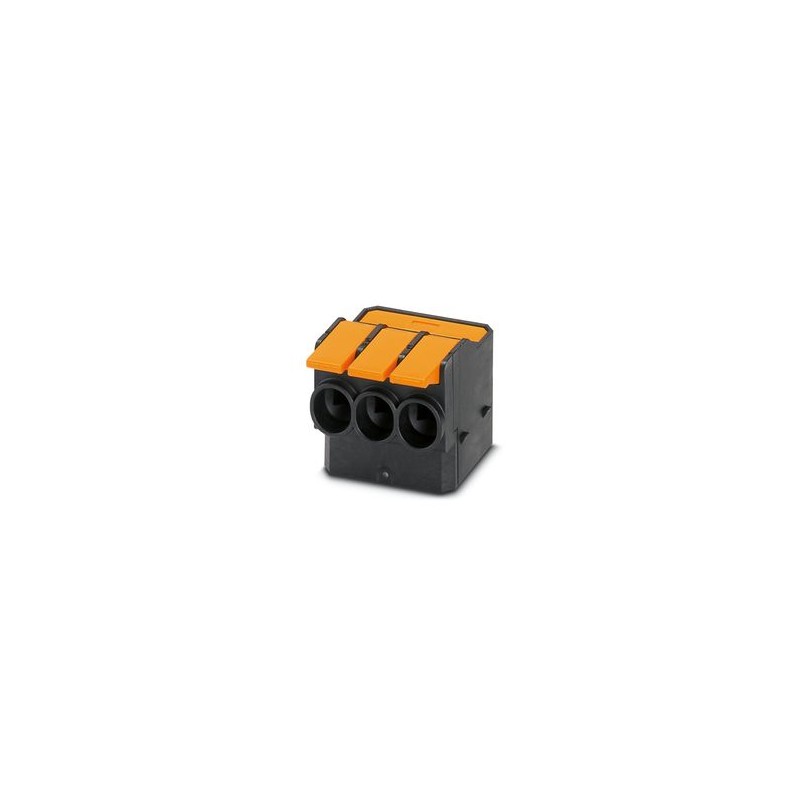

LLH 25/ 3-H-13,0-B 1709113 PHOENIX CONTACT Capacitor terminal, nominal cross-section: 25 mm², colour: black,..
LLH 25/ 3-H-13,0-B
1709113
PHOENIX_CONTACT
24
Product on demand only, returns will not be accepted.
Capacitor terminal, nominal cross-section: 25 mm², colour: black, nominal current: 90 A, nominal voltage (III/2): 1000 V, surface contacts: Tin, number of potentials: 3, number of poles: 3, number of connections: 3, article family: LLH 25/.. -H, pitch: 13mm, connection type: Push lock spring connection, driver/printed circuit board connection direction: 0°, packing type: boxed packaging
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | COMBICON Terminals Special |
| Product Type | Condenser terminal block |
| Product Family | LLH 25/.. -H |
| Number of poles | 3 |
| Step | 13 mm |
| Number of connections | 3 |
| Number of potentials | 3 |
| Nominal Current IN | 90 A |
| Nominal voltage UN | 1000 V |
| Degree of pollution | 3 |
| Sizing voltage (III/3) | 1000 V |
| Dimensioning transient voltage (III/3) | 8 kV |
| Dimensioning voltage (III/2) | 1000 V |
| Dimensioning Transient Voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Dimensioning transient voltage (II/2) | 6 kV |
| Type of mounting | Direct plug-in connection technology |
| Connection type | Push lock spring connection |
| Material data - contact | |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 μm Sn) |
| Material data - housing | |
| Color (Housing) | Black (9005) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data: drive element | |
| Color (Drive Element) | Orange (2003) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Connecting Conductors | |
| Connection type | Push lock spring connection |
| Flexible conductor section with toe cap, without plastic sleeve | 2.5 mm² ... 25 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 2.5 mm² ... 25 mm² |
| Male gauge a x b / Diameter | - / 5.4 mm |
| Peel Length | 18 mm |
| Dimension Scheme |  |
| Step | 13 mm |
| Width [w] | 40.2 mm |
| Height [h] | 39.4 mm |
| Length [l] | 48.2 mm |
| Overall Height | 39.4 mm |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 1000 V |
| Nominal transient voltage (III/3) | 8 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 8 mm |
| Minimum creepage line value (III/3) | 12.5 mm |
| Sizing Insulation Voltage (III/2) | 1000 V |
| Nominal transient voltage (III/2) | 8 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 8 mm |
| Minimum creepage line value (III/2) | 8 mm |
| Sizing Insulation Voltage (II/2) | 1000 V |
| Nominal transient voltage (II/2) | 6 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 5.5 mm |
| Minimum creepage line value (II/2) | 5.5 mm |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
Datasheet - PDF
