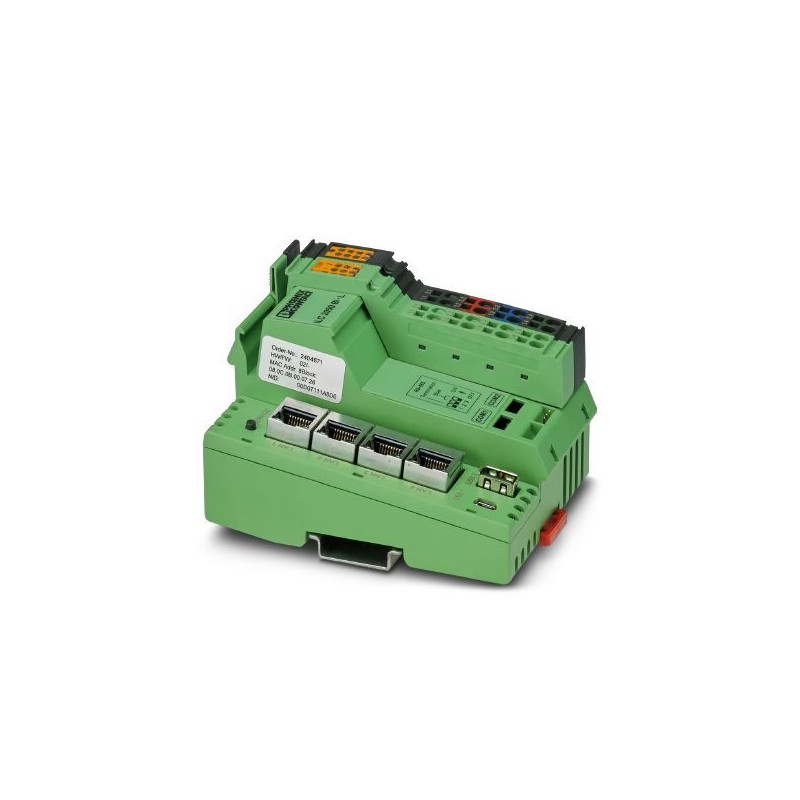

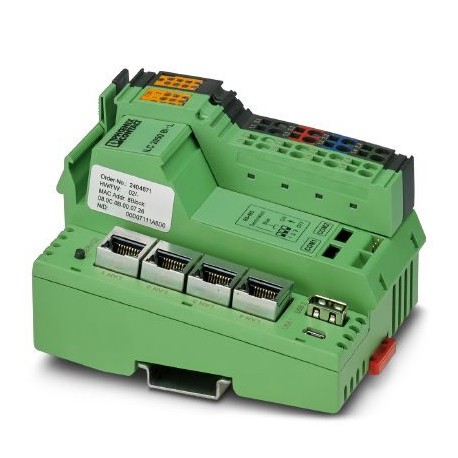

ILC 2050 BI-L 2404671 PHOENIX CONTACT The modular Inline controller for automation applications in buildings..
ILC 2050 BI-L
2404671
PHOENIX_CONTACT
The modular Inline controller for automation applications in buildings, infrastructure, and energy for connection with standard automation technology with the Internet of Things (IoT). The controller makes it possible to implement complex systems efficiently.
Modular inline controller for automation applications in building technology, infrastructure and energy technology. It has two logically separated IP address interfaces with 2 integrated Fast Ethernet ports respectively. Configurable assignment of Ethernet ports for use of the Spanning Tree protocol, Daisy Chain, and redundant ring structures for optimal availability. 4 LAN interfaces, 2 USB interfaces and 2 RS-485 interfaces have been integrated. Allows direct connection of LonMark TP/FT-10 networks. Data point connections can be expanded with up to 63 inline I/O modules.
PLC's > PLC CPU-module
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2404671 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626933030 |
| Weight per Piece (excluding packing) | 320.000 g |
| Custom tariff number | 85371091 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 0 % ... 75 % (according to DIN EN 61131-2, non-condensing, no ice formation) |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity |
Control system
| Engineering tool | Niagara 4 |
|---|---|
| WorkPlace | |
| Programming languages supported | Niagara Framework® |
Mechanical design
| Weight | 230 g |
|---|---|
| Diagnostics display | No |
| Controller redundancy | No |
| Safety function | No |
Data interfaces
| Interface | Ethernet |
|---|---|
| Number | 4 |
| Connection method | RJ45 socket, shielded |
| Transmission speed | 10/100 Mbps |
| Interface | RS-485 |
| Number | 2 |
| Connection method | Spring-cage connection |
| Transmission speed | max. 200 kbps |
| Interface | USB 1.0/USB 2.0 |
| Number | 1 |
| Connection method | USB type A, socket |
| Interface | USB OTG |
| Number | 1 |
| Connection method | Mini-USB |
| Interface | microSD |
| Number | 1 (Top) |
| Connection method | microSD slot |
Power supply
| Typical current consumption | ≤ 170 mA (at nominal voltage without local bus device) |
|---|---|
| Max. current consumption | ≤ 1.5 A |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC |
Fieldbus function
| Amount of process data | max. 4096 Bit (INTERBUS) |
|---|---|
| Number of supported devices | max. 63 |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 16 (PCP devices are tolerated – however, PCP is not actively supported) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 27250203 |
|---|---|
| eCl@ss 4.1 | 27240601 |
| eCl@ss 5.0 | 27242215 |
| eCl@ss 5.1 | 27242700 |
| eCl@ss 6.0 | 27242200 |
| eCl@ss 7.0 | 27242207 |
| eCl@ss 8.0 | 27242207 |
| eCl@ss 9.0 | 27242207 |
ETIM
| ETIM 2.0 | EC000236 |
|---|---|
| ETIM 3.0 | EC000236 |
| ETIM 4.0 | EC000236 |
| ETIM 5.0 | EC000236 |
| ETIM 6.0 | EC000236 |
| ETIM 7.0 | EC000236 |
UNSPSC
| UNSPSC 6.01 | 43172015 |
|---|---|
| UNSPSC 7.0901 | 43201404 |
| UNSPSC 11 | 43172018 |
| UNSPSC 12.01 | 43201404 |
| UNSPSC 13.2 | 43201404 |
| UNSPSC 18.0 | 39122114 |
| UNSPSC 19.0 | 39122114 |
| UNSPSC 20.0 | 39122114 |
| UNSPSC 21.0 | 39122114 |
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Model (EF000010) | Modular |
| Number of HW-interfaces industrial Ethernet (EF003020) | 4 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 2 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of digital inputs (EF001992) | 0 |
| Number of digital outputs (EF001993) | 0 |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Memory size (EF002997) | 1048576 kByte |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 80.096003 mm |
| Height (EF000040) | 120.557026 mm |
| Depth (EF000049) | 70.030346 mm |
