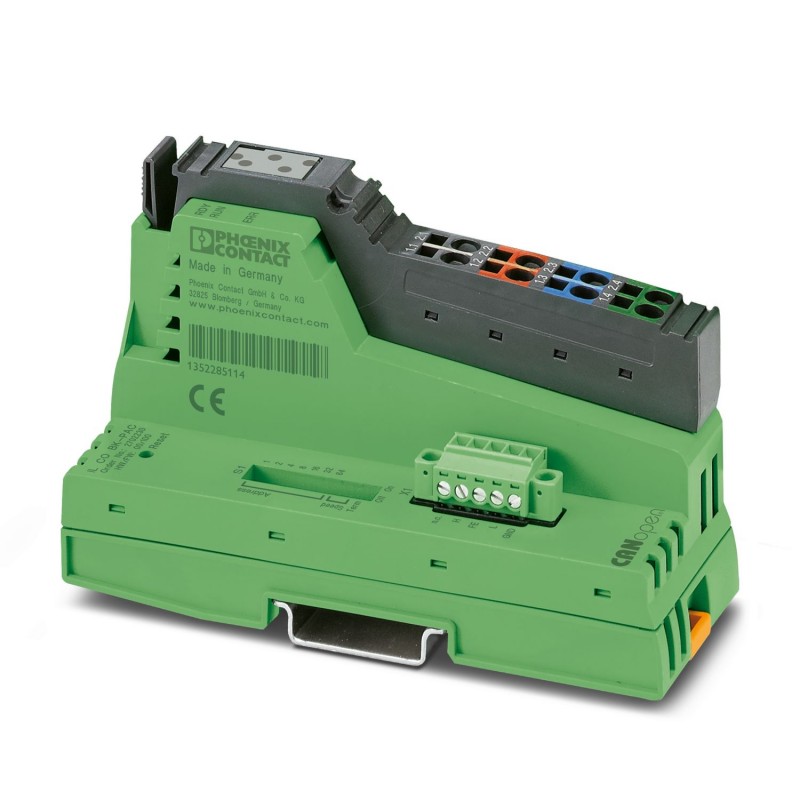

IL CO BK-PAC 2702230 PHOENIX CONTACT Bus coupler
IL CO BK-PAC
2702230
PHOENIX_CONTACT
Bus coupler
Inline, Bus coupler, CANopen®, MINI COMBICON, transmission rate on local bus:500 kBit/s / 2 MBit/s, protection index: IP20, including mains connector, inline connector and marking surface
PLC's > Fieldbus, decentr. periphery - communication module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702230 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 130 (C-6-2017) |
| GTIN | 4055626134949 |
| Weight per Piece (excluding packing) | 168.500 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 40 mm |
| Height | 119.4 mm |
| Depth | 71.5 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 168.5 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | CRC error Message about the emergency object |
| Peripheral fault Message about the emergency object | |
| Power error Message about the emergency object | |
| Module change errors Message about the emergency object | |
| Inactive local bus Message about the emergency object | |
| Inline connection error Message about the emergency object | |
| Faulty Inline cycles Message about the emergency object |
Interfaces
| Designation | CANopen® |
|---|---|
| No. of channels | 1 |
| Connection method | MINI COMBICON |
| Transmission speed | 1 Mbps, 800 kbps, 500 kbps, 250 kbps, 125 kbps, 50 kbps, 20 kbps, 10 kbps (Can be set via DIP switch or automatic detection) |
| Number of positions | 5 |
| Designation | Inline local bus |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps (automatic detection, no combined system) |
System limits of the bus coupler
| Designation | System limits of the bus coupler |
|---|---|
| Amount of process data | max. 512 Byte (Sum of the inputs and outputs for 64 PDOs with 8 bytes each) |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 |
| Number of devices with parameter channel | max. 16 |
| Number of supported branch terminals with remote bus branch | 0 |
| Designation | CANopen® |
| Device profile | CiA 401 V3.0 |
Inline potentials
| Designation | Bus coupler supply UBC; Communications power UL(7.5 V) and the analog supply UANA(24 V) are generated from the bus coupler supply. |
|---|---|
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 51 mA (No local bus devices connected) |
| max. 0.9 A (with max. number of connected I/O terminal blocks) | |
| Designation | Communications power (UL) |
| Supply voltage | 7.5 V DC |
| Power supply unit | max. 0.8 A |
| Designation | Supply of analog modules (UANA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 0.5 A DC |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 8 A DC (sum of UM+ US) |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 8 A DC (sum of UM+ US) |
| Power consumption | typ. 1.3 W (entire device) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250203eCl@ss 4.127250203eCl@ss 5.027250203eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 119.29 mm |
| Depth (EF000049) | 69.33 mm |
