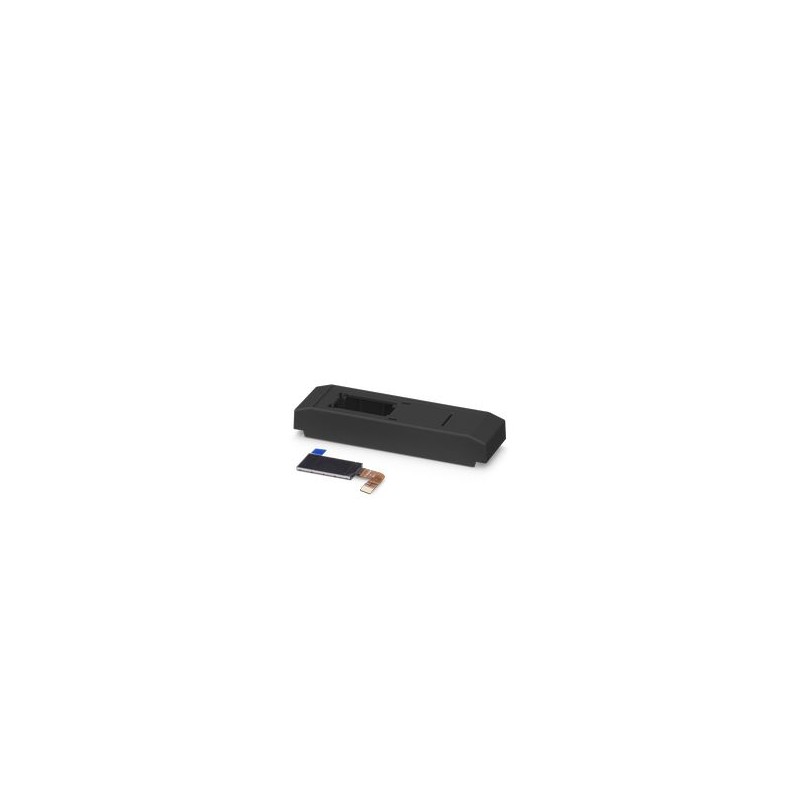

ICS25-C100X12-DKP-9005 1524410 PHOENIX CONTACT Rail box, Top, integrated 0.96" display, interface: 4-wire SP..
ICS25-C100X12-DKP-9005
1524410
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.
Rail box, Top, integrated 0.96" display, interface: 4-wire SPI half duplex, width: 25 mm, height: 100 mm, depth: 14.35 mm
Rail Box, Top
DIN rail housing, Upper part, integrated 0.96″ display, interface: 4-wire SPI half duplex, width: 25 mm, height: 100 mm, depth: 14.35 mm, color: black (9005)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Refer to the data sheet for the range in the download area. |
| Product type | Upper housing part |
| Product family | ICS25-..100X.. |
| Type | Upper part, integrated 0.96″ display |
| Housing type | DIN rail housing |
| Ventilation openings present | no |
| Housing series | ICS |
| Display | |
| Display type | Color display TFT |
| Display type | LCD with backlighting |
| Diagonal | 0.96 in. (Display) |
| Display lighting type | LED, white |
| Controller | ST7735S |
| Cross section AWG | (converted acc. to IEC) |
| Interface | 4-wire SPI half duplex |
| Dimensional drawing |  |
| Width | 25 mm |
| Height | 100 mm |
| Depth | 14.35 mm |
| Depth from base support surface | 11.9 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color | black (9005) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface characteristics | untreated |
| Housing material | Polyamide |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Result | Test passed |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 20 m/s² |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Result | Test passed |
| Acceleration | 150 m/s² |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -20 °C ... 55 °C |
| Relative humidity (storage/transport) | 80 % |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | Snap in |
| Mounting position | Vertical (horizontal DIN rail) |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 25 mm |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 14.35 mm |
