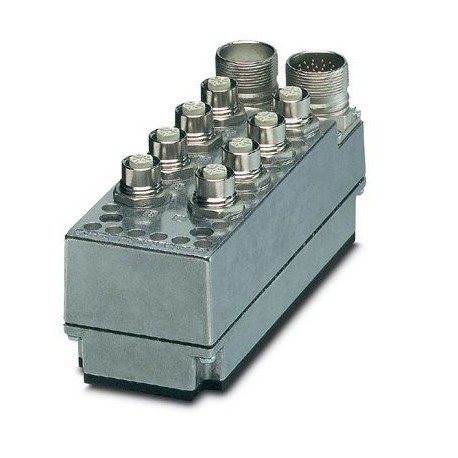

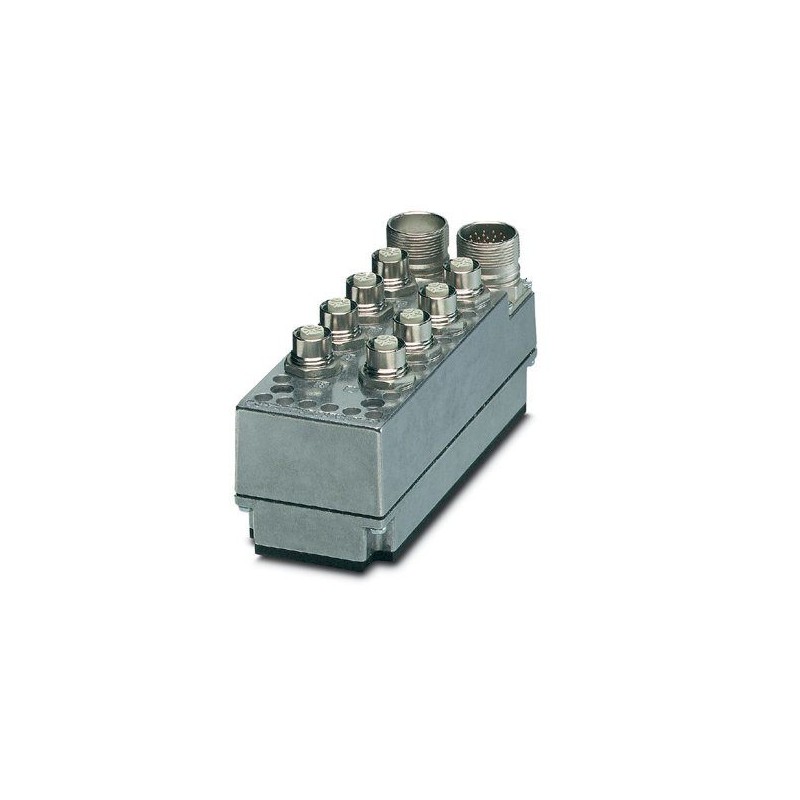

IBS IP CDIO/R 24-8/SF 2719564 PHOENIX CONTACT I/O module
IBS IP CDIO/R 24-8/SF
2719564
PHOENIX_CONTACT
I/O module
Digital input/output module, for use in robots, IP65 degree of protection, 8 inputs, 24 V DC, 4-conductor or 8-output connection technology, 24 V DC, 0.5 A, 3-conductor connection technology, connection of additional signals on the rear side of the module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2719564 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4017918241650 |
| Weight per Piece (excluding packing) | 681.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Inputs
| Number of inputs | 8 |
|---|---|
| Connection technology | 4-wire |
| Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V ... 5 V |
| Input voltage range "1" signal | 13 V ... 30 V |
Outputs
| Number of outputs | 7 |
|---|---|
| Connection technology | 3-conductor (shielded) |
| Type of protection | Short-circuit protection, polarity reversal protection |
Classifications
eCl@ss 4.027250302eCl@ss 4.127250302eCl@ss 5.027250302eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
