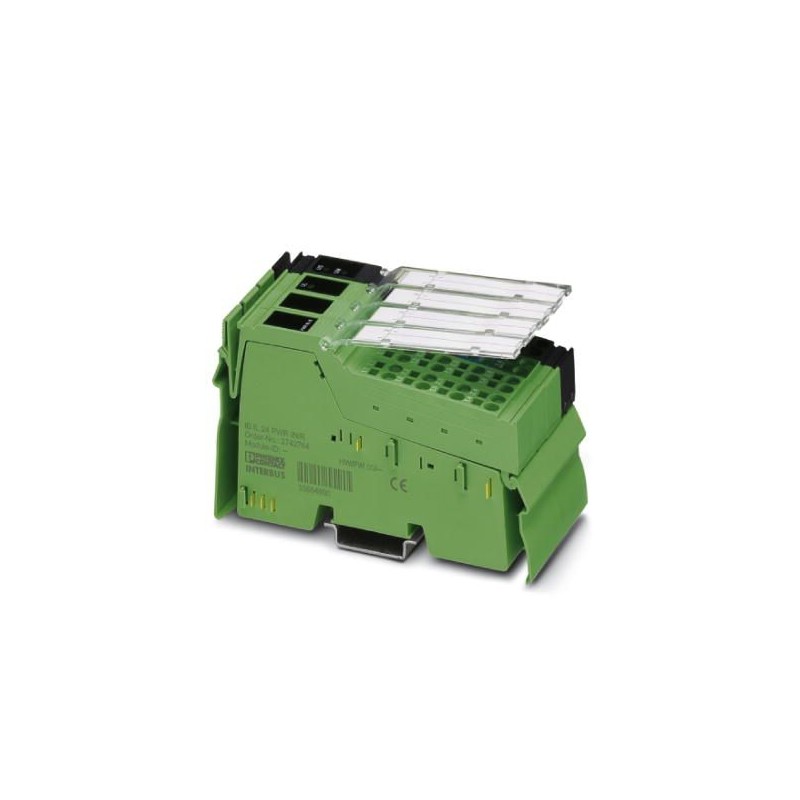

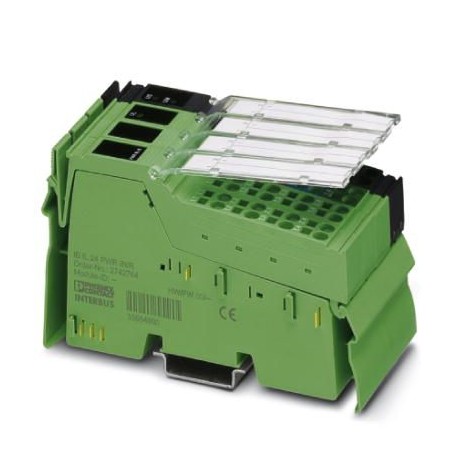

IB IL 24 PWR IN/PS-PAC 2863135 PHOENIX CONTACT Inline terminal
IB IL 24 PWR IN/PS-PAC
2863135
PHOENIX_CONTACT
Inline terminal
Inline power terminal block, complete with accessories (connector and marking surface), 24 V DC, for system voltages UM, US, UL, UANA
PLC's > Fieldbus, decentr. periphery - power supply/segment module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2863135 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 92 (AX-2005) |
| GTIN | 4017918917265 |
| Weight per Piece (excluding packing) | 132.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Power supply
| Communications power UL | 7.5 V DC ±5 % |
|---|---|
| I/O voltage range | 19.2 V ... 30 V |
| Max. current consumption | 1.25 A DC |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Power supply unit | max. 2 A DC (observe derating) |
| Designation | Supply of analog modules (UANA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 0.5 A DC (observe derating) |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 8 A (sum of UM+ US) |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 8 A (sum of UM+ US) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250308eCl@ss 4.127250304eCl@ss 5.027250304eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242610eCl@ss 8.027242610eCl@ss 9.027242610
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
