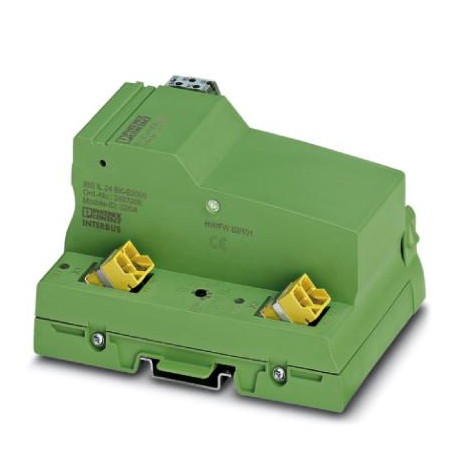

IBS IL 24 BK-E2000-PAC 2897169 PHOENIX CONTACT Bus coupler
IBS IL 24 BK-E2000-PAC
2897169
PHOENIX_CONTACT
Bus coupler
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2897169 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356165808 |
| Weight per Piece (excluding packing) | 210.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % |
| Permissible humidity (storage/transport) | 10 % ... 95 % |
| Air pressure (operation) | 70 kPa ... 106 kPa |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa |
| Degree of protection | IP20 |
Interfaces
| Designation | INTERBUS |
|---|---|
| No. of channels | 2 |
| Connection method | E2000 |
| Designation | Inline local bus |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
System limits of the bus coupler
| Number of local bus devices that can be connected | max. 63 |
|---|---|
| Number of devices with parameter channel | max. 63 |
| Number of supported branch terminals with remote bus branch | 0 |
Inline potentials
| Designation | Bus coupler supply UBC; Communications power UL(7.5 V) and the analog supply UANA(24 V) are generated from the bus coupler supply. |
|---|---|
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 60 mA (without connected Inline I/O terminals) |
| max. 960 mA (with max. number of connected I/O terminal blocks) | |
| Designation | Communications power (UL) |
| Supply voltage | 7.5 V DC ±5 % |
| Power supply unit | max. 1 A DC |
| Designation | Supply of analog modules (UANA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 0.5 A DC |
Electrical isolation
| Test section | 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional earth ground 1000 V DC 1 min. |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250201eCl@ss 4.127250201eCl@ss 5.027250203eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
