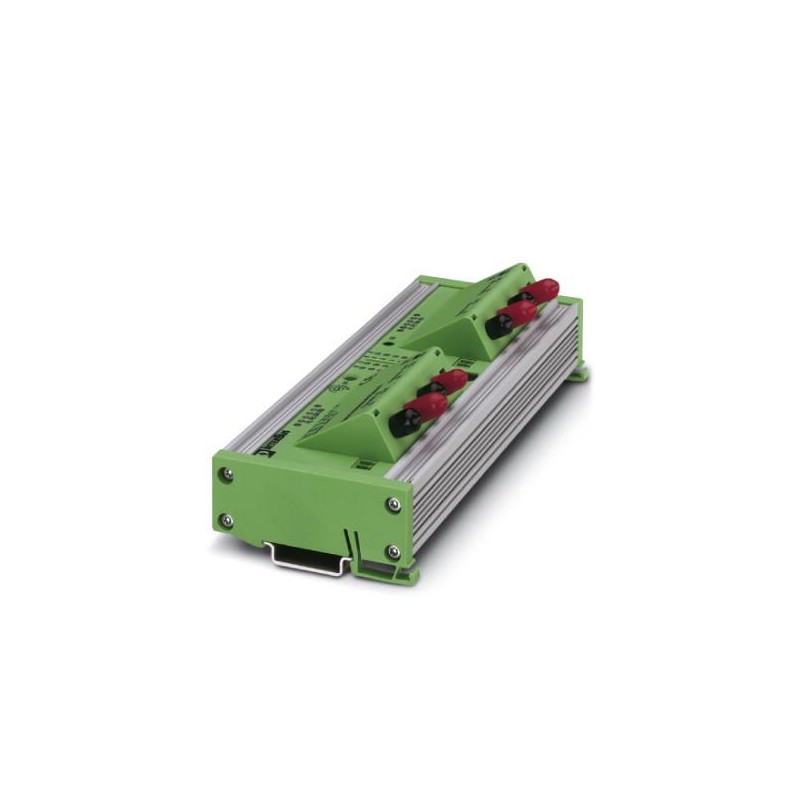

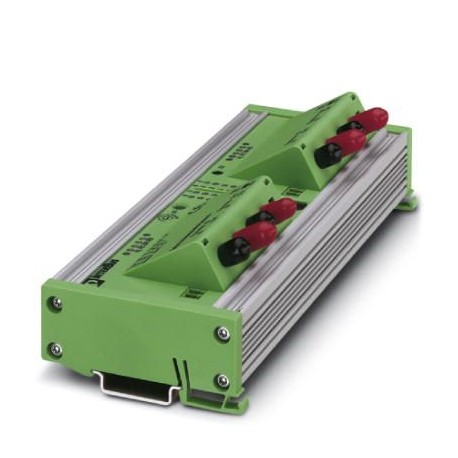

IBS CT 24 IO GT-LK-OPC 2742146 PHOENIX CONTACT Coupling module
IBS CT 24 IO GT-LK-OPC
2742146
PHOENIX_CONTACT
Coupling module
Gateway module, IP20 protection type, with remote fiber optic bus connection
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2742146 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 125 (AX-2005) |
| GTIN | 4017918817312 |
| Weight per Piece (excluding packing) | 417.600 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Interfaces
| Interface | INTERBUS remote bus (incoming/outgoing) |
|---|---|
| Connection method | F-SMA connector |
| Transmission speed | 500 kbps / 2 Mbps |
Power supply
| Typical current consumption | 150 mA |
|---|---|
| Max. current consumption | 200 mA |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027240604eCl@ss 4.127250201eCl@ss 5.027250203eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
