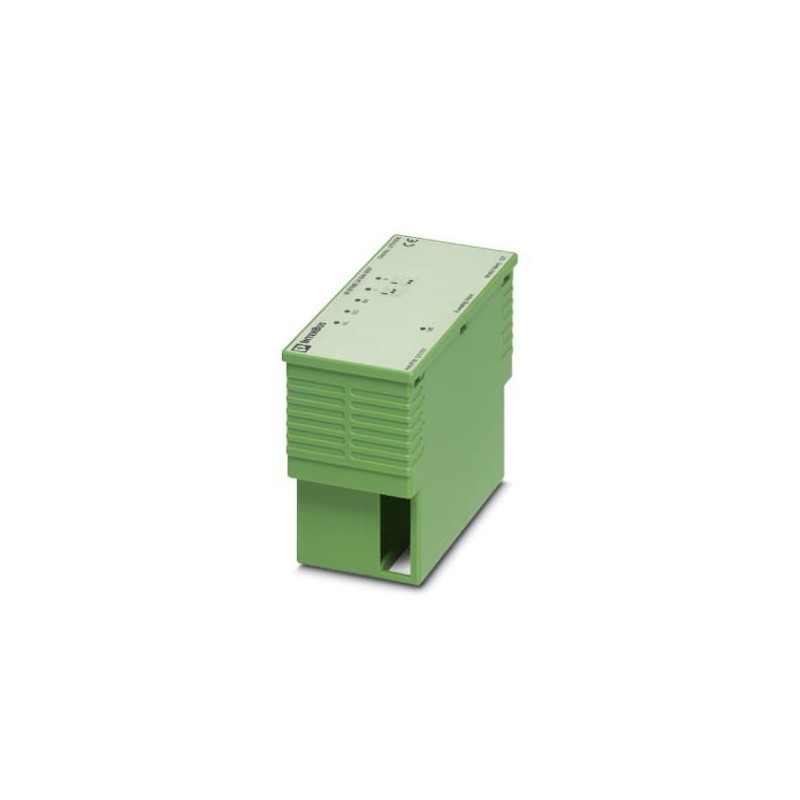

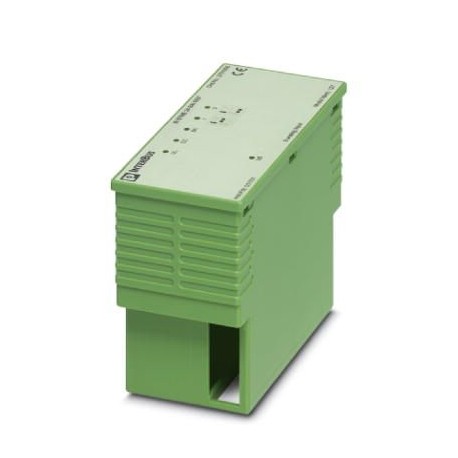

IB STME 24 BAI 8/EF 2701956 PHOENIX CONTACT Replacement electronics module
IB STME 24 BAI 8/EF
2701956
PHOENIX_CONTACT
Replacement electronics module
INTERBUS-ST analogue input module, 8 inputs, 0-5 V, 0-10 V, 0-25 V, 0-50 V, 0-20 mA, 4-20 mA, 0-40 mA, 0-60 mA, IP20 protection degree, consisting of: modular electronics only
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2701956 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356895750 |
| Weight per Piece (excluding packing) | 249.700 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 249.7 g |
| Operating mode | Process data mode with 4 words |
| Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler |
| F1 fuse failure I/O error message sent to the bus coupler | |
| I/O supply failure I/O error message sent to the bus coupler |
Interfaces
| Designation | ST local bus |
|---|---|
| No. of channels | 2 |
| Connection method | ST local bus connector |
| Transmission speed | 500 kbps |
| Transmission physics | Copper |
Power supply for module electronics
| Connection method | ST local bus connector |
|---|---|
| Designation | Communications power |
| Supply voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 54 mA |
| max. 80 mA | |
| Power consumption | typ. 0.5 W |
Analog inputs
| Input name | Analog inputs |
|---|---|
| Number of inputs | max. 8 (Voltage or current) |
| Connection technology | 2, 3-conductor |
| A/D conversion time | max. 10 µs (per channel) |
| Measuring principle | Successive approximation |
| Measured value representation | 8 bit straight binary (default) or 12 bit two’s complement (can be parameterized) |
| Number of inputs | 8 (Voltage inputs) |
| Voltage input signal | 0 V ... 10 V |
| 0 V ... 5 V | |
| 0 V ... 25 V | |
| 0 V ... 50 V | |
| Input resistance of voltage input | 150 kΩ |
| Number of inputs | 8 (Current inputs) |
| Current input signal | 4 mA ... 20 mA |
| 0 mA ... 20 mA | |
| 0 mA ... 40 mA | |
| 0 mA ... 60 mA (rms) | |
| 0 mA ... 100 mA (peak) | |
| Input resistance current input | 77 Ω |
Electrical isolation
| Test section | Bus/Inputs 500 V AC 50 Hz 1 min. |
|---|---|
| Supply voltage/inputs 500 V AC 50 Hz 1 min. | |
| Supply voltage/Ground conductor 500 V AC 50 Hz 1 min. | |
| I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
