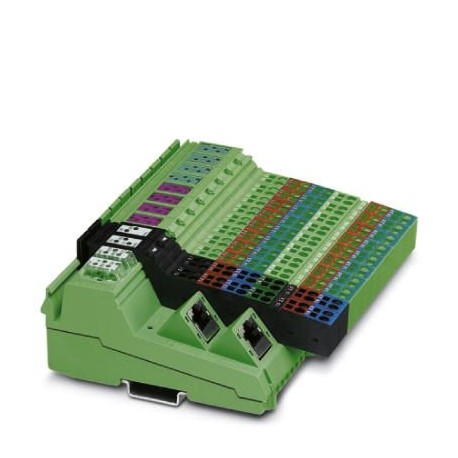

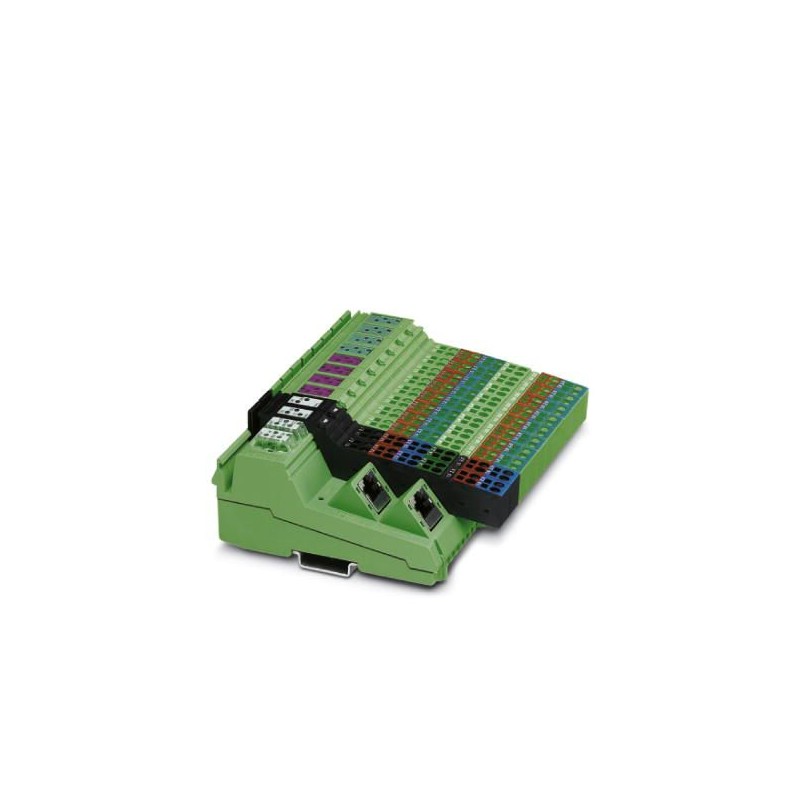

ILB PN 24 DI16 DIO16-EF 2702289 PHOENIX CONTACT I/O module
ILB PN 24 DI16 DIO16-EF
2702289
PHOENIX_CONTACT
I/O module
Inline, Block IO, PROFINET, RJ45 Female, Digital Inputs: 32 (16 fixed / 16 freely selectable), 24 V DC, Connection technology: 3 conductors, Digital outputs: 16, 24 V DC, 500 mA, connection technology: 2 conductors, PROFINET, -IRT, -MRP, -Fast Startup, Protection index: IP20, including Inline connectors and fields
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702289 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 188 (C-6-2017) |
| GTIN | 4055626073323 |
| Weight per Piece (excluding packing) | 563.900 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 156 mm |
| Height | 141 mm |
| Depth | 57 mm |
| Note on dimensions | Specfications with connectors |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 563.9 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | Short-circuit / overload of the digital outputs Message in the diagnostics register |
| Short circuit sensor supply US1or US2Message in the diagnostics register | |
| Sensor supply US1not present Message in the diagnostics register | |
| Sensor supply US2not present Message in the diagnostics register |
Interfaces
| Designation | PROFINET |
|---|---|
| No. of channels | 2 |
| Connection method | RJ45 socket |
| Note on the connection method | Autonegotiation and autocrossing, X2: internally crossed to enable “Fast Startup” with patch cable |
| Designation connection point | X1, X2 |
| Transmission speed | 100 Mbps (acc. to PROFINET standard) |
| Transmission physics | Ethernet in RJ45 twisted pair |
Digital inputs
| Input name | Digital inputs |
|---|---|
| Description of the input | EN 61131-2 types 1 and 3 |
| Connection method | Inline connector |
| Connection technology | 3-wire |
| Number of inputs | 32 (16 fixed and 16 freely selectable) |
| Typical response time | approx. 500 µs |
| Input voltage | 24 V DC |
| Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC |
| Nominal input current at UIN | approx. 2.4 mA |
| Typical input current per channel | typ. 5 mA |
Digital outputs
| Output name | Digital outputs |
|---|---|
| Connection method | Inline connector |
| Connection technology | 2-wire |
| Number of outputs | 16 |
| Type of protection | Short-circuit and overload protection |
| Output voltage | 24 V DC -1 V (At nominal current) |
| Nominal output voltage | 24 V DC |
| Maximum output current per channel | 500 mA |
| Maximum output current per module | 8 A |
| Nominal load, inductive | 12 VA (1.2 H, 48 Ω) |
| Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W (48 Ω) |
Electrical isolation
| Test section | I/Os / logic 500 V AC 50 Hz 1 min. |
|---|---|
| I/O / functional earth ground 500 V AC 50 Hz 1 min. | |
| Logic / functional earth ground 500 V AC 50 Hz 1 min. | |
| Ethernet interface signals / logic 1500 V AC 50 Hz 1 min. |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
|---|---|
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse | |
| Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250302eCl@ss 4.127250302eCl@ss 5.027250302eCl@ss 5.127242604eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
