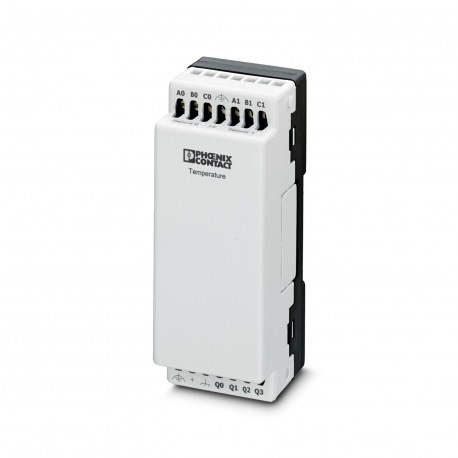

NLC-IO-2RTD/UTH-4QTP-01A 2701671 PHOENIX CONTACT I/O extension module
NLC-IO-2RTD/UTH-4QTP-01A
2701671
PHOENIX_CONTACT
I/O extension module
I/O expansion module for use with a Nanoline base unit. Provided with 2 temperature inputs and 4 PNP transistor outputs.
I/O expansion module for use with a Nanoline base unit. Equipped with 2 temperature inputs and 4 outputs for PNP transistors.
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2701671 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 467 (C-8-2015) |
| GTIN | 4046356774703 |
| Weight per Piece (excluding packing) | 185.100 g |
| Custom tariff number | 85389099 |
| Country of origin | IN (India) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Digital outputs
| Output description | PNP outputs |
|---|---|
| Connection method | Screw connection |
| Number of outputs | 4 |
| Type of protection | Thermal fuse |
| Nominal output voltage | 24 V DC |
| Maximum output current per channel | 0.5 A |
| Maximum output current per module / terminal block | 2 A |
| Nominal load, inductive | 7.2 VA (1.2 H; 80 Ω) |
| Nominal load, lamp | 7.2 W |
| Nominal load, ohmic | 7.2 W (80 Ω) |
Analog inputs
| Number of inputs | 2 |
|---|---|
| Description of the input | Inputs for thermocouples or linear voltage |
| Connection method | Individual wires |
| Connection technology | 2 or 3-wire (shielded) |
| Sensor types (RTD) that can be used | Pt 100, Pt 1000 |
| Sensor types that can be used (TC) | B, E, J, K, N, R, S, T |
| Type of protection | Thermal fuse |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250315eCl@ss 4.127250315eCl@ss 5.027242216eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027242216eCl@ss 8.027242216eCl@ss 9.027242216
| Feature Name | Feature Value |
|---|---|
| Number of analogue inputs (EF001994) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Number of digital inputs (EF001992) | 0 |
| Number of digital outputs (EF001993) | 4 |
| With relay output (EF003198) | No |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| IO link master (EF007298) | No |
| Redundancy (EF003156) | No |
| Basic device (EF007279) | No |
| Expandable (EF000119) | No |
| Expansion device (EF007163) | No |
| With time switch clock (EF000256) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 103.5 mm |
| Depth (EF000049) | 43 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
| PHOENIX CONTACT-2701671-NLC-IO-2RTD/UTH-4QTP-01A | 108 Kbytes |
|
