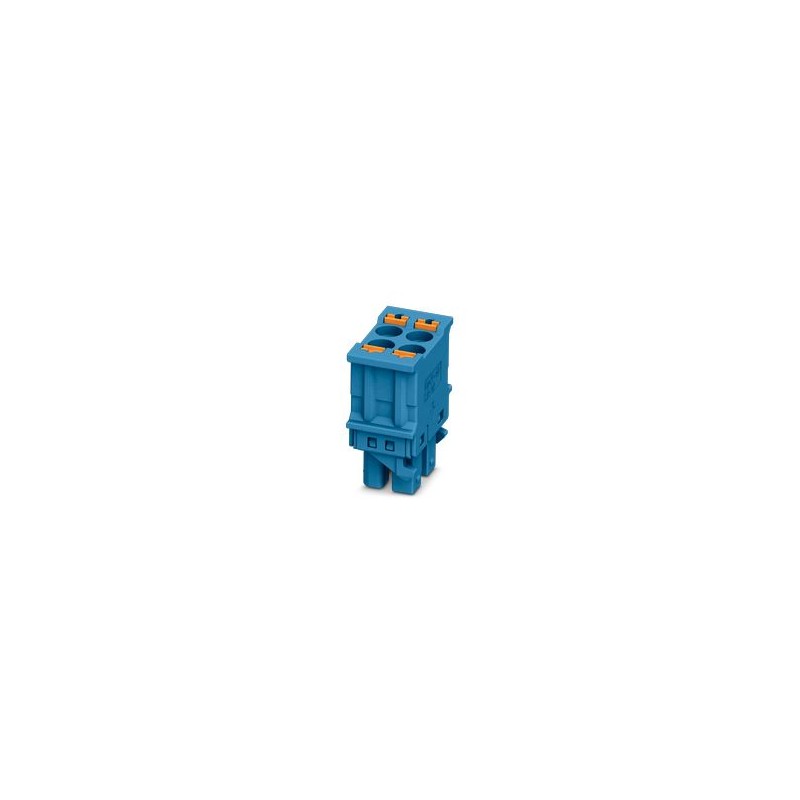

HSCP-SP 2,5-1UTT-5015

1497099

PHOENIX_CONTACT

1000

PCB connector, nominal cross-section: 2.5 mm², color: blue, nominal current: 8 A, nominal voltage (III/2): 320 V, contact type: Female, number of potentials: 2, number of rows: 2, number of poles: 2, number of connections: 4, article family: HSCP-SP 2.5-.., pitch: 5 mm, connection type: Push-in spring connection, Driver/PCB Connection Direction: 0°, Clamping Hook: - Clamping Hook, Plug-in System: HSC 2.5, Locking: Without, Fastening Type: Without, Packing Type: Boxed Packaging, Normally Spring-Loaded Contact Color: Orange

More details


Housing (HS)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


Related products

More info



Technical data

Item Properties
Product TypePrinted Circuit Board Connector
Product FamilyHSCP-SP 2.5-..
Number of poles2
Step5 mm
Number of connections4
Number of rows2
Number of potentials2

Electrical Properties
Nominal Current IN8 A
Nominal voltage UN320 V
Degree of pollution3
Contact resistance1.7 mΩ
Sizing voltage (III/3)250 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)600 V
Dimensioning transient voltage (II/2)4 kV

Connection data
Connection technology
Connector SystemHSC 2.5
Nominal Section2.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemwithout
Clamping flangewithout
Connecting Conductors
Connection typePush-in spring connection
Connection Direction Driver/PCB0 °
Rigid conductor section0.2 mm² ... 1.5 mm²
Flexible conductor section0.2 mm² ... 2.5 mm²
AWG Conductor Section24 ... 16
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 1.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 1.5 mm²
Male gauge a x b / Diameter2.4 mm x 1.5 mm / 1.9 mm
Peel Length10 mm

Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Material data - housing
Color (Housing)Blue (5015)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Material data: drive element
Color (Drive Element)Deep Orange (2011)
Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112275
Flammability class according to UL 94V0

Dimensions
Dimension Schemebkgvpdefhs.jpg
Step5 mm
Width [w]18.8 mm
Height [h]10.9 mm
Length [l]21.6 mm

assembly
Connection typeTechnology features
Processing Instructions
Moisture Sensitive LevelMSL 1
Classification Temperature Tc260 °C
Welding cycles. by reflux3

Notes
Installation indication:Look at the series datasheet in the download area.
Safety Indication
Safety NotesWARNING: Connectors should not be plugged in or unplugged under load. Failure to comply and improper use can result in property damage and personal injury.
• WARNING: Serve only products in perfect condition. Products should be checked regularly for damage. Remove defective products immediately. Replace damaged products. It is not possible to repair them.
• WARNING: only qualified personnel specialized in electrical engineering can install and use the product, always taking into account the following safety indications. Specialized personnel must be familiar with the fundamentals of electrical engineering. You must be able to identify and avoid hazards. The corresponding symbol on the packaging indicates that personnel specialized in electrical engineering are required for installation and operation.
• The item is intended as an unencapsulated plug for mounting in a housing.
• Use connectors only fully plugged in.

Mechanical testing
Connecting Conductors
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Checking for damage to conductors and loosening
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Repeated connection and disconnection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Tensile Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / rigid / > 40 N
2.5 mm² / flexible / > 50 N
Forces when plugging in and unplugging
ResultApproved Test
Number of cycles25
Plug-in force approx.4 N
Power when unplugging by pole approx.3 N
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Polarization & Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultApproved Test
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test

Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level4.8 kV
Contact Resistance R11.7 mΩ
Contact Resistance R21.9 mΩ
Plug Cycles25
Insulation Resistance Adjacent Poles> 5 MΩ
Climate Essay
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion fatigue0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168 h
Bearable AC voltage1.39 kV
Environmental conditions
Ambient Temperature (Service)-40 °C ... 105 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 55 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C

Electrical Testing
Thermal Test | Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested32
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Creepage Lines & Air Isolation Distances |
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)250 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)3.2 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)600 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3.2 mm

Packaging Information
Type of packagingBoxed Packaging
Outer packing typeCardboard
