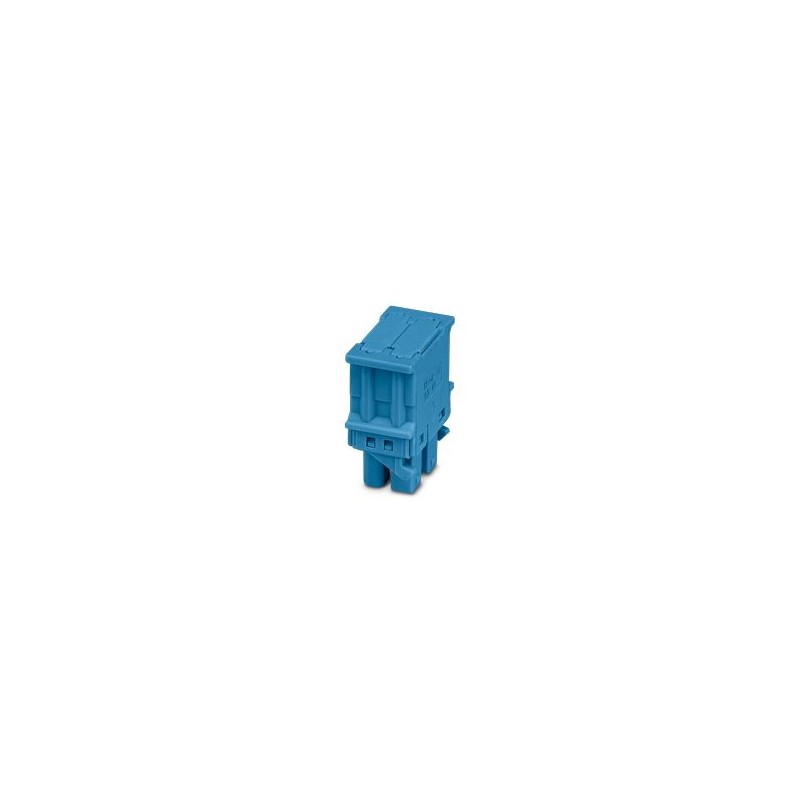

HSCP-SP 2,5-1U00-5015 1493476 PHOENIX CONTACT Printed circuit board connector, nominal cross-section: 2.5 mm..
HSCP-SP 2,5-1U00-5015
1493476
PHOENIX_CONTACT
500
Printed circuit board connector, nominal cross-section: 2.5 mm2, colour: light grey, nominal current: 8 A, nominal voltage (III/2): 300 V, number of potentials: 0, number of rows: 2, number of poles: 0, number of connections: 0, article family: HSCP-SP 2.5-.., pitch: 5 mm, number of solder pins per potential: 0, clamping hook: - Clamping hook, plug-in system: HSC 2.5, locking: without, clamping type: without, packaging type: boxed packed, Blank plug
PCB connector, nominal cross-section: 2.5 mm², colour: blue, nominal current: 8 A, nominal voltage (III/2): 300 V, surface contacts: Tin, number of potentials: 0, number of rows: 2, number of poles: 0, number of connections: 0, article family: HSCP-SP 2.5-.., pitch: 5 mm, number of solder pins per potential: 0, Clamping Hook: - Clamping Hook, Plug-in System: HSC 2.5, Locking: Without, Fastening Type: Without, Packing Type: Boxed, Blank Cap
Connectors > Cable connector
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Printed Circuit Board Connector |
| Product Family | HSCP-SP 2.5-.. |
| Number of poles | 0 |
| Step | 5 mm |
| Number of connections | 0 |
| Number of rows | 2 |
| Number of potentials | 0 |
| Number of Solder Pins Per Potential | 0 |
| Nominal Current IN | 8 A |
| Nominal voltage UN | 300 V |
| Degree of pollution | 3 |
| Sizing voltage (III/3) | 250 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 300 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 600 V |
| Dimensioning transient voltage (II/2) | 4 kV |
| Connection technology | |
| Connector System | HSC 2.5 |
| Nominal Section | 2.5 mm² |
| Blockade | |
| Locking system | without |
| Clamping flange | without |
| Connecting Conductors | |
| Rigid conductor section | 0.2 mm² ... 1.5 mm² |
| Flexible conductor section | 0.2 mm² ... 2.5 mm² |
| AWG Conductor Section | 24 ... 16 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Male gauge a x b / Diameter | 2.4 mm x 1.5 mm / 1.9 mm |
| Peel Length | 10 mm |
| Material data - housing | |
| Color (Housing) | Light Grey (7035) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Step | 5 mm |
| Width [w] | 18.8 mm |
| Height [h] | 10.9 mm |
| Length [l] | 21.6 mm |
| Processing Instructions | |
| Moisture Sensitive Level | MSL 1 |
| Classification Temperature Tc | 260 °C |
| Welding cycles. by reflux | 3 |
| Installation indication: | Look at the series datasheet in the download area. |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 105 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 55 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 250 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 3.2 mm |
| Sizing Insulation Voltage (III/2) | 300 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 3 mm |
| Sizing Insulation Voltage (II/2) | 600 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 3.2 mm |
| Type of packaging | Boxed Packaging |
| Outer packing type | Cardboard |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Number of poles (EF001391) | 0 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 300 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable cable type (EF006816) | Tubular cable |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
