HC-STA-D25-BCSFS-PLR-BK 1424401 PHOENIX CONTACT Protective covers
HC-STA-D25-BCSFS-PLR-BK
1424401
PHOENIX_CONTACT
Protective covers

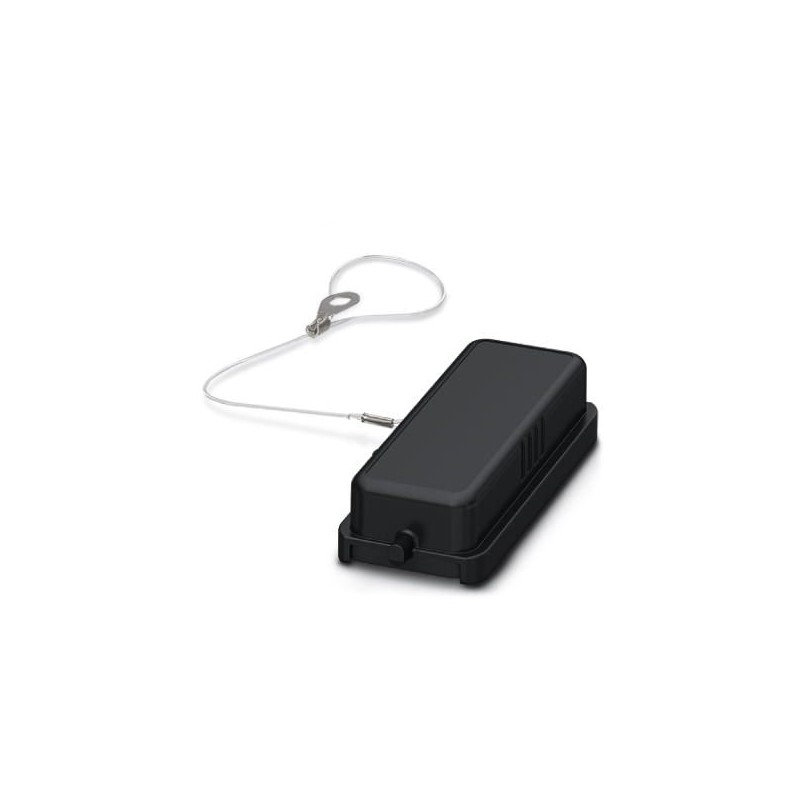

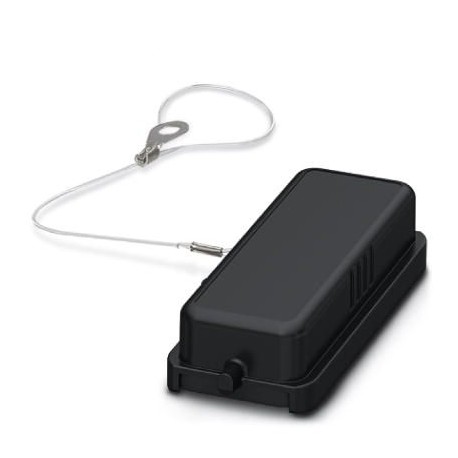

D25 protective cap, for longitudinal flange, protective cap material: PA, height: 19 mm
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424401 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 525 (C-2-2017) |
| GTIN | 4055626371412 |
| Weight per Piece (excluding packing) | 70.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Ambient temperature (operation) | -20 °C ... 100 °C |
General
| Size | D25 |
|---|---|
| Housing type | Protective cover |
| Color | black |
| Locking type | for single locking latch |
| Material, protective cover | PC |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | Double eyelet for mounting on a cable / below screw head |
| Connection | Plastic protective cover for short-term protection |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
