HC-B 48-SML-100/O2M32 1460228 PHOENIX CONTACT Housing, socket, flanged longitudinal, height 100 mm, without ..
HC-B 48-SML-100/O2M32
1460228
PHOENIX_CONTACT

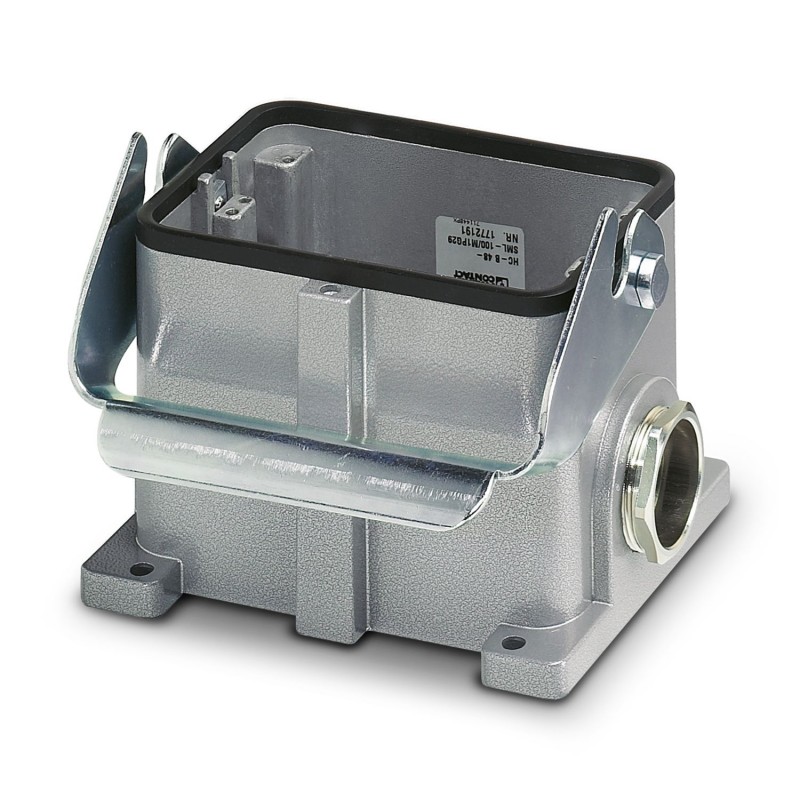

Housing, socket, flanged longitudinal, height 100 mm, without cable glands, 2 x M32
Box mounting base, with single locking latch, height: 100 mm, without screw connection, 2 x M32
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | For contact inserts HC-B48, DD216, M |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Type | B48 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M32 |
| Cable outlet | lateral |
| Pg screw connection | none |
| Dimensional drawing |  |
| Width | 120 mm |
| Height | 100 mm |
| Length | 145 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Type of the screw connection | 2x M32 |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
