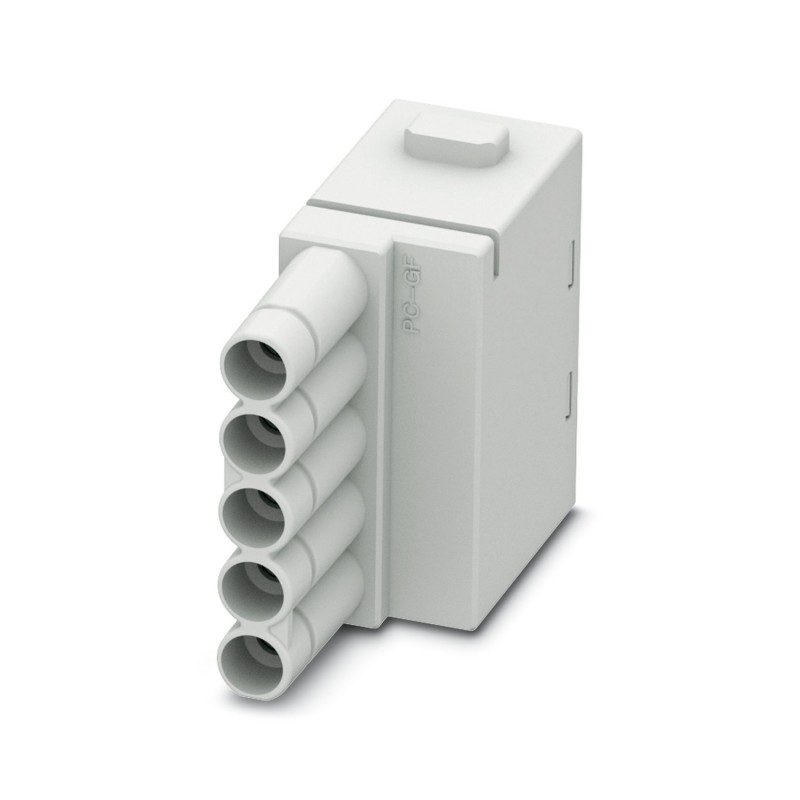

HC-M-05L-TPT-F 1423962 PHOENIX CONTACT Contact insert module
HC-M-05L-TPT-F
1423962
PHOENIX_CONTACT
Contact insert module
Contact insert module, number of poles: 5, power contacts: 5, control contacts: 0, number of connections per pole: 2, Female, Push-in connection, 230 V/400 V, 16 A, 0.25 mm² ... 1.5 mm², Application: Power
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Use only flexible conductors with ferrule (in conjunction with CRIMPFOX 6 only) |
| General | Connectors may be operated only when there is no load/voltage. |
| General | For HEAVYCON housing type B6 to B48, HC-M-B...MF-... module carrier frame required |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Product type | Modular contact insert |
| Series | HC-M-05-T |
| Application | Power |
| Number of positions | 5 |
| Connection profile | 5 |
| Contact numbering | 1 - 5 |
| Number of connections per position | 2 |
| Number of module slots | 1 |
| No. of power contacts | 5 |
| No. of control contacts | 0 |
| Contact material type | rolled |
| Data management status | |
| Article revision | 04 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection technology | Push-in connection |
| Number of connections per position | 2 |
| Conductor connection | |
| Conductor cross section | 0.25 mm² ... 1.5 mm² |
| Connection cross section AWG | 24 ... 16 |
| Stripping length of the individual wire | 8 mm ±1 mm |
| Dimensional drawing |  |
| Width | 34 mm |
| Height | 38 mm |
| Length | 14.6 mm |
| Mechanical characteristics | |
| Contact diameter | 2.5 mm |
| Rated voltage (III/3) | 230 V (Conductor-PE) |
| 400 V (Conductor-Conductor) | |
| Rated voltage for power contacts | 230/400 V |
| Rated surge voltage | 4 kV |
| Rated current | 16 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Constructional and testing regulations | DIN EN 61984 |
| DIN EN 60664 | |
| Tests | DIN EN 61984 |
| DIN EN 60664 | |
| Testing | |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 5 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 5 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 230 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Other |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Material of contact surface (EF004020) | Silver |
| Material of contact insert (EF008521) | Other |
| Material contact (EF007544) | Copper |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 14.6 mm |
| Height (EF000040) | 34.1 mm |
| Depth (EF000049) | 38.3 mm |
