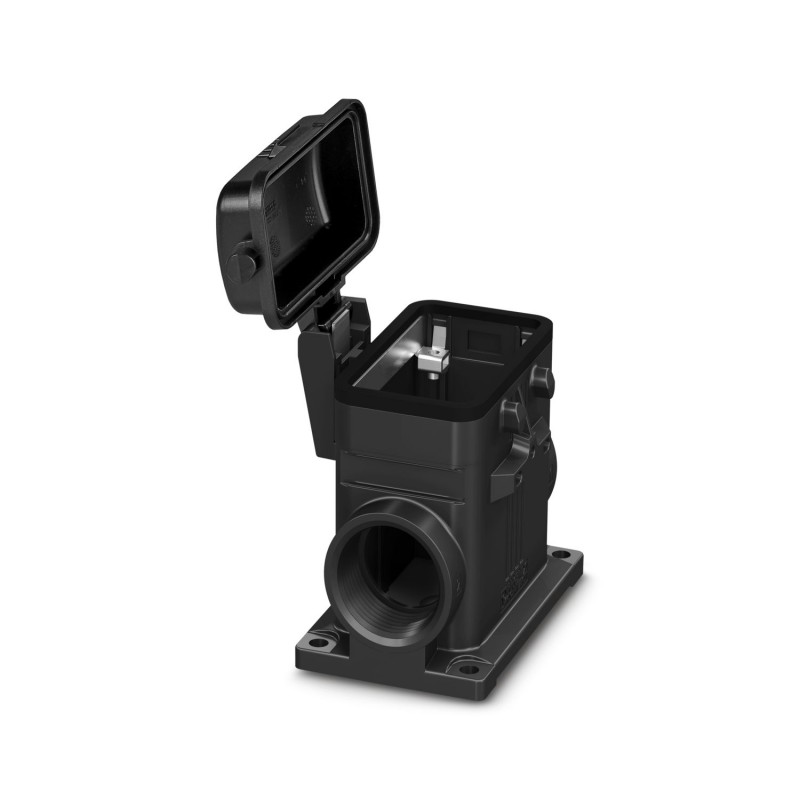

HC-EVO-B10-SHFDC-2SSM25-PLRBK 1421320 PHOENIX CONTACT Housing
HC-EVO-B10-SHFDC-2SSM25-PLRBK
1421320
PHOENIX_CONTACT
Housing
B10 socket housing, for cross flange, material: PA, protective cap material: PC, cable outlets: 2, side, 2x M25, height: 74 mm, cable gland: without, protective cover: yes, Standard, including 2x reduction adapters
Surface mounting housing B10, for double locking latch, material: PA 6.6-FR, protective cover material: PC, cable outlets: 2, lateral, 2x M25, height: 74 mm, cable gland: none, protective cover: yes, Standard, including 2x reducing adapter
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Product family | HC-EVO-B |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M25 |
| Type | Tall design |
| Protective cover | yes |
| Cable outlet | lateral |
| Pg screw connection | none |
| Data management status | |
| Article revision | 03 |
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 74 mm |
| Length | 93 mm |
| Hole diameter | 5.5 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Protective cover) | |
| Seal material | NBR |
| Housing material | PA 6.6-FR |
| Material, protective cover | PC |
| Mechanical data | |
| Type of the screw connection | 2x M25 |
| Locking type | Pin |
| Tightening torque | 2 Nm ... 3 Nm (for M5 mounting screws on the surface-mount housing) |
| Assembly note | Two plastic reductions M32 to M25 are provided |
| One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
| Ambient conditions | |
| Degree of protection | IP66 (when plugged in) |
| IP54 (with closed protective cover) | |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 57 mm |
| Height (EF000040) | 74 mm |
| Depth (EF000049) | 93 mm |
| Type of housing (EF006980) | Socket case |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Sideways |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | Yes |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 2 |
| Type of locking (EF000208) | Double locking levers |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK09 |
