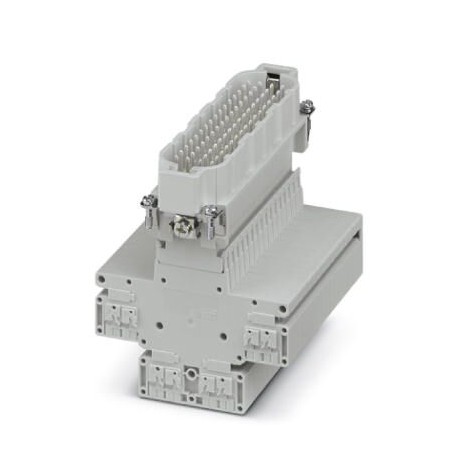

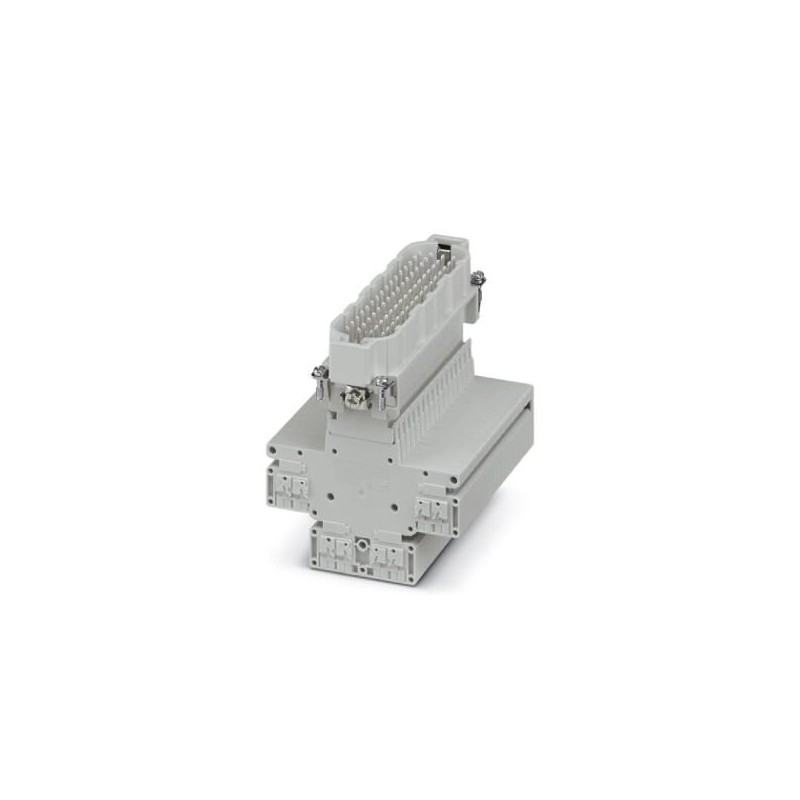

HC-D64-PTT-M 1423346 PHOENIX CONTACT Terminal adapter HC-D64-PTT-M 1423346
HC-D64-PTT-M
1423346
PHOENIX_CONTACT
Terminal adapter - HC-D64-PTT-M - 1423346
Terminal adapter, number of poles: 64+PE, number of connections per pole: 2, Male, Push-in connection, 250 V, 10 A, 0.5 mm² ... 1.5 mm²
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Terminal adapter, number of positions: 64+PE, Pin, Push-in connection, 250 V, 10 A, 0.5 mm² ... 1.5 mm²
Key Commercial Data
| Orderkey | 1423346 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626340333 |
| Custom tariff number | 85366990 |
General
| Note | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type |
|---|---|
| For solid conductors or stranded conductors with ferrules | |
| Connection method | Push-in connection |
| Number of positions | 64+PE |
| Conductor cross section | 0.5 mm² ... 1.5 mm² |
| Connection cross section AWG | 20 ... 16 |
| Stripping length of the individual wire | 10 mm |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag |
| Contact carrier material | PA |
Electrical characteristics
| Rated voltage (III/3) | 250 V |
|---|---|
| Rated surge voltage | 6 kV |
| Rated current | 10 A |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261200 |
|---|---|
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440205 |
| eCl@ss 9.0 | 27440205 |
ETIM
| ETIM 6.0 | EC000438 |
|---|---|
| ETIM 7.0 | EC000438 |
| Feature Name | Feature Value |
|---|---|
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Pin |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 10 A |
| Rated voltage (EF000228) | 250 V |
| Rated surge voltage (EF002993) | 6 kV |
| Type of electric connection (EF003961) | Spring clamp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| With protective conductor (EF007468) | Yes |
