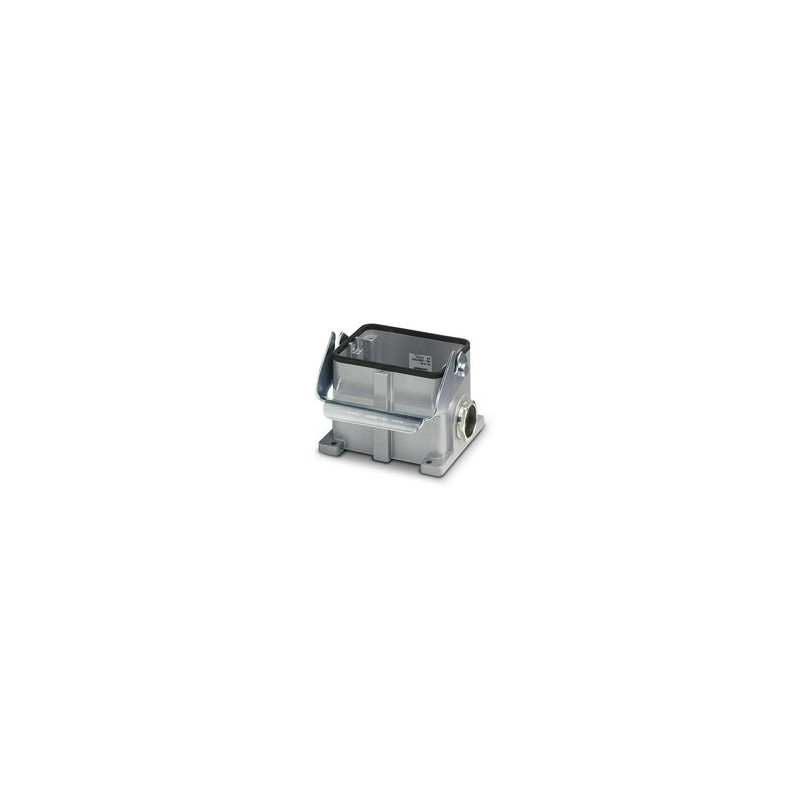

HC-B 48-SMLD-100/O2PG36 1460037 PHOENIX CONTACT Housing, socket, flanged longitudinal, with protective cover..
HC-B 48-SMLD-100/O2PG36
1460037
PHOENIX_CONTACT
Housing, socket, flanged longitudinal, with protective cover, height 100 mm, without connection by screw, 2x Pg36
Box mounting base, with single locking latch, with protective cover, height: 100 mm, without screw connection, 2 x Pg36
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | For contact inserts HC-B48, DD216, M |
| Type | B48 |
| Product type | Housing with locking latch |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x Pg36 |
| Housing type | Box mounting bases |
| Cable outlet | lateral |
| Pg screw connection | none |
| Dimensional drawing |  |
| Width | 120 mm |
| Height | 100 mm |
| Length | 145 mm |
| Seal material | NBR |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | PA |
| Locking latch material | Steel, galvanized |
| Housing material | die-cast aluminum |
| Mechanical data | |
| Type of the screw connection | 2x Pg36 |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP65 (When plugged in) |
| IP54 (with closed protective cover) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
