HBUS 107,6-16P-1S DEV-KIT BK 2202545 PHOENIX CONTACT Plug
HBUS 107,6-16P-1S DEV-KIT BK
2202545
PHOENIX_CONTACT
Plug

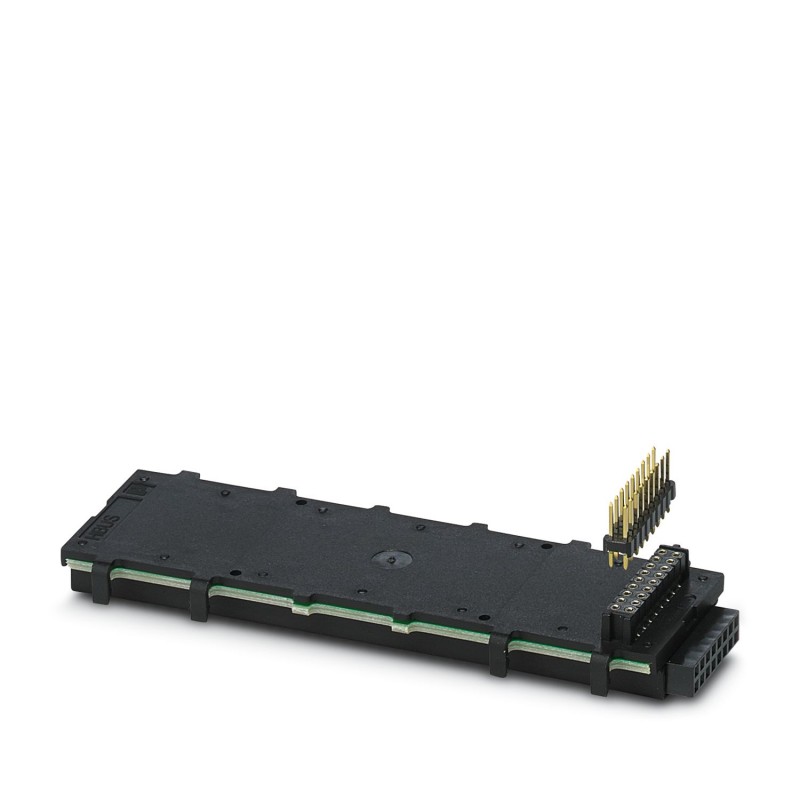

Bus connector for connecting BC modules on the rail; suitable for BC DEV-KITS, contains HBUS 107.6 and pinstrip
Connectors > Cable connector
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | DIN rail connector |
| Product family | BC 107,6.. |
| Number of positions | 16 |
| Pitch | 2.54 mm |
| Data management status | |
| Article revision | 02 |
| Nominal current IN | 3 A (Total current of 25 A max.) |
| Contact resistance | 23.9 mΩ |
| Rated voltage (III/3) | 30 V |
| Rated surge voltage (III/3) | 0.8 kV |
| Rated voltage (III/2) | 30 V |
| Rated surge voltage (III/2) | 0.8 kV |
| Rated voltage (II/2) | 100 V |
| Rated surge voltage (II/2) | 0.8 kV |
| Material data - contact | |
| Contact material | Cu alloy |
| Surface characteristics | Completely gold-plated |
| Material data - housing | |
| Color (Housing) | black (9005) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| material specifications - connector | |
| Color () | () |
| Pitch | 2.54 mm |
| Width [w] | 107.6 mm |
| Mounting type | DIN rail mounting |
| Visual inspection | |
| Specification | IEC 60512-1-1:2002-02 |
| Result | Test passed |
| Dimension check | |
| Specification | IEC 60512-1-2:2002-02 |
| Result | Test passed |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 20 m/s² |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Durability test | |
| Specification | IEC 60512-9-1:2010-03 |
| Impulse withstand voltage at sea level | 0.91 kV |
| Contact resistance R1 | 23.9 mΩ |
| Contact resistance R2 | 24 mΩ |
| Insertion/withdrawal cycles | 25 |
| Climatic test | |
| Specification | DIN 50018:2013-05 |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Thermal stress | 100 °C/168 h |
| Power-frequency withstand voltage | 0.55 kV |
| Glow-wire test | |
| Specification | IEC 60695-2-10:2013-04 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 150 m/s² |
| Shock duration | 11 ms |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Relative humidity (storage/transport) | 80 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Air clearances and creepage distances | |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Rated insulation voltage (III/3) | 30 V |
| Rated surge voltage (III/3) | 0.8 kV |
| minimum clearance value - non-homogenous field (III/3) | 0.8 mm |
| minimum creepage distance (III/3) | 1.3 mm |
| Rated insulation voltage (III/2) | 30 V |
| Rated surge voltage (III/2) | 0.8 kV |
| minimum clearance value - non-homogenous field (III/2) | 0.2 mm |
| minimum creepage distance (III/2) | 0.53 mm |
| Rated insulation voltage (II/2) | 100 V |
| Rated surge voltage (II/2) | 0.8 kV |
| minimum clearance value - non-homogenous field (II/2) | 0.2 mm |
| minimum creepage distance (II/2) | 0.71 mm |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Modular spacing contacts (EF007326) | 2.54 mm |
| Modular spacing connections (EF006827) | 2.54 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 3 A |
| Rated voltage (EF000228) | 30 V |
| Rated surge voltage (EF002993) | 0.8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable cable type (EF006816) | Tubular cable |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
