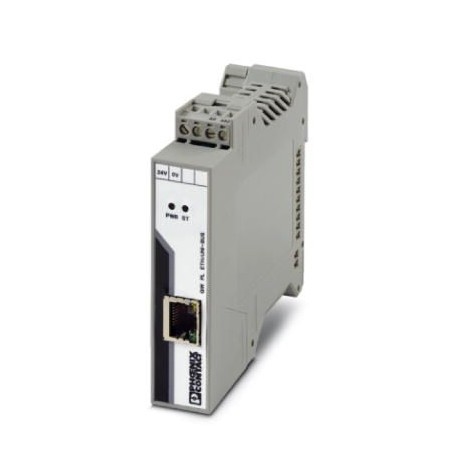

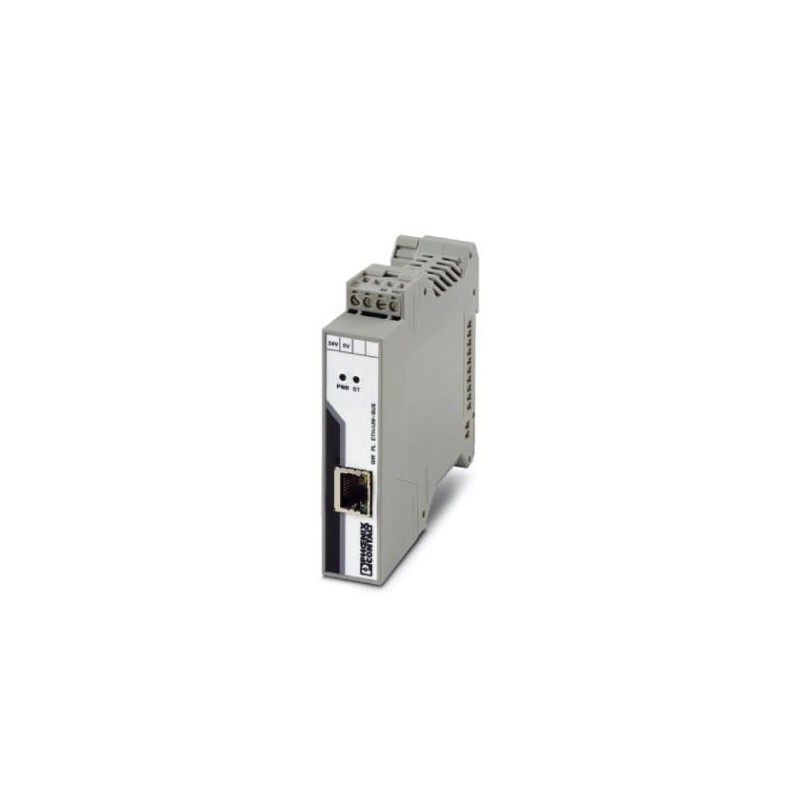

GW PL ETH/UNI-BUS 2702233 PHOENIX CONTACT Ethernet HART multiplexer
GW PL ETH/UNI-BUS
2702233
PHOENIX_CONTACT
Ethernet HART multiplexer
Ethernet headend station for HART modular gateway. Connection of up to five GW PL HART...-BUS expansion modules for communication with up to 40 HART devices. Compatible with Modbus TCP, OPC UA, PROFINET, HART IP, FDT/DTM and Arcom.
PLC's > PLC communication module
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702233 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 521 (C-6-2017) |
| GTIN | 4055626067049 |
| Weight per Piece (excluding packing) | 216.900 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| -40 °F ... 158 °F | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
General
| Test voltage data interface/power supply | 500 V AC |
|---|---|
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Mounting position | any |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Net weight | 216.9 g |
| Color | gray |
| MTBF | 292 Years (Siemens model SN29500, temperature 40°C, env. factor 1.5 and stress factor 50%) |
| Conformance | CE-compliant |
Power supply
| Supply voltage range | 19.2 V DC ... 30 V DC |
|---|---|
| Max. current consumption | 63 mA (at 24 V DC) |
| Typical current consumption | 46 mA (at 24 V DC) |
Serial interface
| Interface 1 | Bus |
|---|---|
| Transmission length | ≤ 100 m |
| Output nominal voltage | 24 V DC |
| Maximum output current | 3.937 A (per station) |
| Interface 2 | Modbus/TCP, HART IP, PROFINET |
| Interface | Ethernet 10/100Base T |
| Connection method | RJ45 socket, auto negotiation and auto crossing |
| Protocols supported | Modbus/TCP, HART IP, PROFINET |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Conformance | CE-compliant |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
| ATEX | II 3 G Ex nA IIC T4 Gc DEMKO 17 ATEX 1749X |
| IECEx | IECEx ULD 17.0020X Ex nA IIC T4 Gc |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Redundancy (EF003156) | No |
| With potential separation (EF003272) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 114.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE AUTOMATION PHOENIX EN.pdf | 35 Mbytes |
|
