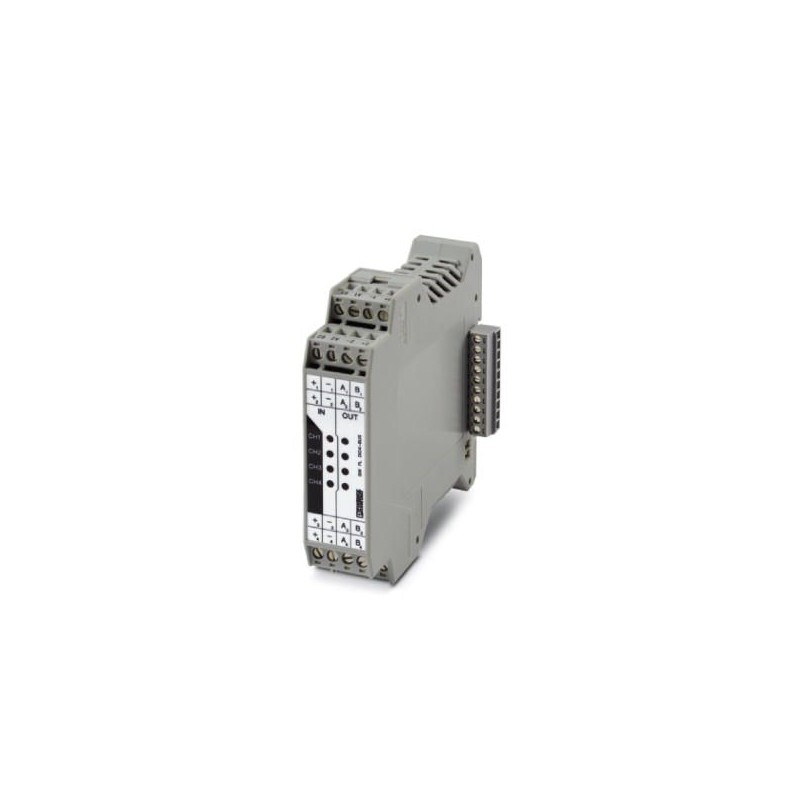

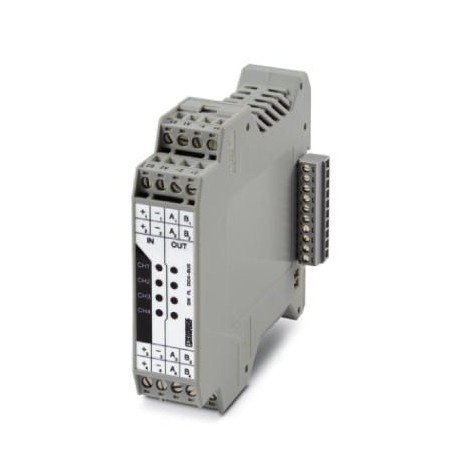

GW PL DIO4-BUS 2702237 PHOENIX CONTACT Protocol converter
GW PL DIO4-BUS
2702237
PHOENIX_CONTACT
Protocol converter
Module for 4-channel digital input and 4-channel digital output with screw connection. For use with Modbus and OPC UA protocols.
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702237 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 521 (C-6-2017) |
| GTIN | 4055626067087 |
| Weight per Piece (excluding packing) | 178.400 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| -40 °F ... 158 °F | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
General
| Test voltage data interfaces | 500 V AC |
|---|---|
| Test voltage data interface/power supply | 500 V AC |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Mounting position | any |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Net weight | 178.4 g |
| Color | gray |
| MTBF | 406 Years (Siemens model SN29500, temperature 40°C, env. factor 1.5 and stress factor 50%) |
| Conformance | CE-compliant |
Power supply
| Supply voltage range | 19.2 V DC ... 30 V DC (supplied from the bus) |
|---|---|
| Typical current consumption | 15 mA (at 24 V DC) |
Serial interface
| Interface 1 | Digital inputs |
|---|---|
| Interface | Digital |
| No. of ports | 4 |
| Connection method | Screw connection |
Digital outputs
| Output name | Digital output |
|---|---|
| Number of outputs | 4 |
| Maximum switching voltage | 30 V DC |
| Max. switching current | 500 mA |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Conformance | CE-compliant |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
| ATEX | II 3 G Ex nA IIC T4 Gc DEMKO 17 ATEX 1749X |
| IECEx | IECEx ULD 17.0020X Ex nA IIC T4 Gc |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
Classifications
