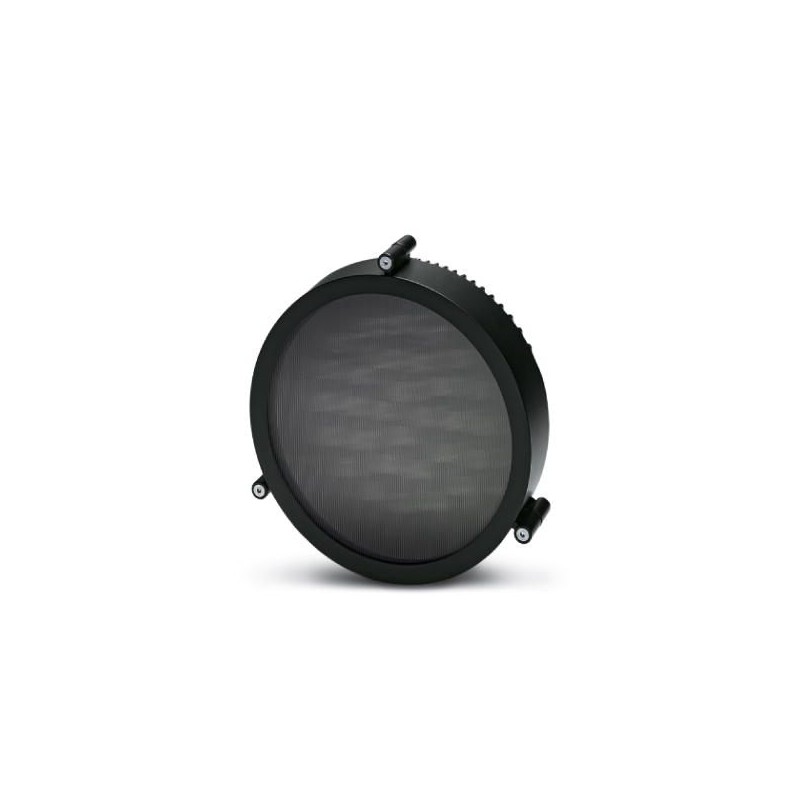

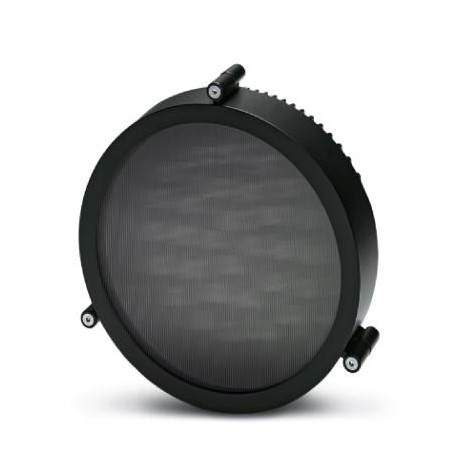

CSD-SL 300 RD 30X30 1051076 PHOENIX CONTACT Signal lamp
CSD-SL 300 RD 30X30
1051076
PHOENIX_CONTACT
Signal lamp
Signal light, 24 VDC, IALA red Optimum, emission angle: 30 °, diameter: 272 mm, protection index: IP65/IP67, Communication interface
Optical and acoustic signalling equipment > Monitored LED indicator luminaire
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1051076 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626669663 |
| Weight per Piece (excluding packing) | 3,860.000 g |
| Custom tariff number | 85308000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP65/IP67, when installed |
General
| Assembly instructions | Use of stainless steel fittings (corrosion-resistant) |
|---|---|
| Net weight | 3860 g |
| Diagnostics messages | LEDs; temperature, current, voltage, etc. Yes |
| Mains failure, communication failure Failsafe | |
| Design | Operating hours counter |
| Inrush current | max. 36 A () |
Power supply for module electronics
| Connection method | M17 hybrid connectors with SPEEDCON locking system |
|---|---|
| Number of positions | 8 |
| Supply voltage | 24 V DC (DC) |
| Current consumption | max. 1.95 A (red LEDs) |
| Power consumption | max. 55 W (red LEDs) |
Light properties
| Source of light type | LED |
|---|---|
| Number of LEDs | 30 (according to IALA recommendation E200-1 and CIE 1931) |
| Service life, lighting appliance | 50000 h |
| Light color | IALA red, optimum |
| Color temperature / wavelength | 620...645 nm |
| Color class | C3 (EN 12966) |
| Luminance | L3 (EN 12966) |
| Luminance ratio | R3 (EN 12966) |
| Phantom light class | 5 (EN 12368) |
| Luminous intensity | 4482 Cd |
| Can be dimmed | Yes, in 256 steps |
| Emission angle | 30° x 30° |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
